Blogs

•

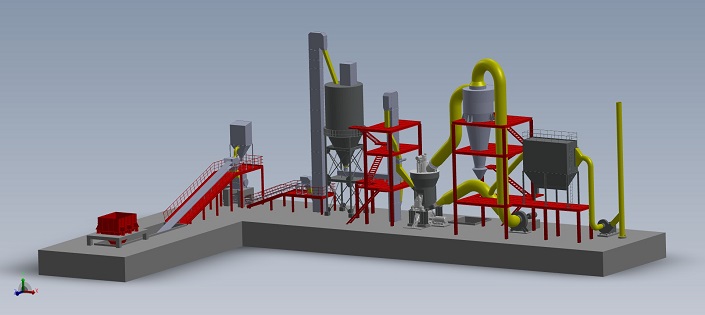

  Maximizing Profit: How VRMs Cut Your Operating Costs

  Feb 13, 2026

  1. Introduction: The Bottom-Line Impact The Challenge: Traditional grinding mills (like ball mills) are energy hogs and maintenance intensive. The VRM Solution: Vertical Roller Mills are designed from the ground up for efficiency. They lower costs in four key areas: Energy, Maintenance, Capital Expenditure (Capex), and Product Quality (which impacts downstream profit).   2. Cost Reduction #1: Energy Efficiency (The Biggest Saver) The 30-50% Rule: VRMs typically consume 30% to 50% less electrical energy than traditional ball mills. Why? The grinding principle is more efficient. It uses a combination of pressure and shear rather than impact and attrition (which generates heat and noise waste). Impact: Directly lowers your monthly electricity bill—the single largest operating cost in a cement or mining plant.   3. Cost Reduction #2: Lower Maintenance & Wear Fewer Moving Parts: A VRM is a simpler, more compact machine than a ball mill system (which requires a heavy gearbox, many liners, and steel balls). Longer Wear Life: Grinding rollers and table segments are designed for long life and can be hard-faced (rebuilt) multiple times, unlike ball mill liners which must be completely replaced. No Grinding Media Cost: You never have to buy steel balls again. Impact: Reduces downtime and the cost of replacement parts and labor.   4. Cost Reduction #3: Integrated Drying (Process Simplification) The Built-In Dryer: VRMs use hot gas flowing through the mill to dry material while it is being ground. Why this saves money: It eliminates the need for a separate external rotary dryer. Impact: Lower capital expenditure (one machine does the work of two) and less floor space required.   5. Cost Reduction #4: Consistent Product Quality (The "Hidden" Profit) Precise Control: The built-in classifier (separator) allows for very precise control of product fineness. The Result: For cement: Higher strength development (allows you to use less clinker, which is expensive to make). For raw meal: Better burnability in the kiln. Impact: A better product means lower overall plant costs and potentially a higher selling price.   6. Summary: The VRM Advantage Lower Power Bills Less Downtime Simpler Process Better Product Quality   Final Message: Investing in a Vertical Roller Mill isn't just buying a machine; it's investing in a lower cost structure and higher profitability for the life of your plant.

  hot Tags : Vertical Roller Mill High Efficiency vertical mill High Capacity Mineral Grinding Equipment industrial gypsum vertical mill
•

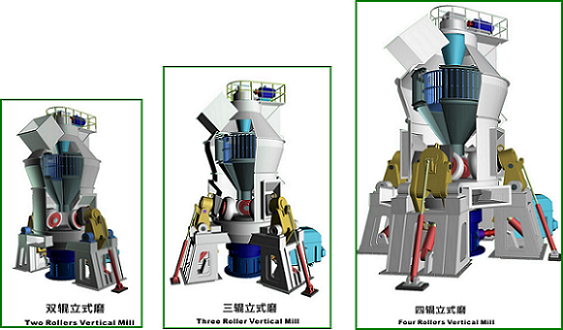

  How to Choose the Right Vertical Roller Mill

  Feb 13, 2026

  Choosing the right Vertical Roller Mill (VRM) is a critical decision that affects your plant's efficiency, product quality, and operating costs. Since you previously inquired about air knockers (used on hoppers/silos), I assume you are looking at the entire system, likely for grinding raw materials, coal, or cement clinker. Here is a step-by-step guide in English on how to select the appropriate Vertical Roller Mill:   1. Define Your Application (Material Type) VRMs are versatile, but they are typically optimized for specific materials. Cement Raw Meal: Grinding limestone, clay, shale. Requires high drying capacity if material is wet. Cement Clinker: Grinding clinker into finished cement. This requires higher grinding pressure and is harder on the mill than raw grinding. Slag (GGBFS): Grinding granulated blast furnace slag. This requires a very high grinding force and special table/bowl design. Mills for slag are often larger and more robust. Coal / Petcoke: Requires an explosion-proof design (inert gas, explosion vents).   2. Key Technical Parameters to Consider You must provide the manufacturer with these specifications: Throughput (Capacity): How many tons per hour do you need? (e.g., 200 tph). Feed Moisture: How wet is the incoming material? This determines the mill's drying capacity (gas flow and temperature). Feed Size: What is the maximum size of the chunks entering the mill? Product Fineness: How fine does the final product need to be? Example: Raw meal: 12-16% R 90µm (residue on 90-micron sieve). Example: Cement: 3000-5000 cm²/g (Blaine).   3. Mill Configuration Different manufacturers have different philosophies. You need to choose based on your maintenance preferences: Grinding Table & Rollers: Look at the tyre (tire) design. Integrated tyres: Cheaper to replace, but require welding for hard-facing. Segmented liners: Easy to replace individual pieces without welding. Hydraulic System: The system that applies pressure to the rollers. Ensure it has an accumulator to absorb vibration and maintain consistent pressure. Separator (Classifier): This is the "brain" of the mill regarding fineness. Static separators: Old tech, low efficiency. Dynamic separators (High-efficiency): Highly recommended. Allows you to adjust fineness while running and improves energy efficiency.   4. Peripheral Equipment (The System) Air Knocker: Since you asked about them earlier, ensure the feed bin and ducts are equipped with air cannons/knockers to prevent blockages of sticky material entering the mill. Mill Fan: Must be sized correctly to provide sufficient airflow to lift the product to the separator. Dust Collector (Baghouse): Must handle the volume of air and fine dust.   5. Checklist of Questions to Ask Suppliers When comparing quotes, ask these specific questions to ensure you are comparing "apples to apples": Specific Power Consumption: (kWh/t). The lowest is usually best. Noise Levels: (dB). VRMs can be loud; ensure it complies with local regulations. Vibration Limits: What is the guaranteed vibration level during start-up and normal operation? Wear Part Life: How many operating hours can I expect from the table liners and rollers before needing to replace or re-weld them? Maintenance: How difficult is it to change a roller? Does the mill have a swing-out system so we can service rollers without a huge crane?   Choose a mill that is "over-dimensional" just enough—meaning it should run at 80-90% of its maximum capacity for peak efficiency, not at 99%. A mill running flat-out will have high wear and low reliability.

  hot Tags : Industrial vertical roller mill vertical mill for limestone powder High Capacity Limestone Grinding System high efficiency Vertical Roller Mill
•

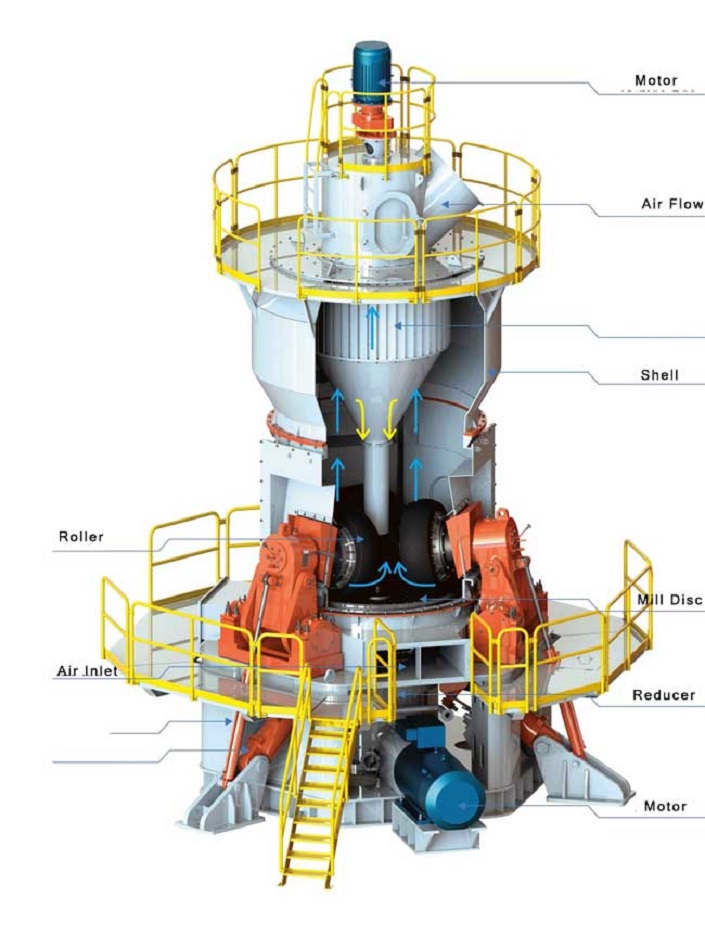

  Working Principle of Vertical Mill

  Feb 13, 2026

    The working principle of a vertical mill (vertical roller mill) can be summarized as follows: The material is crushed and ground into fine powder through the rolling and grinding action of the grinding rollers on the rotating grinding table, while the airflow carries the qualified fine powder out of the mill.   1. Feeding and Material Accumulation The material (such as gypsum, limestone, coal, etc.) enters the mill through the feeding port at the top and falls onto the center of the rotating grinding table. Under the action of centrifugal force, the material moves toward the edge of the grinding table and enters the area under the grinding rollers for compression.   2. Grinding and Crushing This is the core step, achieving material crushing and grinding through multiple mechanisms: Rolling and Compression: The grinding table is driven by a motor to rotate, while the grinding rollers rotate under the friction of the material. The hydraulic system applies tremendous pressure to the grinding rollers, crushing the material beneath them. Layer Grinding: The material forms a "material bed" on the grinding table. As the rollers roll over, large particles are crushed and further ground into fine powder under continuous compression and inter-particle friction.     3. Separation and Circulation   Airflow Conveying: High-speed hot air (or ordinary air) injected from the annular area around the grinding table blows the ground material upward. Classification and Screening: The airflow carries the material into the classifier (a rotating cage-type rotor) at the top of the mill. Qualified Fine Powder: Particles that meet the fineness requirements can pass through the gaps of the classifier blades and are carried by the airflow to subsequent dust collection equipment (such as a bag filter) for collection as the final product. Unqualified Coarse Powder: Coarser particles are blocked by the classifier rotor and fall back to the center of the grinding table to be re-ground together with newly fed material, forming an "external circulation" or "internal circulation."   4. Drying (if required) If the material needs to be dried during grinding (e.g., when processing gypsum or coal), the air introduced into the mill will be hot air. While conveying and classifying the material, the hot air also efficiently evaporates moisture from the material. A vertical mill can simultaneously complete the three processes of grinding, drying, and classification.

  hot Tags : vertical roller mill for gypsum limestone vertical roller mill high efficiency Grinding Machine Industrial vertical roller mill
