Industrial Bentonite Grinding Vertical Mill

Industrial Bentonite Grinding Vertical Mill

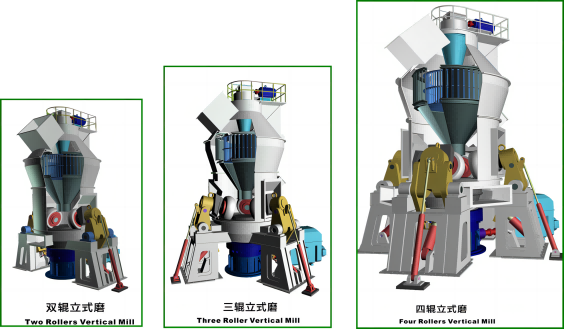

Our Bentonite Vertical Mill is a high-performance, stable, and energy-efficient grinding equipment specifically developed for bentonite processing, integrating drying, grinding, classifying, and conveying into a single integrated unit. Designed with industrial-grade durability and operational stability at its core, it is widely used in the production of bentonite powder for industries such as construction, chemical engineering, environmental protection, and foundry, providing reliable and consistent processing solutions for global B2B buyers.

Product Features

1. Energy-Efficient

   Uses 40–50% less energy than ball mills; supports off-peak use.

2. Easy & Low-Cost Maintenance

   Swing-out hydraulic arm, reversible roller sleeves, durable parts, no-load start, and remote operation via Siemens PLC.

3. Low Investment Cost

   Integrates multiple processes; 50% smaller footprint than ball mills; outdoor installation cuts civil costs.

4. Stable Product Quality

   Short retention time ensures consistent, uniform particles with narrow size distribution.

5. High Reliability

   Roller limiter prevents vibration; advanced seal enhances safety and reduces oxygen.

6. Eco-Friendly Operation

   Low noise, fully sealed negative pressure system—zero dust leakage.

HVM type high-fineness vertical grinding specifications and technical parameter tables (non-metallic minerals, chemical industry, etc.)

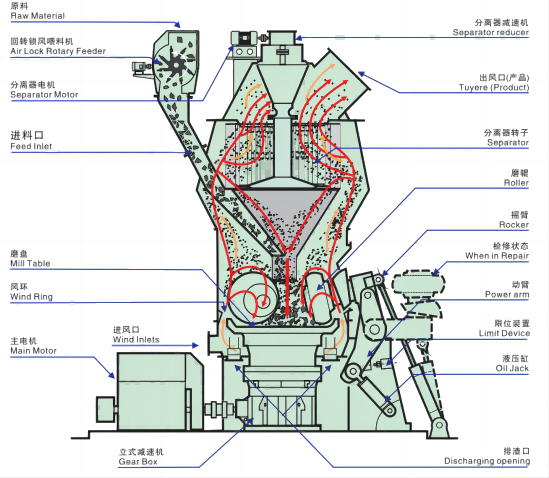

Working Principle of Vertical Mill

1. The motor drives the grinding disc to rotate via the reducer. Meanwhile, material falls from the feeding port to the center of the rotating grinding disc, and hot air enters the grinding chamber through the air inlet.

2. Under the action of centrifugal force, the material moves to the edge of the grinding disc. When it passes through the circular groove on the disc, it is crushed by the grinding roller.

3. The crushed material is picked up by the high-speed airflow at the edge of the grinding disc. Large particles directly fall back onto the disc for re-grinding.

4. The material carried by the airflow then passes through the dynamic-static separator. Under the action of the rotating rotor, coarse powder falls back to the grinding disc for re-grinding, while qualified fine powder is carried by the airflow.

5. The qualified fine powder is collected by the collecting device and becomes the final product.

6. For materials containing moisture, they are dried during contact with the hot air, ensuring the final product meets the required moisture content.

Why Choose Us?

1.  Professional Manufacturer

    With years of focus on vertical mill R&D and production, we offer stable, high-quality grinding solutions to global clients.

2.  Customized Solutions

    We tailor schemes based on your materials, capacity, fineness and budget, providing full technical support and one-stop production lines.

3.  Strict Quality Control

    Rigorous inspections from raw material to delivery ensure our products meet international standards and deliver long-term reliability.

4.  Comprehensive After-Sales

    From installation & training to maintenance, our global team ensures quick responses and smooth operation.

5.  Competitive Price

    As a direct manufacturer without middlemen, we provide cost-effective equipment with maximum return on investment.
