High Performance Limestone Milling System

Name: High Performance Limestone Milling System
Availability: InStock

Our limestone powder grinding system based on a vertical mill integrates drying, grinding, powder selection, and conveying, with low operating costs and compact layout, which can meet various limestone powder production requirements.

Item No :
Limestone Powder Preparation System
Order(MOQ) :
1
Payment :
Negotiation
Product Origin :
Hefei,China
Color :
Customize
Shipping Port :
China Ports
Lead Time :
Negotiation
Weight :
Based on actual

Inquiry now

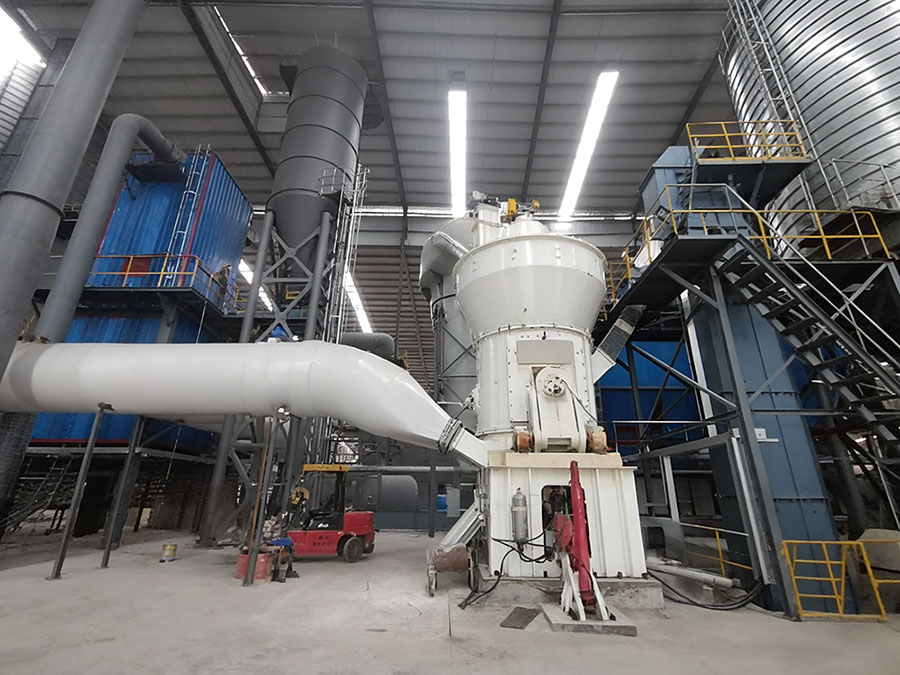

High Performance Limestone Milling System

High Efficiency Limestone Powder Vertical Mill System for Industrial Grinding

Our limestone powder vertical mill system is an integrated, energy-saving grinding solution designed for high-quality limestone processing, integrating drying, grinding, classifying and conveying functions. It is widely used in cement, environmental protection, construction, metallurgy and other industries, with the advantages of high efficiency, low energy consumption, stable operation and customizable capacity, providing professional turnkey solutions for global customers.

Product Overview

The limestone powder vertical mill system is a core solution for converting raw limestone into high‑quality powder, widely used in desulfurization, building materials, cement manufacturing, and other industries.

Unlike traditional ball mills, our vertical mill system features an advanced vertical structure that occupies only 50% of the floor space while reducing energy consumption by 30–40%.

It handles various limestone types and allows flexible adjustment of finished powder fineness to meet diverse production requirements, with a finished product passing rate of up to 99%.

Core Features

High Efficiency: 30–40% higher efficiency than ball mills with lower energy consumption.

Energy Saving: Optimized design cuts energy use by 30–40%, reducing long-term operating costs.

Adjustable Fineness: 80–3000 mesh, with uniform particle size and high product quality.

Durable Operation: Wear-resistant components and sealed design ensure low failure rate and extended service life.

Compact Footprint: Vertical integrated design saves space, supports outdoor installation.

Eco-Friendly & Low Noise: Full negative pressure operation, emissions below international standards, noise ≤80dB.

Intelligent Control: PLC system enables remote operation, reduces manual intervention and labor costs.

HVM type high-fine vertical grinding specifications, technical parameter table (electric desulfurization)

Model specification	HVM1250X	HVM1300X	HVM1500X	HVM1700X	HVM1900X	HVM2400X	HVM2500X	HVM2800X
Capacity	6~9 t/h	9~13 t/h	15~20 t/h	20~25 t/h	26~32 t/h	36~40 t/h	45～55 t/h	56~80 t/h
Grinding material moisture	≤5%
Limestone fineness	325 mesh (44um) 90% passed
Main Motor Power	110/132 kW	185/200 kW	250/280 kW	355/400 kW	450/500 kW	560/630 kW	710/800kW	1120/1250kW
Description	Note: Limestone Bon Grindability(Bond) Index: ≤13kWh/t

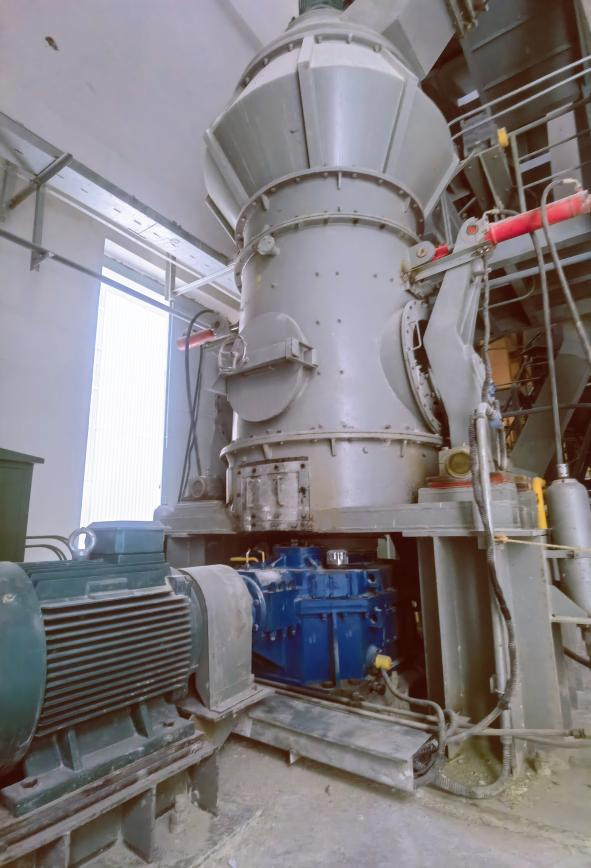

Vertical Grinding System Process

Raw materials are elevated into a silo, then fed into a vertical roller mill for grinding and drying. Qualified fine powder is separated via a classifier and cyclone, while coarse powder returns for regrinding. Exhaust gas is purified by a bag filter before emission. Finished powder is stored in a silo, ready for packaging or dispatch.

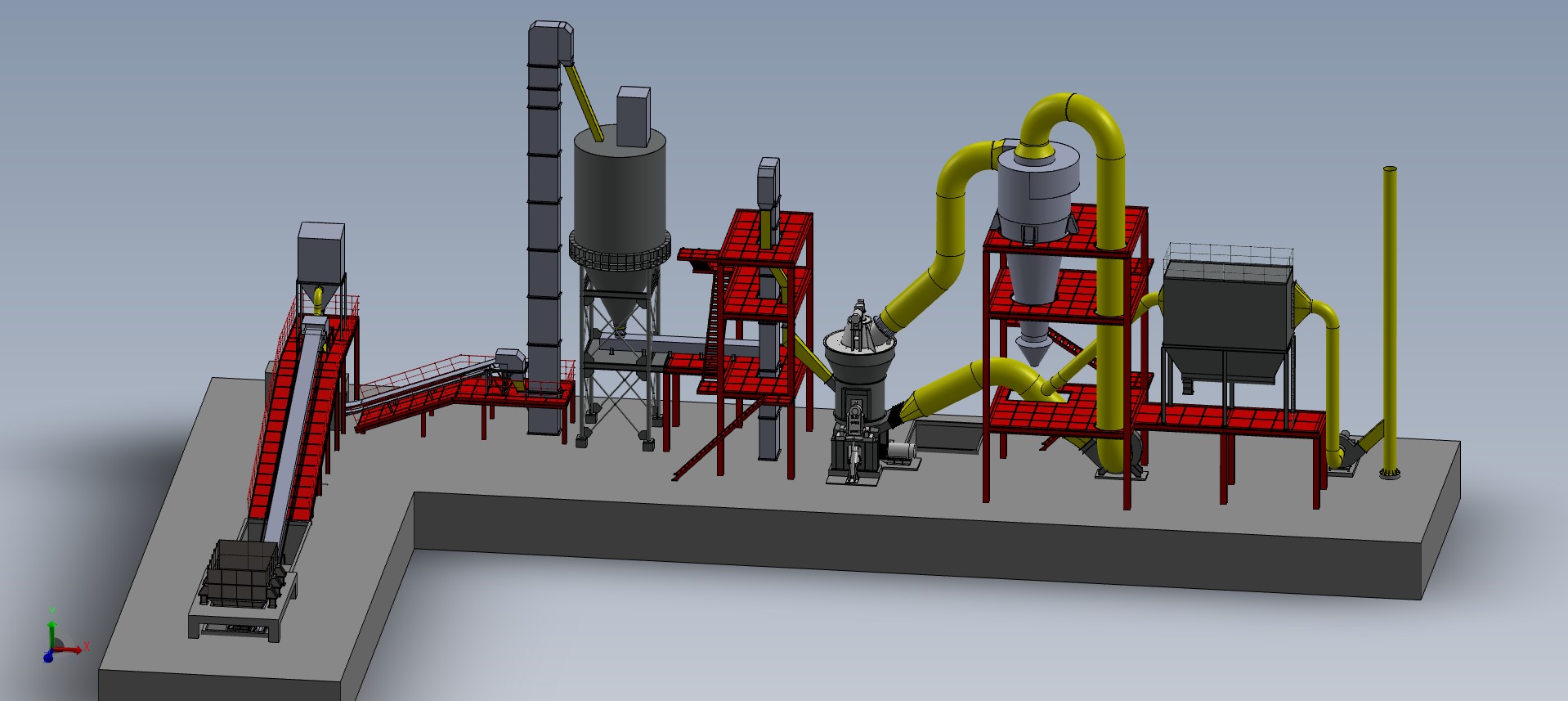

High Capacity Limestone Grinding System

Case

★ Project Name: 2.7 Million Tons/Year Premium Special Steel Pre-Production Lime Production Line

★ Scope of Work: Engineering Design and Equipment Manufacturing Supply for HVM800X Quicklime Grinding System

★ Material Type: Quicklime

★ Output: ≥4.5 t/h

★ Product Fineness: 90% Passing 200 Mesh

★ Commissioning Date: 2022

FAQ – Limestone Vertical Mill System

1. What materials can your limestone vertical mill system process?

Our system is specially designed for limestone grinding, suitable for various limestone types and related materials, including high-calcium limestone, dolomite, marble, chalk, and other materials with similar hardness and grindability.

2. What capacity and fineness can your system achieve?

For limestone powder processing, the system capacity ranges from 3 to 200 tons per hour. The finished limestone powder fineness can be adjusted between 80 mesh and 3000 mesh to meet different application requirements such as flue gas desulfurization (FGD), cement manufacturing, building materials, and plastic filler production.

3. How do I choose the right system model?

Our engineers will recommend the most suitable model based on your raw limestone type, required capacity, target fineness, raw material moisture content, application scenario, and site conditions.

4. What is the difference between a vertical mill and a ball mill for limestone grinding?

Compared with a ball mill, our vertical mill offers higher grinding efficiency (30%–40% increase), lower energy consumption, larger capacity, smaller footprint (only 50% of the space), better environmental performance (less dust and noise), and easier maintenance—making it the ideal choice for large-scale limestone powder production.

5. Can you provide customized limestone grinding solutions?

Yes, we provide customized design and manufacturing based on your specific requirements, including capacity, fineness, limestone type, site layout, and special conditions such as high moisture content.

6. Do you offer a complete limestone powder production line?

Yes, we provide turnkey solutions covering the entire limestone grinding process, including crusher, bucket elevator, feeder, vertical mill, dust collector, control system, and powder packaging machine.

7. What installation and after-sales services do you provide?

We offer on-site guidance for installation and commissioning, operator training, long-term supply of wear-resistant spare parts, and 24/7 online technical support to ensure stable operation.

8. What is the delivery time?

Delivery time is approximately 90–120 working days for standard models, and around 120 working days for customized production lines.

9. What control system does your vertical mill use?

The system is equipped with an advanced PLC automatic control system with a touch screen interface, enabling intelligent and unmanned operation of feeding, grinding, classifying, and drying, with remote monitoring and fault alarm functions.

10. Do your products have certifications?

Yes, our limestone vertical mill systems meet international industrial standards and hold certifications such as CE and ISO, ensuring quality, safety, and environmental compliance for global export.

11. Looking for a reliable limestone grinding system?

If you are seeking a high-quality, energy-efficient, and cost-effective solution for limestone powder production in desulfurization, cement manufacturing, or other industrial applications, contact us today. We provide:

- Free quotation

- Customized solutions

- Detailed technical parameters and catalogs

- On-site installation, commissioning, and after-sales support
