Our positive pressure dense phase pneumatic conveying bin pump is a high-capacity conveying equipment with a conveying capacity of more than 300t/h, featuring stable operation, high efficiency, low wear and long service life, widely used for long-distance and large-volume conveying of cement, fly ash, mineral powder and other bulk materials.
Item No :
Pneumatic conveying bin pumpOrder(MOQ) :
1Payment :
NegotiationProduct Origin :
Hefei,ChinaColor :
CustomizeShipping Port :
NegotiationLead Time :
NegotiationWeight :

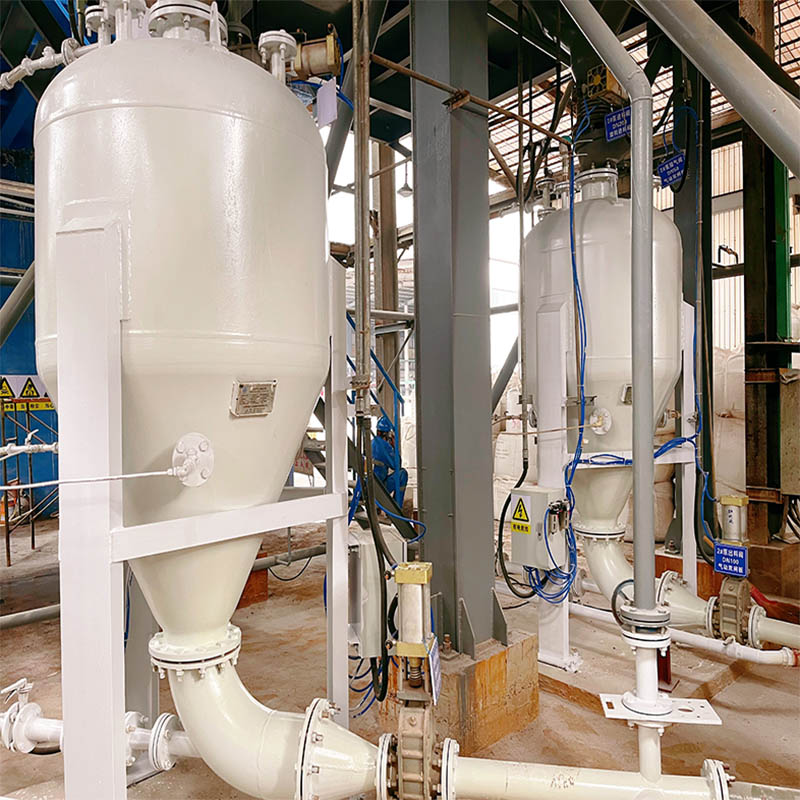

Based on actualHigh Capacity Pneumatic Conveying Bin Pump
Looking for a reliable, high-efficiency solution for bulk material conveying? Our Dense Phase Pneumatic Conveying Bin Pump is engineered to deliver stable, low-wear performance for large-scale industrial applications, perfectly matching your high-demand conveying needs.
My company has developed the PCD positive pressure dense phase pneumatic conveying pump and process system with independent intellectual property rights, and its main indicators have reached the international advanced level. We determine the volume of the pump body, i.e., carry out unit-specific design, based on the properties, particle size, conveying distance, and conveying volume of the materials to be transported. This ensures that energy consumption during conveying is minimized while meeting process requirements. Based on the parameters, properties, conveying distance, conveying capacity, and geographical conditions of the powder materials provided by the customer, we develop the optimal pneumatic conveying solution, including air volume calculation, piping ratio, dust collection and reception, and after-sales service plans.
Main features of the product:
①Large conveying capacity: >300t/h;
② Long distance: >2000m;
③Low power consumption: <3.8kWh/t·km;
④Low wear and tear: pipeline life > 10 years;
⑤ Low speed: initial speed 6 ~ 10m / s;
⑥High mixing ratio: >30kg/kg;
⑦Process lay-out is flexible, no dust, high operating rate, lower investment than mechanical transportation, less maintenance costs.
Normal specification pneumatic conveying bin pump parameter table
|
Conveying material |
Bulk weight (t/m³) |
Model |
PCD18/N |
PCD20/N |
PCD22/N |
Reference transport distance |
|
|
Specification |
5.0~6.7m³ |
7.0~10.0m³ |
10.0~15.0m³ |
Horizontal (m) |
Vertical (m) |
||
|
Pulverized coal |
0.5 |
Delivery volume (t/h) |
12~20 |
16~32 |
25~50 |
500 |
30 |
|
Fly ash |
0.75 |
18~32 |
25~48 |
35~70 |
50 |
|
|
|
Limestone powder / mineral powder |
0.8 |
20~35 |
26~51 |
38~75 |
500 |
30 |
|
|
Cement/raw material |
1.0 |
24~42 |
32~65 |
48~95 |
500 |
30 |
|
|
Silicon powder |
1.2 |
28~50 |
40~75 |
55~115 |
500 |
30 |
|
Small specification pneumatic conveying bin pump parameter table
|
Conveying material |
Bulk weight (t/m³) |
Model |
PCD08/M |
PCD10/M |
PCD12/M |
PCD14/M |
Reference transport distance |
|
|
Specification |
0.2~0.5m³ |
0.6~1.6m³ |
1.5~2.5m³ |
2.5~5.0m³ |
Horizontal (m) |
Vertical (m) |
||
|
Pulverized coal |
0.5 |
Delivery volume (t/h) |
0.5~1.8 |
1.5~5.5 |
5.0~9.0 |
8.0~18.0 |
100 |
20 |
|
Fly ash |
0.75 |
0.9~2.8 |
2.5~8.5 |
7.0~14.0 |
12.0~27.0 |
100 |
20 |
|
|
Limestone powder / mineral powder |
0.8 |
1.0~3.0 |
3.0~9.0 |
8.0~15.0 |
12.0~28.0 |
100 |
20 |
|
|
Cement/raw material |
1.0 |
1.2~3.5 |
3.5~11.5 |
10.0~18.0 |
16.0~36.0 |
100 |
20 |
|
|
Silicon powder |
1.2 |
1.5~4.0 |
4.5~13.5 |
12.0~20.0 |
19.0~43.0 |
100 |
20 |
|
Long-distance pneumatic conveying bin pump parameter table
|
Conveying material |
Bulk weight (t/m³) |
Model |
PCD24/L |
PCD26/L |
PCD28/L |
PCD30/L |
Reference transport distance |
|
|
Specification |
16~20m³ |
18~22m3 |
20~27m³ |
26~32m³ |
Horizontal (m) |
Horizontal (m) |
||
|
Pulverized coal |
0.5 |
Delivery volume (t/h) |
20~40 |
25~45 |
30~55 |
45~65 |
1000 |
25 |
|
Fly ash |
0.75 |
35~60 |
45~65 |
45~80 |
65~95 |
1000 |
25 |
|
|
Limestone powder / mineral powder |
0.8 |
40~65 |
45~70 |
50~85 |
70~100 |
1000 |
25 |
|
|
Cement/raw material |
1.0 |
50~80 |
55~90 |
65~110 |
90~120 |
1000 |
25 |
|
Large conveying capacity pneumatic conveying bin pump parameter table
|
Conveying material |
Bulk weight (t/m³) |
Model |
PCD24/H |
PCD26/H |
PCD28/H |
PCD30/H |
Reference transport distance |
|
|
Specification |
16~20m³ |
18~22m³ |
20~27m³ |
26~32m³ |
Horizontal (m) |
Horizontal (m) |
||
|
Pulverized coal |
0.5 |
Delivery volume (t/h) |
50~80 |
60~90 |
65~110 |
80~130 |
200 |
20 |
|
Fly ash |
0.75 |
75~125 |
85~130 |
95~160 |
125~190 |
200 |
20 |
|
|
Limestone powder / mineral powder |
0.8 |
80~130 |
90~140 |
100~170 |
130~200 |
200 |
20 |
|
|
Cement/raw material
|
1.0 |
100~150 |
115~175 |
130~215 |
165~260 |
200 |
20 |
|
Application Scenarios
• Our Dense Phase Pneumatic Conveying Bin Pump is widely used in various industrial fields that require large-volume, long-distance and sealed conveying of bulk materials, including but not limited to:
• Cement Industry: Conveying cement clinker, cement powder, fly ash in cement plants.
• Power Plant: Conveying fly ash, bottom ash, desulfurization powder.
• Mining Industry: Conveying mineral powder, coal powder, ore particles.
• Chemical Industry: Conveying chemical powder, granular materials (non-corrosive/weak corrosive).
• Metallurgical Industry: Conveying blast furnace slag powder, iron ore powder.
Case
 |
 |
|
★ Scope of Work: Design and equipment manufacturing supply for 9 sets of PCD10/M and PCD10/N type bin pump systems for quicklime powder pneumatic conveying ★ Conveying Capacity: 3t/h; 5.4t/h; 7.2t/h; 9.5t/h; 10.8t/h ★ Horizontal Distance: 31m; 51m; 101m; 47m; 91m ★ Vertical Height: 20m; 11m; 11m; 11m; 11m |
|
Why Choose Us?
As a professional manufacturer of pneumatic conveying equipment, we have rich experience in R&D, production and after-sales service. We focus on providing high-quality, cost-effective conveying solutions for global customers. Our products have passed strict quality inspection, with reliable performance and long service life. At the same time, we provide 24-hour technical support and after-sales maintenance service to solve your worries in use.
Contact Us
If you are interested in our Dense Phase Pneumatic Conveying Bin Pump, or need a customized conveying solution according to your actual needs, please contact us immediately. Our professional team will reply to you within 24 hours and provide you with detailed product information and quotation.
