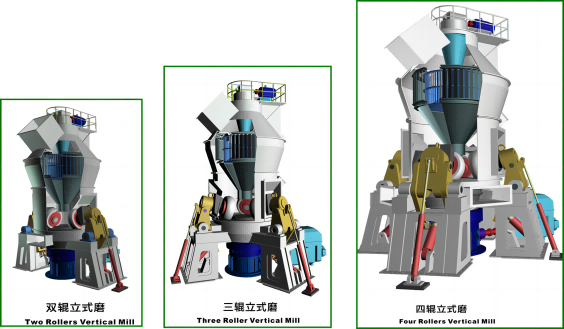

Vertical Roller Mill Working Principle: The Complete Guide to Efficient Grinding

The HVM Vertical Roller Mill is an advanced, safe, eco-friendly, energy-saving, and high-efficiency grinding equipment developed through in-depth research and design. It builds upon a comprehensive adoption of both domestic and international advanced technologies for vertical roller mills, combined with extensive engineering application experience. This mill integrates multiple functions into one unit, including drying, grinding, classifying, and pneumatic conveying. Its key performance and techno-economic indicators have reached the world's advanced level.

Working Principle:

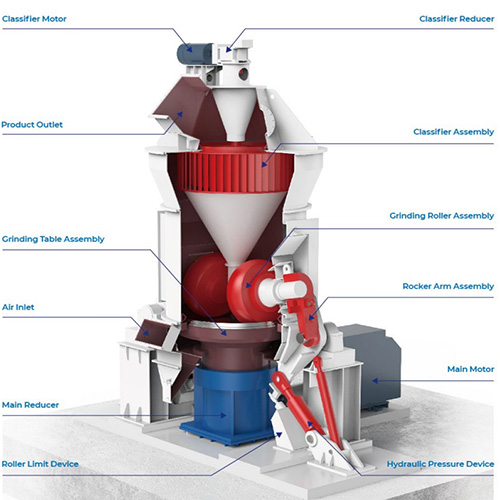

The electric motor drives the grinding table to rotate through a gearbox. Material is fed onto the center of the grinding table via the feed inlet, while hot air enters the mill through the air inlet simultaneously. Under the action of centrifugal force, the material moves toward the edge of the grinding table. As it passes through the annular groove on the table, it is crushed and ground by the rotating rollers. The pulverized material is then lifted by high-velocity airflow from the nozzle ring at the table periphery. Coarse particles fall back onto the grinding table for regrinding, while the material entrained in the airflow passes through the combined dynamic and static classifier. Under the action of the rotating rotor, coarse particles are rejected and returned to the table for further grinding, whereas qualified fine particles are carried out of the mill with the airflow and collected by the dust collection system as finished product. During the contact with hot gas, the moisture contained in the material is evaporated and dried, ensuring the final product meets the required moisture specifications.

Main features
1. High Efficiency & Energy Saving

(1) High grinding efficiency with low energy consumption—saving 40%–50% compared to traditional ball mills.
(2) Large single-machine capacity allows for operation during off-peak electricity periods to reduce energy costs.
(3) Vertical roller mill technology and equipment are strongly promoted as a new energy-saving and consumption-reducing solution, helping enterprises enhance their competitiveness in the regional and even national powder processing industry.

2. Easy Maintenance & Low Operating Cost

(1) Rollers can be swung out of the mill body via hydraulic devices, providing ample space for replacing roller sleeves, liners, and performing other maintenance tasks with great convenience.
(2) Roller sleeves are reversible, extending the service life of wear-resistant materials.
(3) No need to pre-spread material on the grinding table before start-up; the mill can be started under no-load conditions, eliminating start-up difficulties.
(4) Low wear rate—roller and table liners are made of special wear-resistant materials, ensuring long service life.
(5) High degree of automation: The automatic control system employs Siemens PLC (Germany) series, enabling remote control and simplified operation. The workshop can essentially operate unattended, significantly reducing operating costs.

3. Low Overall Investment Cost

Integrating crushing, drying, grinding, and conveying into a single unit, the system features a simple process flow, fewer auxiliary equipment, compact layout, and a small footprint—only 50% of that of a ball mill. It can be installed outdoors, further reducing construction costs and directly lowering the overall capital investment for enterprises.

4. Stable Product Quality

(1) Short material retention time inside the mill facilitates easy monitoring of product particle size distribution and composition, ensuring stable and consistent product quality.
(2) The finished product features uniform particle shape, narrow particle size distribution, and excellent flowability, offering strong adaptability to various downstream applications.

5. High Reliability

(1) Equipped with a roller limit device to prevent severe vibrations caused by material feed interruption during operation.
(2) Adopts a new type of roller sealing device for more reliable sealing performance. It eliminates the need for a sealing fan, further reducing oxygen content inside the mill and providing superior explosion suppression performance.

6. Environmental Protection

(1) The HVM vertical roller mill operates with minimal vibration and low noise levels.
(2) The entire system is fully enclosed and operates under negative pressure, with zero dust leakage, making it possible to achieve a virtually dust-free workshop environment.

Applications

The HVM Vertical Roller Mill, with its scientifically designed structure and inherent advantages, is widely applicable for grinding various materials across diverse operating conditions—ranging from high-moisture to dry materials, from hard-to-grind to easy-to-grind materials, and from coarse to ultra-fine products.

Material Adaptability:

Material Moisture: Handles feed materials with moisture content from 20%–30% (e.g., carbide slag, lignite, chalk) down to <1% (e.g., cement clinker);

Grindability: Processes both extremely hard-to-grind materials (e.g., quartz sand, steel slag, blast furnace slag, pyrophyllite, iron ore) and easy-to-grind materials (e.g., gypsum, calcite);

Product Fineness: Achieves finished product sizes from 2–5mm (e.g., brick-making raw materials, construction sand from shale) down to 15μm with 97% passing rate (e.g., ground calcium carbonate for paper and chemical industries). Fineness adjustment is simple and precise.
