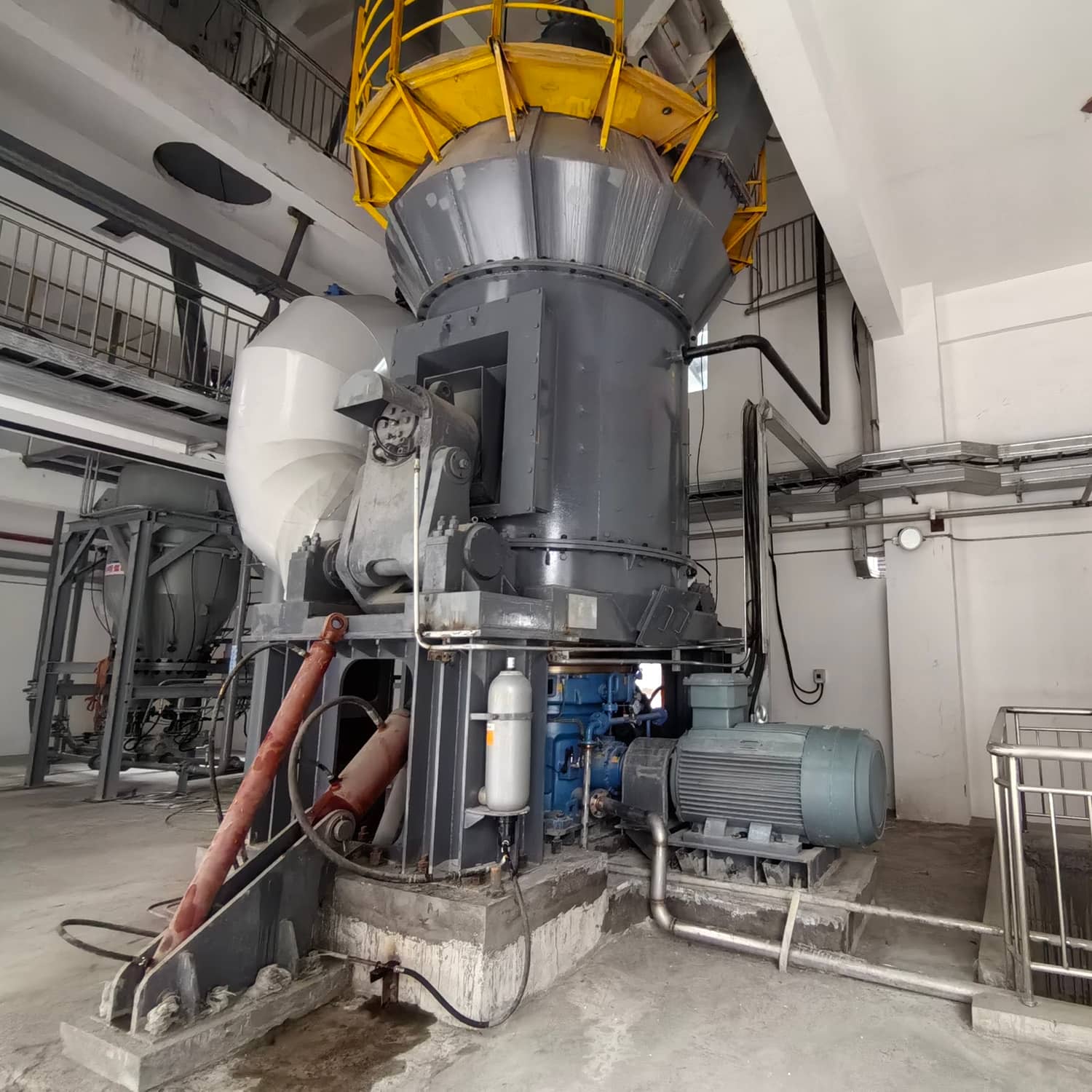

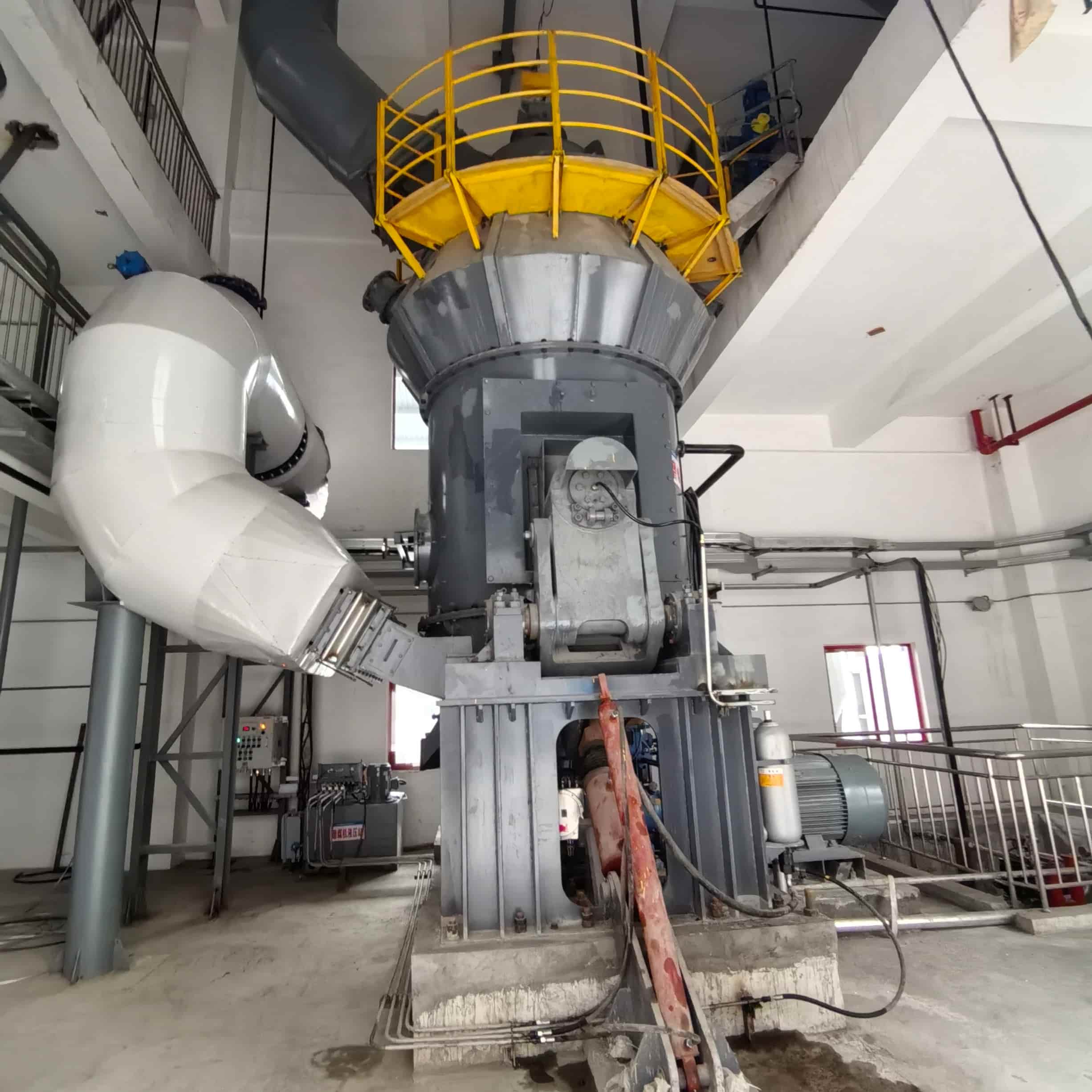

Energy Saving Compact Gypsum Vertical Roller Mill
Our compact small gypsum vertical roller mill integrates drying, grinding, classification and conveying for high-efficiency integrated operation. Suitable for medium-capacity production conditions, this energy-efficient mill cuts power costs considerably while guaranteeing superior finished powder fineness, making it the preferred equipment for cost-focused gypsum processing manufacturers.
Core Advantages
1. Compact Footprint, High Capacity Output
Occupies 50% less space than traditional ball mill systems.
The integrated design of our small vertical gypsum mill reduces civil construction costs and simplifies site layout.
2. Significant Energy Saving & Low Consumption
Adopts a low energy consumption gypsum mill design with an efficient grinding principle.
Saves 30%-40% of electricity per ton of gypsum powder compared to Raymond mills or ball mills.
3. Superior Powder Quality Control
Internal high-efficiency classifier ensures precise gypsum powder fineness control.
Produces consistent powder with a fineness range of 80-325 mesh, perfect for building gypsum powder and gypsum board production.
4. Integrated Drying & Grinding Function
Capable of processing raw materials with moisture content up to 10-15% without a separate dryer.
The gypsum calcining and grinding small vertical unit is ideal for one-step processing of FGD gypsum and phosphogypsum.
5. Easy Maintenance & Long Service Life
Equipped with high-quality wear parts for gypsum vertical mill, the grinding roller and table use composite wear-resistant materials.
The swing-out design of rollers allows for quick and easy replacement, minimizing downtime.
6. Low Investment, Fast ROI
As a direct gypsum vertical mill manufacturer, we offer a competitive price and turnkey project solutions.
This low investment small scale gypsum mill helps your business achieve profitability faster.
HVM type high-fineness vertical grinding specifications and technical parameter tables (non-metallic minerals, chemical industry, etc.)
|
Model specification
|
HVM800X
|
HVM1250X
|
HVM1300X
|
HVM1500X
|
HVM1700X
|
HVM1900X
|
HVM2400X
|
HVM2800X
|
|
Capacity
|
1~3 t/h
|
2~7 t/h
|
3~10 t/h
|
4~15 t/h
|
6~22 t/h
|
7.5~25 t/h
|
9~38 t/h
|
11~45 t/h
|
|
Grinding material moisture
|
≤5%
|
|
Product fineness
|
（10~40um）97%
|
|
Product moisture
|
≤1%
|
|
Main Motor Power
|
55 kW
|
132 kW
|
180 kW
|
250 kW
|
355/400 kW
|
450 kW
|
560/630 kW
|
710 kW
|
|
Description
|
Note: 1. The above technical indicators are based on materials with Mohs hardness of 3~4.
2. Product fineness can reach 10 microns (1250 mesh)
|

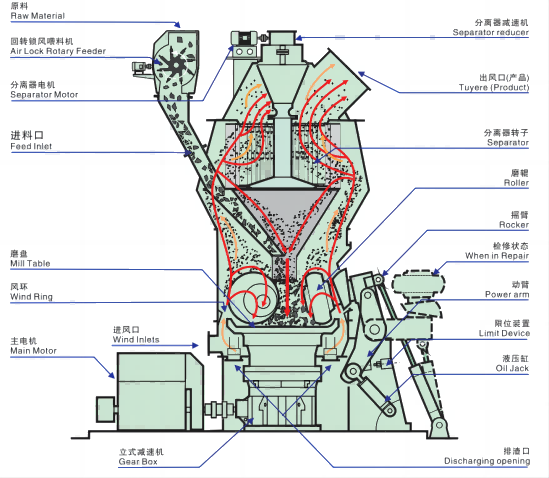

Working principle: The motor drives the grinding disc to rotate through the reducer, and the material falls from the feeding port to the center of the grinding disc, and the hot air enters the grinding chamber from the air inlet. Under the action of centrifugal force, the material moves to the edge of the grinding disc, and is crushed by the grinding roller when passing through the circular groove on the grinding disc. The pulverized material is taken up by the high-speed airflow at the edge of the grinding disc at the edge of the grinding disc, and the large particles directly fall on the grinding disc. When re-grinding, the material in the airflow passes through the dynamic static separator. Under the action of the rotating rotor, the coarse powder falls on the grinding disc and milled again. The qualified fine powder gathered together with the airflow and collected in the collecting device. Then become product. The moisture-containing material is dried during contact with the hot gas to achieve the desired product moisture.
Applicable Industries of Gypsum Grinding Mill
- Building Materials Industry: Process premium construction gypsum powder for gypsum plaster, gypsum blocks and dry-mixed mortar production.
- Gypsum Board Industry: Grind calcined gypsum to supply raw materials for gypsum board production lines.
- Industrial Solid Waste Recycling: Recycle FGD gypsum and phosphogypsum from power plants and fertilizer plants, and further process them into high-quality construction raw materials.
- Cement Industry: Serve as an auxiliary grinding station to process gypsum raw materials for cement retarder additives.
Case
 |
|
★ Project Name: Nigeria Annual Production 200000 Tons Natural Gypsum Calcination Production Line
★ Type of processed material: natural gypsum
★ Production capacity: ≥ 35t/h
★ Product fineness: 120 mesh, 90% pass
|
Get Your Customized Gypsum Grinding Solution Today!
- As an experienced OEM gypsum grinding mill factory, we don't just offer machines—we provide complete solutions tailored to your raw material, capacity, and budget.
- Contact us now for a gypsum grinding mill price quotation and free technical consultation.
- Send us your inquiry with the required capacity and fineness. Our engineering team will design the optimal gypsum powder production line layout for your project.
