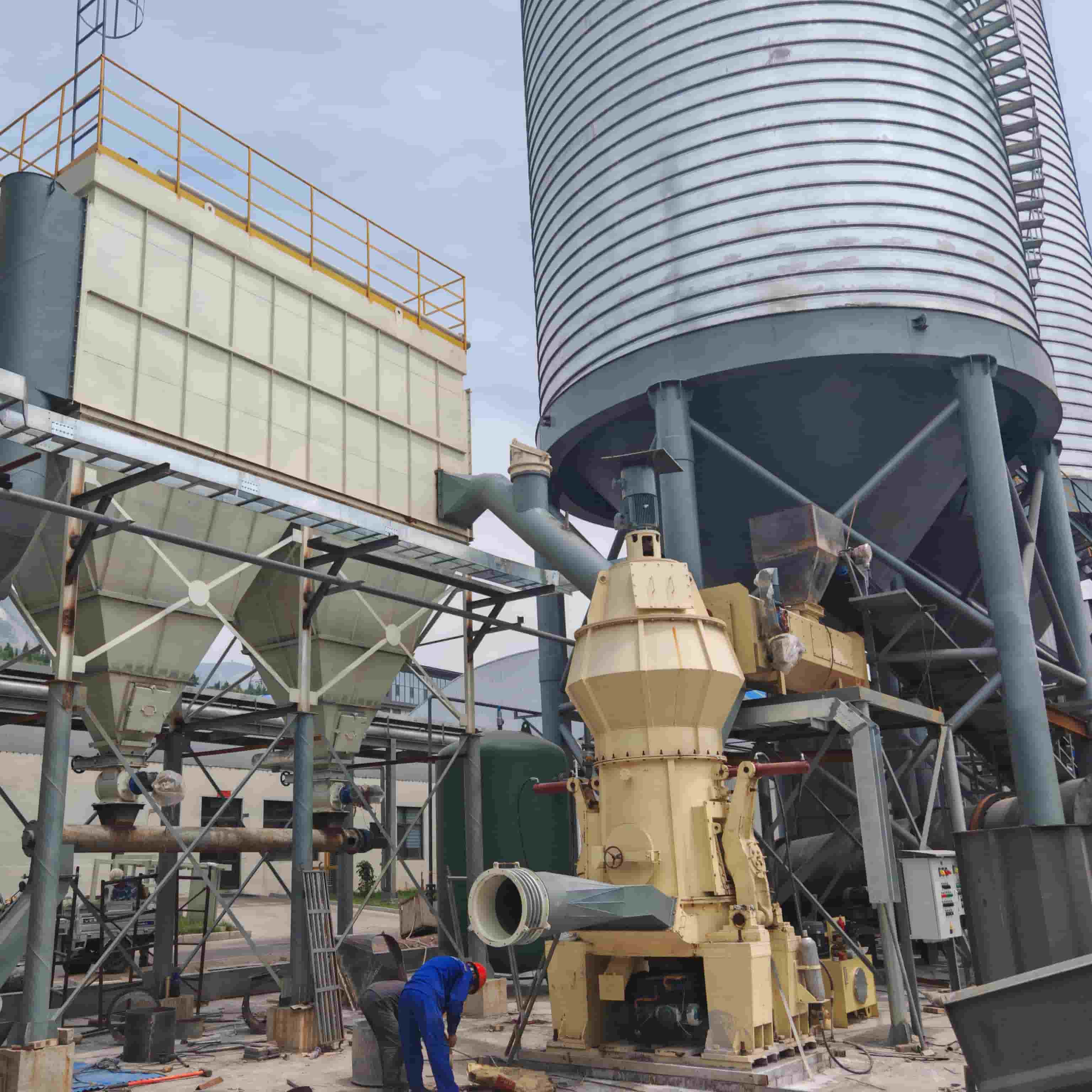

High Efficiency Vertical Coal Mill
As a professional Vertical Coal Mill manufacturer, Hefei Hengcheng provides Energy Saving Coal Pulverizer solutions designed for cement production lines, thermal power plants, and pulverized coal injection (PCI) systems in steel mills. Our Coal vertical Grinding Mill delivers stable, high-efficiency operation with industry-leading wear resistance.
Advantages
⚡ Energy Saving & Low Power Consumption
Optimized grinding profile reduces electricity consumption by 30-40% compared to traditional ball mills.
🛡️ Explosion Proof & Safe Operation
Equipped with inert gas protection system and explosion-proof design, fully compliant with ATEX safety standards.
🔩 High Wear Resistance & Long Service Life
Grinding rollers and table liners cast from high-chromium alloy, extending maintenance cycles and reducing downtime.
🔇 Environmentally Sealed Structure
Fully enclosed system prevents coal dust leakage, meeting strict environmental regulations.
Technical Parameters
|
Model specification
|
HVM1250X
|
HVM1300X
|
HVM1500X
|
HVM1700X
|
HVM1900X
|
HVM2400X
|
HVM2500X
|
HVM2800X
|
|
Capacity
|
6~9 t/h
|
9~13 t/h
|
15~20 t/h
|
20~25 t/h
|
26~32 t/h
|
36~40 t/h
|
45～55 t/h
|
56~80 t/h
|
|
Grinding material moisture
|
≤5%
|
|
Limestone fineness
|
325 mesh (44um) 90% passed
|
|
Main Motor Power
|
110/132 kW
|
185/200 kW
|
250/280 kW
|
355/400 kW
|
450/500 kW
|
560/630 kW
|
710/800kW
|
1120/1250kW
|
|
Description
|
Note: Limestone Bond Index: ≤13kWh/t
|
Working Principle:
The motor drives the grinding table to rotate through the reducer. Raw materials fall to the center of the grinding table from the feed inlet, while hot air enters the mill through the air inlet.
Under centrifugal force, materials move toward the edge of the grinding table and are crushed by grinding rollers in the annular trough. The crushed materials are then lifted by high-speed airflow at the air ring.
Large and coarse particles fall back to the grinding table for re-grinding. Fine powder passes through the dynamic-static separator with the airflow and is finally collected by the powder collector as finished products.
Meanwhile, hot air fully dries the moist materials during processing, ensuring the finished powder meets the standard moisture requirement.
Case
 |
 |
|
Project Name: 20t/h Natural Gypsum Vertical Grinding Powder System
Processing material type: natural gypsum or dolomite
Production capacity: ≥ 20t/h
Product fineness: 100 mesh, 90% -95% pass
Production time: 2024
|
Spare Parts & Service
OEM Grinding Roller and Table Liner supply.
Complete Coal Mill Classifier retrofit and upgrade.
On-site installation, commissioning, and operator training.
Remote technical support and preventive maintenance program.
Get the Right Grinding Solution for Your Desulfurization Project
- Tell us your required capacity and fineness, and we will design a tailored limestone grinding mill plant for you.
- Competitive Limestone Grinding Mill Price
- Customized System Configuration
- Full Lifecycle Technical Support
