Pulverized Coal Vertical Grinding Mill

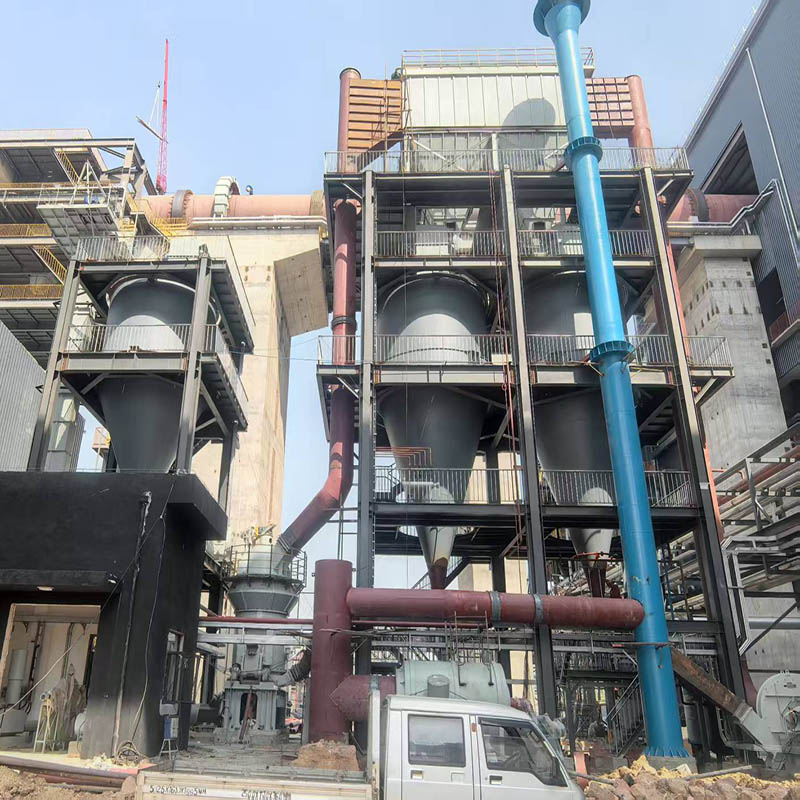

Name: Pulverized Coal Vertical Grinding Mill
Availability: InStock

Beyond basic coal pulverization, our vertical mill is engineered for maximum operational ROI—combining low power consumption, minimal fugitive dust, and exceptional particle size consistency to keep your industrial grinding running reliably around the clock.

Item No :
vertical coal mill
Order(MOQ) :
1
Payment :
Negotiation
Product Origin :
China
Color :
Customize
Shipping Port :
China Ports
Lead Time :
Negotiation
Weight :
Based on actual

Inquiry now

Pulverized Coal Vertical Grinding Mill

Stop Compromising on Coal Grinding

Our Vertical Coal Mill eliminates the trade-off between efficiency and cost. Unlike traditional solutions, it uniquely integrates Drying, grinding, powder selection, and conveying as one unit. This means you get up to 40% less energy use, a 50% smaller footprint, and consistently stable product quality. Solve your high OPEX and space constraints in one move—perfect for power, cement, steel, and chemical plants.

Core Advantages – Built for Your Bottom Line

Unmatched Energy Efficiency: Slash electricity costs by 20–40% compared to ball mills. Integrated drying handles up to 10% moisture (25% for special models) – no extra dryer needed.

Consistent, Premium Output: Dynamic-static separator delivers precise fineness from 38μm to 400 mesh, with uniform particle size that satisfies power, metallurgy, and cement standards.

Lower Capital Expenditure: Needs only half the floor space of traditional ball mills (50–60% less). Supports open-air installation, cutting plant construction and infrastructure costs.

Safe & Compliant: Fully sealed, negative-pressure design means zero dust leakage and 80–85dB noise – ready for strict environmental regulations. Built-in explosion protection keeps high-risk coal grinding safe.

Smart & Service-Friendly: Remote/local auto control reduces labor. Force-feed lubrication boosts bearing life by 2.5x. Easy-access doors speed up inspection and slash downtime.

HVM pulverized coal vertical mill specifications, technical parameters

Model Specification	HVM1100M	HVM1250M	HVM1300M	HVM1400M	HVM1500M
Capacity	5～8 t/h	8~10 t/h	10~12 t/h	12~15 t/h	15~20 t/h
Main Motor Power	90 kW	110/132 kW	185/200 kW	200/220 kW	220/250 kW
Raw coal moisture	<15%
Pulverized coal fineness	R0.08=2%～12%
Pulverized coal moisture	≤1% (Under the premise of meeting the drying requirements)
Model Specification	HVM1700M	HVM1900M	HVM2200M	HVM2400M	HVM2800
Capacity	20~25 t/h	25~35 t/h	35~45 t/h	45~55 t/h	70~90
Main Motor Power	315/355 kW	400/450 kW	450/500 kW	560/630 kW	900/1120
Description	Note: 1. The original coal Hastelloy grindability coefficient ≥ 55; 2.can be used for grinding anthracite, fineness of coal powder (R0.08) ≤ 3% (but the capacity will decrease accordingly)

HVM pulverized coal vertical mill specifications, technical parameters (Metallurgy, heat, energy industry)

Model specification	HVM800M	HVM1100M	HVM1250M		HVM1300M		HVM1400M		HVM1500M
Capacity	3～5 t/h	7～10 t/h	9~12 t/h		13~17 t/h		14~19 t/h		18~24 t/h
Main Motor Power	45/55 kW	90/110 kW	110/132kW		185/200 kW		200/220 kW		220/250kW
Raw coal moisture	<15%
Pulverized coal fineness	R0.08=10%～15% (fineness of coal powder for blast furnace coal injection: 200 mesh 80% pass)
Pulverized coal moisture	1%～6% (Under the premise of meeting the drying requirements)
Model specification	HVM1700M	HVM1900M		HVM2200M		HVM2400M		HVM2800M
Capacity	23~30 t/h	29~36 t/h		36~45 t/h		45~55 t/h		70~90
Main Motor Powerr	280/315kW	355/400 kW		450/500 kW		560/630 kW		900/1120
Description	Note: The original coal Hastelloy grindability coefficient HGI：55～70

Working Principle
The motor drives the grinding disc via the reducer. Material falls onto the center of the rotating disc, while hot air enters the grinding chamber. Under centrifugal force, the material moves to the disc edge and is crushed by the grinding roller as it passes through the circular groove. The crushed material is picked up by high-speed airflow; large particles fall back onto the disc for re-grinding. The airflow then carries the material through a dynamic-static separator, where coarse powder is returned for re-grinding and qualified fine powder is collected as the final product. For materials containing moisture, drying occurs during contact with the hot air to ensure the final product meets the required moisture content.

coal vertical mill

Why Choose Us?

1. Professional Manufacturer

With years of focus on vertical mill R&D and production, we offer stable, high-quality grinding solutions to global clients.

2. Customized Solutions

We tailor schemes based on your materials, capacity, fineness and budget, providing full technical support and one-stop production lines.

3. Strict Quality Control

Rigorous inspections from raw material to delivery ensure our products meet international standards and deliver long-term reliability.

4. Comprehensive After-Sales

From installation & training to maintenance, our global team ensures quick responses and smooth operation.

5. Competitive Price

As a direct manufacturer without middlemen, we provide cost-effective equipment with maximum return on investment.

Case

★ Project Name: 600t/d Lime Rotary Kiln Production Line

★ Scope of Work: Engineering design and equipment manufacturing supply for HVM1250M vertical coal mill pulverizing system

★ Material Type: Anthracite

★ Output: ≥8 t/h

★ Product Fineness: 90% passing 200 mesh

FAQ

1. What materials can your vertical mill grind?

Our vertical mill is specially designed for coal grinding, and is also suitable for grinding various coal-based materials and related fuels, such as bituminous coal, anthracite, lignite, coal gangue, coal slime, and other materials with similar grindability to coal.

2. What is the capacity and fineness of your vertical mill?

For coal powder processing, the capacity ranges from 3 to 200 tons per hour, and finished coal powder fineness can be adjusted between 200 mesh and 1250 mesh according to customer’s application requirements (such as power plants, cement plants, boilers).

3. How to choose the right model?

We need to know your raw coal type (bituminous coal/anthracite/lignite), required capacity, finished coal powder fineness, moisture content of raw coal, application scenario (power generation, cement production, boiler combustion) and site conditions. Our engineers will recommend the most suitable model.

4. What is the difference between vertical mill and ball mill?

For coal grinding, the vertical mill features higher efficiency (increased by 30%–50%), lower energy consumption, larger capacity, smaller footprint, more environmental protection (less dust and noise), and easier maintenance than ball mill, which is more suitable for large-scale coal powder production.

5. Can you provide customized vertical mill?

Yes, we provide customized design and production according to customer’s coal processing requirements, including capacity, coal powder fineness, raw coal type, site layout and special working conditions (such as high-moisture coal slime).

6. Do you provide complete production line?

Yes, we provide turnkey coal powder production line including crusher for coal pre-crushing, bucket elevator, feeder, coal powder vertical mill, dust collector, control system and packaging machine, covering the whole process of coal grinding and powder making.

7. How about installation and after-sales service?

We provide on-site guidance for installation, debugging, operator training (coal grinding operation and maintenance), long-term supply of wear-resistant spare parts suitable for coal grinding, and 24-hour online technical support to ensure stable operation of the production line.

8. What is the delivery time?

For standard coal powder vertical mill models, delivery time is about 90-120 working days. For customized coal powder production line, it is about 120 working days.

9. What control system does the vertical mill use?

It adopts advanced PLC automatic control system with touch screen, realizing intelligent and unmanned operation of coal feeding, grinding, classification and drying, and supporting remote monitoring and fault alarm.

10. Do you have certification?

Yes, our coal powder vertical mill meets international industrial standards and has relevant certifications such as CE and ISO, ensuring quality, safety and environmental protection requirements, and can be exported to global markets.

11. Looking for a reliable coal powder vertical mill?

If you are looking for a high-quality, energy-saving and cost-effective coal powder vertical mill for power plants, cement plants, boiler combustion or coal powder production projects, please feel free to contact us!

We can provide you with:

1) Free quotation for coal vertical mill

2) Customized solutions for coal processing projects

3) Detailed technical parameters and product catalogs

4) On site installation guidance, commissioning and after-sales service

5) Contact us now to get the best price and professional support for your coal grinding project!
