Affordable API Standard Bentonite Vertical Roller Mill Plant

A customized vertical roller mill plant for sulphur bentonite, premium cat litter, and foundry-grade bentonite powder. We engineer flexible, small-scale grinding solutions tailored to your specific raw material and end-product requirements — ideal for niche.

Item No :
bentonite grinding mill
Order(MOQ) :
1
Payment :
Negotiation
Product Origin :
Hefei,China
Color :
Customize
Shipping Port :
Negotiation
Lead Time :
Negotiation
Weight :
Based on actual

Inquiry now

Affordable API Standard Bentonite Vertical Roller Mill Plant

Your Turnkey Solution for API-Grade Bentonite Powder

We are a specialized manufacturer providing affordable, turnkey bentonite vertical roller mill grinding plants for small and medium processors across the world. Whether you're producing drilling mud powder for local oilfields, running a toll grinding business, or entering niche markets like cat litter or sulphur bentonite — our system is engineered to help you start production quickly, meet API 13A standards, and keep your operating costs low.

No inflated prices. No complex technology. Just reliable, easy-to-operate grinding equipment with the support you need to succeed.

Why Small & Medium Processors Choose Our System

1. Factory-Direct Pricing, Faster ROI We are the manufacturer, not a trading company. You buy directly from our factory, eliminating middleman costs. Our small-scale systems are priced for real budgets, helping you recover your investment faster than with expensive European alternatives.

2. API 13A Compliance — We Help You Qualify Our vertical roller mill grinding system is designed to consistently produce bentonite powder meeting API 13A and OCMA specifications for drilling mud. With our precise classifier and quality control guidance, you can confidently supply local and regional oilfield customers — even those working with Aramco or ADNOC projects.

3. Turnkey Delivery — Start Producing in Weeks

You don't need an engineering team.

We provide:

Complete equipment set: mill, classifier, feeder, dust collector, piping, control panel
Plant layout and process design
On-site installation supervision Operator training in simple, practical terms
Remote support whenever you need it

4. Low Maintenance, High Uptime

We know downtime kills your business. That's why our mill features:

Hard-wearing grinding rollers with long service intervals
Simple modular parts that can be replaced quickly
Centralized lubrication to reduce daily maintenance tasks
Clear maintenance guides and responsive remote support

5. Multi-Mineral Capability Run a toll grinding business?

Our vertical mill can also process barite, calcium carbonate, kaolin, and other industrial minerals — maximizing your equipment utilization and revenue streams.

Technical Specifications

Model specification	HVM800X		HVM1250X	HVM1300X	HVM1500X	HVM1700X	HVM1900X	HVM2400X	HVM2800X
Capacity	1~3 t/h	2~7 t/h		3~10 t/h	4~15 t/h	6~22 t/h	7.5~25 t/h	9~38 t/h	11~45 t/h
Grinding material moisture	≤5%
Product fineness	（10~40um）97%
Product moisture	≤1%
Main Motor Power	55 kW	132 kW		180 kW	250 kW	355/400 kW	450 kW	560/630 kW	710 kW
Description	Note: 1. The above technical indicators are based on materials with Mohs hardness of 3~4. 2. Product fineness can reach 10 microns (1250 mesh)

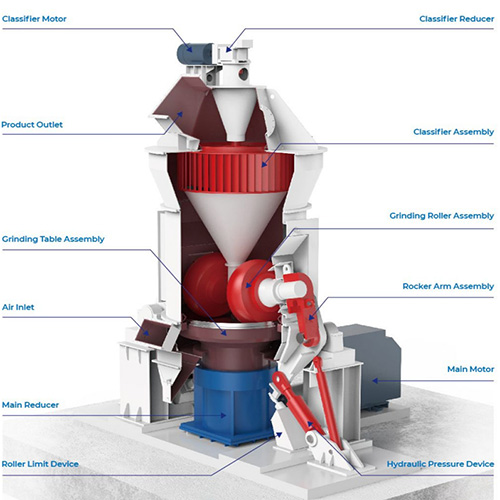

The HCVRM Vertical Roller Mill is an all-in-one grinding unit integrating grinding, drying and classifying. Adopting the material bed grinding principle, it cuts energy consumption by over 40% versus ball mills and Raymond mills, delivering eco-friendly, low-carbon production.

Its bowl-shaped grinding table and tire-like rollers ensure stable material bed and low vibration. Equipped with a high-efficiency dynamic-static classifier and optimized internal airflow, it achieves higher grinding efficiency with precise, adjustable powder fineness for maximum energy utilization.

The fully enclosed, negative-pressure system eliminates dust leakage and ensures a clean workshop. Featuring intelligent PLC automation, it supports one-touch operation and maintenance, enabling stable, round-the-clock unattended running.

A single HCVRM unit serves as a complete modern grinding plant.

Application	Our Supply Solutions
Oil & Gas Drilling Mud	Produce API 13A-standard bentonite powder as additives for drilling fluids
Toll Grinding Services	Multi-mineral grinding complete sets for paid customer material processing
Sulphur Bentonite Fertilizer	Superfine bentonite powder for sulfur mixing and granulation processes
Cat Litter Production	Low-dust & high-absorbency bentonite powder for premium cat litter raw materials
Foundry & Casting Industry	Bentonite powder with stable green strength for molding sand production
Civil Engineering	Bentonite materials for diaphragm walls, GCL liners and waterproofing projects

What Makes Us Different from Big Manufacturers

Big Brands	Our Approach
Expensive, complex systems	Affordable, practical equipment
Long delivery times	Fast manufacturing and shipment
Minimal after-sales support for small buyers	Responsive, patient technical support
Standard packages only	Flexible customization for your needs
Hard to reach decision-makers	Direct communication with our engineers
