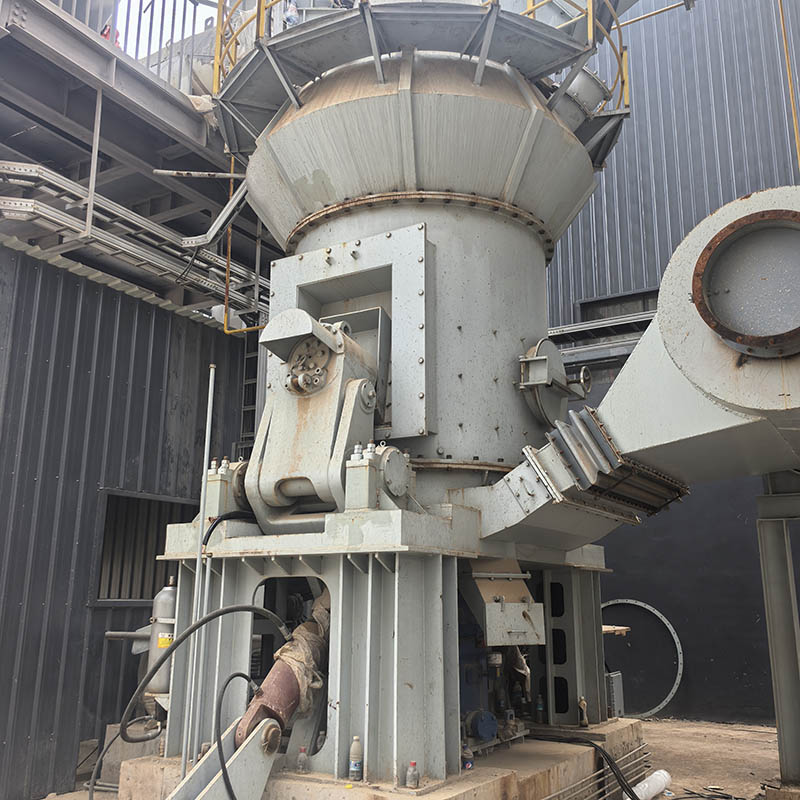

Heavy Duty Gypsum Powder Vertical Roller Mill

Product Features

1. Energy-Efficient

   - Consumes 40–50% less energy than ball mills

   - High single-machine capacity; supports off-peak power usage

   - Advanced vertical grinding technology enhances competitiveness

2. Easy & Low-Cost Maintenance

   - Hydraulic swing-out arm for easy roller access

   - Reversible roller sleeves to extend service life

   - No bed buildup required; supports no-load start-up

   - Wear parts made of durable materials

   - Siemens PLC enables remote, unmanned operation

3. Low Investment Cost

   - Integrates crushing, drying, grinding, and conveying

   - Compact design; footprint 50% that of ball mills

   - Suitable for outdoor installation, reducing civil construction costs

4. Stable Product Quality

   - Short material residence time ensures consistent quality

   - Uniform particle shape, narrow particle size distribution, and good fluidity

5. High Reliability

   - Roller limiter prevents vibration during operation

   - Advanced sealing improves explosion suppression and reduces oxygen levels

6. Eco-Friendly Operation

   - Low vibration and noise

   - Fully sealed, negative-pressure system—zero dust leakage

Application Areas

Plaster & Gypsum Board Production – Ideal for producing high-quality gypsum powder for interior wall plaster, gypsum blocks, and gypsum boards.

Building Materials – Suitable for cement additives, mortar, and lightweight building materials.

Industrial Filler – Used in paints, coatings, plastics, and rubber industries as a functional filler.

Agriculture – Provides gypsum powder for soil improvement and pH regulation.

PARAMETER TABLE

Working Principle

The motor drives the grinding disc via the reducer. Material enters through the feeding port to the center of the rotating disc, while hot air enters the grinding chamber through the air inlet. Under centrifugal force, the material moves to the edge of the disc and is crushed by the grinding roller as it passes through the circular groove. The crushed material is picked up by high-speed airflow at the disc edge, with large particles falling back onto the disc for re-grinding. The material carried by the airflow then enters the dynamic-static separator, where the rotating rotor causes coarse powder to return to the disc for further grinding, while qualified fine powder is conveyed with the airflow. This fine powder is collected by the collecting device as the final product. For materials containing moisture, drying occurs during contact with the hot air, ensuring the final product meets the required moisture content.

Why Choose Us?

1. Professional Manufacturer

A specialized gypsum vertical roller mill manufacturer with years of R&D and production expertise, delivering reliable grinding solutions worldwide.

2. Customized Solutions

Tailored vertical roller mill for gypsum designs based on your capacity, fineness, and budget—from small gypsum grinding mills to full production lines.

3. Strict Quality Control

Rigorous inspections ensure every vertical roller mill for gypsum powder meets international standards for long-term reliability and low maintenance operation.

4. Comprehensive After-Sales

Global support covering installation, training, and maintenance for automatic gypsum grinding mills with remote monitoring capabilities.

5. Competitive Price

Factory-direct gypsum vertical mill supplier offering cost-effective solutions with maximum ROI—no middlemen.

Case

★ Project Name: Nigeria Annual Production 200000 Tons Natural Gypsum Calcination Production Line ★ Type of processed material: natural gypsum ★ Production capacity: ≥ 35t/h ★ Product fineness: 120 mesh, 90% pass

FAQ
1. What materials can your gypsum vertical mill grind?

Our vertical mill is specially designed for gypsum grinding, and is also suitable for other non-metallic minerals with similar grindability: anhydrite, phosphogypsum, fluorite, talc, etc., which have similar hardness and processing requirements as gypsum.

2. What is the capacity and fineness of your gypsum vertical mill?

The processing capacity for gypsum is 3–200 tons per hour.

The fineness of finished gypsum powder can be adjusted between 200 mesh and 1250 mesh according to application requirements in building materials, plaster production and construction industries.

3. How to choose the right model for my gypsum project?

We need to know: raw material type (natural gypsum/anhydrite/phosphogypsum), required capacity (tons per hour), finished product fineness (mesh), moisture content of raw material, application scenario (plaster, building materials, construction) and site conditions.

Our engineers will recommend the most suitable model for you.

4. What is the difference between your gypsum vertical mill and ball mill and raymond mill?

Compared to Raymond mills and ball mills, the vertical roller mill, with its integrated design that combines crushing, drying, grinding, and classifying, reduces energy consumption by 30%-50% when processing gypsum, achieves higher output, and can easily handle high-moisture materials, realizing true energy efficiency and intelligent production.

5. Can you provide customized gypsum vertical mills?

Yes. We can provide customized design and production according to your gypsum processing requirements, including capacity, fineness, site layout, voltage and special working conditions (such as high-moisture gypsum).

6. Do you provide a complete gypsum powder production line?

Yes, we provide a turnkey gypsum powder production line, including: crusher for gypsum pre-crushing, bucket elevator, feeder, gypsum vertical mill, dust collector, control system and packaging machine, covering the whole process of gypsum processing.

7. How about the installation and after-sales service of the gypsum vertical mill?

We provide on-site installation guidance, commissioning, operator training (gypsum grinding operation and maintenance), long-term supply of wear-resistant spare parts (suitable for gypsum grinding), and 24-hour online technical support to ensure stable operation of the production line.

8. What is the delivery time of the gypsum vertical mill?

Customized production line: about 90–120 working days.

The exact delivery time will be provided after confirming the model and specific requirements.

9. What control system does the gypsum vertical mill adopt?

It adopts an advanced PLC automatic control system, realizing intelligent control of gypsum feeding, grinding, classification and drying. It supports remote monitoring and fault alarm, and is easy to operate.

10. Does your gypsum vertical mill meet international standards?

Yes, our products comply with international industrial standards and have relevant certifications such as CE and ISO, ensuring quality, safety and environmental protection requirements, and can be exported to global markets.

11. Looking for a reliable gypsum vertical mill?

If you are looking for a high-quality, energy-saving and cost-effective gypsum vertical mill for building materials, plaster production or gypsum powder projects, please feel free to contact us!

We can provide you with:

Free quotation for gypsum vertical mill

Customized solutions for gypsum processing projects

Detailed technical parameters and product catalogs

On-site installation, commissioning and after-sales service

Contact us now to get the best price and professional support for your gypsum grinding project!
