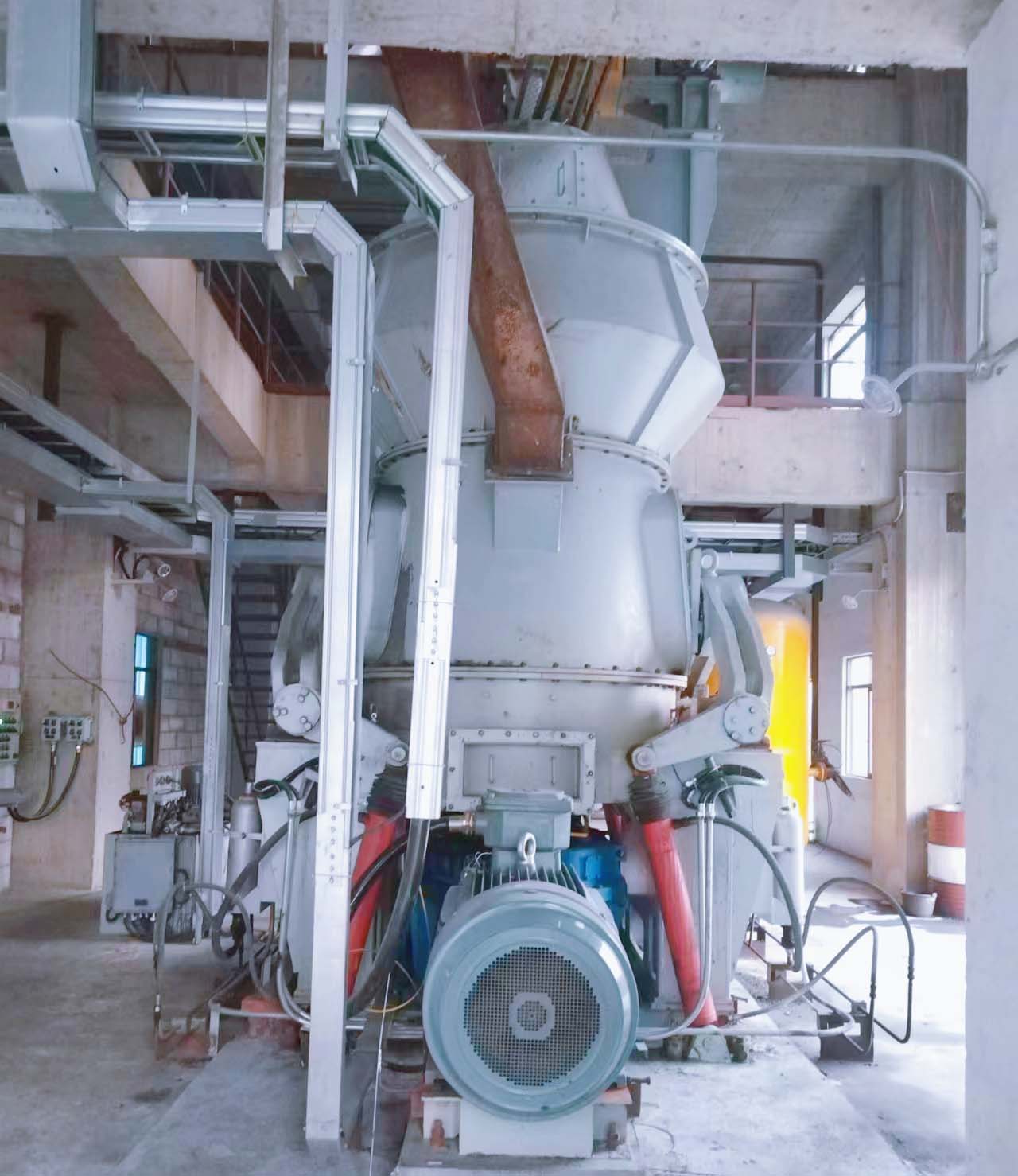

High Efficiency Industrial Talc Vertical Roller Mill

Core Features & Advantages

- High Efficiency: Material bed squeezing principle with high-speed airflow prevents over-grinding. Energy consumption reduced by 40–50% vs. ball mills.

- Adjustable Fineness: 150–3000 mesh (10–40 μm). Ideal for cosmetics, pharmaceuticals, plastics, and coatings. High whiteness and good particle shape.

- Large Capacity: 1–45 t/h per unit, suitable for continuous large-scale production. Low wear, high reliability, and long service life.

- Eco-Friendly & Energy-Saving: Integrated drying, grinding, and conveying. Airtight design ensures low dust and low noise.

- Smart & Easy Maintenance: PLC automatic control for simple operation. Easy daily maintenance with lifelong spare parts and professional after-sales support.

Industrial Applications

Talc powder from our vertical mill is widely used across industries to enhance performance and reduce costs:

- Plastics: Improves rigidity, heat resistance, dimensional stability, and scratch resistance. Reduces shrinkage and weight. Ideal for automotive parts, appliance housings, and packaging films.

- Paper: Enhances smoothness, opacity, printability, and ink adhesion. Suitable for paper and paperboard production.

- Coatings & Paints: Acts as a white extender and rheology modifier. Improves coverage, sag resistance, and surface finish.

- Cosmetics & Pharmaceuticals: Used in powders, talcum powders, and tablets for its high whiteness, purity, and chemical inertness.

- Rubber & Chemicals: Functions as a reinforcing filler to improve elasticity and wear resistance; also used for stability and adsorption.

PARAMETER TABLE

Working Principle

The motor drives the grinding disc via the reducer. Material enters through the feeding port to the center of the rotating disc, while hot air enters the grinding chamber through the air inlet. Under centrifugal force, the material moves to the edge of the disc and is crushed by the grinding roller as it passes through the circular groove. The crushed material is picked up by high-speed airflow at the disc edge, with large particles falling back onto the disc for re-grinding. The material carried by the airflow then enters the dynamic-static separator, where the rotating rotor causes coarse powder to return to the disc for further grinding, while qualified fine powder is conveyed with the airflow. This fine powder is collected by the collecting device as the final product. For materials containing moisture, drying occurs during contact with the hot air, ensuring the final product meets the required moisture content.

Why Choose Us?

1. Professional Manufacturer

A specialized talc vertical roller mill manufacturer with years of R&D and production expertise, delivering reliable grinding solutions worldwide for soft, inert, and heat-sensitive minerals like talc.

2. Customized Solutions

Tailored talc vertical mill designs based on your capacity, fineness (150–3000 mesh), and budget—from small talc grinding units to full production lines.

3. Strict Quality Control

Rigorous inspections ensure every talc vertical roller mill meets international standards for long-term reliability, low maintenance, and prevention of over-grinding.

4. Comprehensive After-Sales

Global support covering installation guidance, training, and maintenance for automatic talc grinding mills with remote monitoring capabilities.

5. Competitive Price

Factory-direct talc vertical mill supplier offering cost-effective solutions with maximum ROI—no middlemen.

Case

★ Project Name: Nigeria Annual Production 200000 Tons Natural Gypsum Calcination Production Line ★ Type of processed material: natural gypsum ★ Production capacity: ≥ 35t/h ★ Product fineness: 120 mesh, 90% pass

FAQ

1. What materials can your talc vertical mill grind?

Our vertical mill is specially designed for talc grinding, and is also suitable for other non-metallic minerals with similar grindability: chlorite, pyrophyllite, kaolin, gypsum, etc., which have similar hardness and processing requirements as talc.

2. What is the capacity and fineness of your talc vertical mill?

The processing capacity for talc is 1–45 tons per hour.

The fineness of finished talc powder can be adjusted between 150 mesh and 3000 mesh according to application requirements in plastics, paper, coatings, rubber, cosmetics, and chemical industries.

3. How to choose the right model for my talc project?

We need to know: raw material type (natural talc/chlorite), required capacity (tons per hour), finished product fineness (mesh), moisture content of raw material, application scenario (plastics, paper, coatings, cosmetics, etc.), and site conditions.

Our engineers will recommend the most suitable model for you.

4. What is the difference between your talc vertical mill and ball mill or Raymond mill?

Compared to Raymond mills and ball mills, the vertical roller mill, with its integrated design that combines crushing, drying, grinding, and classifying, reduces energy consumption by 40–50% when processing talc, prevents over-grinding due to its material bed squeezing principle, achieves higher output, and can easily handle high-moisture materials, realizing true energy efficiency and intelligent production.

5. Can you provide customized talc vertical mills?

Yes. We can provide customized design and production according to your talc processing requirements, including capacity, fineness, site layout, voltage, and special working conditions (such as high-moisture talc).

6. Do you provide a complete talc powder production line?

Yes, we provide a turnkey talc powder production line, including: crusher for talc pre-crushing, bucket elevator, feeder, talc vertical mill, dust collector, control system, and packaging machine, covering the whole process of talc processing.

7. How about the installation and after-sales service of the talc vertical mill?

We provide on-site installation guidance, commissioning, operator training (talc grinding operation and maintenance), long-term supply of wear-resistant spare parts (suitable for talc grinding), and 24-hour online technical support to ensure stable operation of the production line.

8. What is the delivery time of the talc vertical mill?

Customized production line: about 90–120 working days.

The exact delivery time will be provided after confirming the model and specific requirements.

9. What control system does the talc vertical mill adopt?

It adopts an advanced PLC automatic control system, realizing intelligent control of talc feeding, grinding, classification, and drying. It supports remote monitoring and fault alarm, and is easy to operate.

10. Does your talc vertical mill meet international standards?

Yes, our products comply with international industrial standards and have relevant certifications such as CE and ISO, ensuring quality, safety, and environmental protection requirements, and can be exported to global markets.

11. Looking for a reliable talc vertical mill?

If you are looking for a high-quality, energy-saving, and cost-effective talc vertical mill for plastics, paper, coatings, rubber, cosmetics, or talc powder projects, please feel free to contact us!

We can provide you with:

- Free quotation for talc vertical mill

- Customized solutions for talc processing projects

- Detailed technical parameters and product catalogs

- On-site installation, commissioning, and after-sales service

Contact us now to get the best price and professional support for your talc grinding project!
