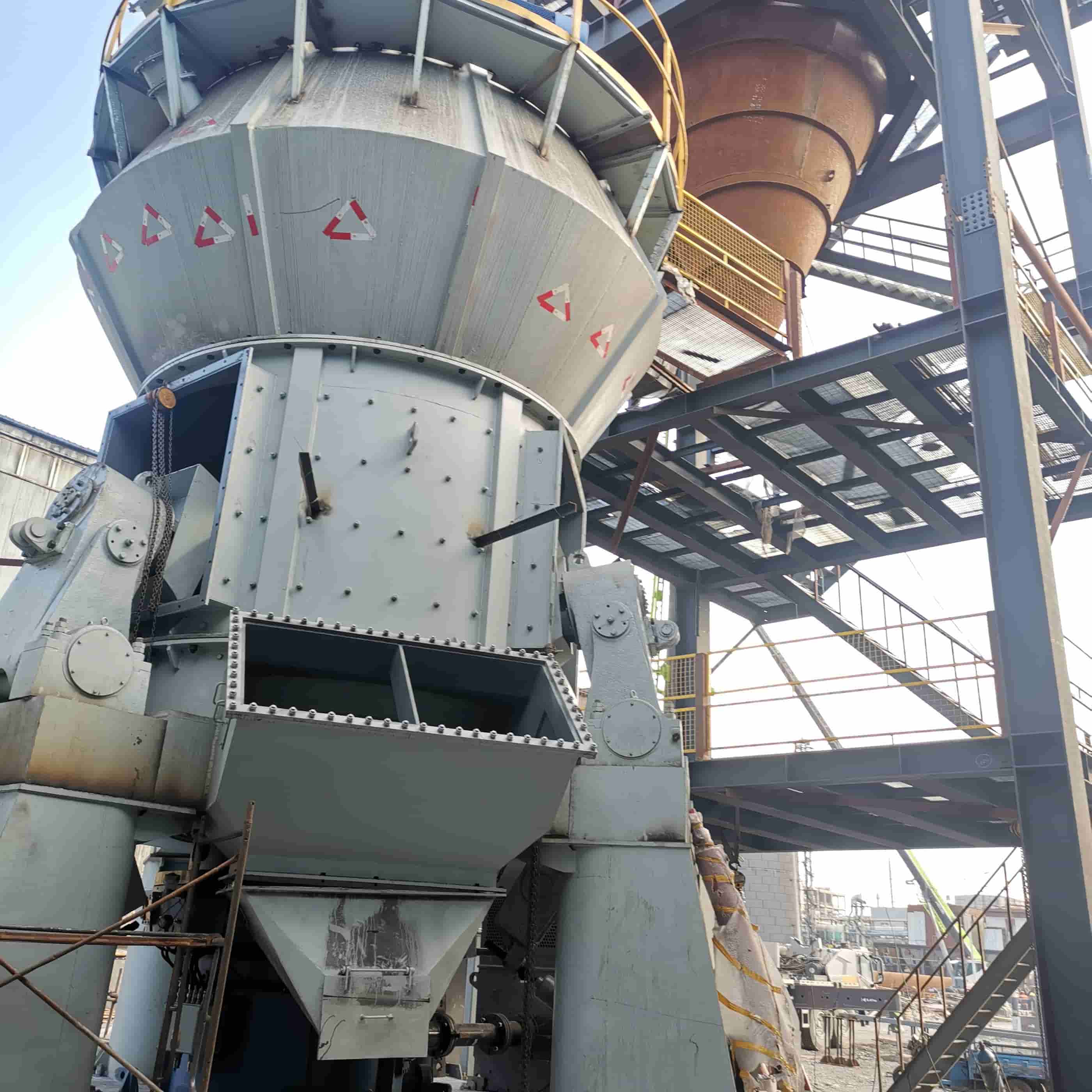

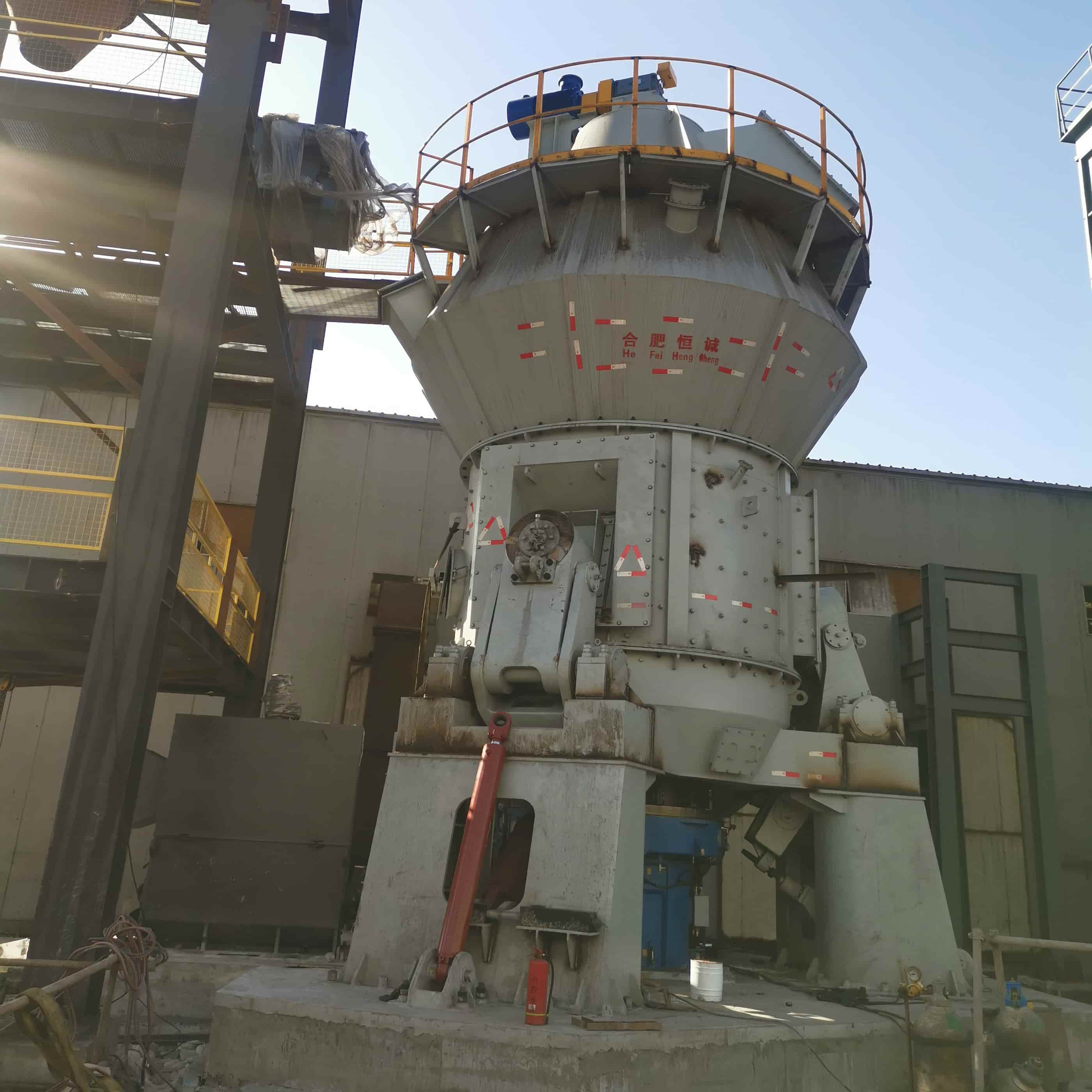

High Efficiency Bauxite Vertical Roller Mill

Bauxite vertical mill is a specialized grinding equipment designed for processing bauxite with Mohs hardness 3-4, widely used in refractory, alumina, and cement industries. It achieves output fineness of 10-40μm with capacity ranging from 1 to 45 t/h.

Technical Parameter

How It Works:

The motor drives the grinding disc to rotate via a reducer. Raw materials fall onto the center of the grinding disc through the feed inlet, while hot air enters the mill from the air intake.

Under centrifugal force, materials move toward the edge of the grinding disc. As they pass through the annular grooves on the disc, they are crushed and pulverized by the grinding rollers.

The pulverized materials are lifted up by high-speed airflow at the air ring around the edge of the grinding disc. Coarse particles fall back onto the disc for re-grinding.

Materials carried by the airflow pass through the dynamic classifier. Driven by rotating rotors, coarse powder falls back to the grinding disc for secondary pulverization, while qualified fine powder is carried out of the mill by the airflow and collected by the powder collecting device as finished products.

Moist materials are dried during contact with hot gas to reach the required moisture content of the finished products.

Bauxite Vertical Mill for Different Applications
Refractory Industry

Bauxite vertical mill produces refractory-grade bauxite powder with controlled particle size distribution for high-alumina refractory bricks and castables. Recommended fineness: 200-325 mesh.

Alumina Production

In Bayer process alumina plants, bauxite vertical mill prepares raw material for digestion, ensuring consistent particle size and maximizing alumina extraction rate.

Cement & Ceramic

Suitable for grinding bauxite as cement additive and ceramic raw material, with adjustable fineness to meet different formulation requirements.

Key Features & Advantages

High Grinding Efficiency – Advanced roller and grinding table design ensures higher output with lower energy consumption compared to traditional ball mills.

Precise Particle Size Control – Built-in multi-rotor classifier system allows accurate adjustment from 200 to 1250 mesh.

Energy Saving & Eco-Friendly – Closed system with negative pressure operation reduces dust emission and power consumption.

Low Wear & Maintenance Cost – Wear-resistant grinding rollers and liners extend service life and reduce downtime.

Integrated Drying Function – Can grind and dry materials with moisture content up to 10–15% in one pass.

Stable & Reliable Operation – Hydraulic pressure system and automatic control ensure smooth, continuous production.

Customizable Configuration – Available in multiple models to meet different capacity requirements from 5 to 50+ tons per hour.

Case

★ Project Name: 2.7 Million Tons/Year Premium Special Steel Pre-Production Lime Production Line ★ Scope of Work: Engineering Design and Equipment Manufacturing Supply for HVM800X Quicklime Grinding System ★ Material Type: Quicklime ★ Output: ≥4.5 t/h ★ Product Fineness: 90% Passing 200 Mesh ★ Commissioning Date: 2022

FAQ

1. What is the capacity range of bauxite vertical mill?

“Bauxite vertical mill capacity ranges from 1 t/h for small-scale grinding to 45 t/h for large industrial production lines.”

2. What is the wear parts lifespan?

“Grinding rollers and table liners are made of high-chromium alloy, with typical service life of 8,000-12,000 hours depending on material abrasiveness.”

3. What fineness can be achieved?

“The finished product fineness is adjustable from 10μm to 40μm, equivalent to approximately 325 to 1250 mesh.”

4. Can this mill process bauxite with high moisture content?

“Yes, the vertical mill can handle bauxite with moisture content up to 5%, with built-in drying capability for higher moisture materials.”

Why Choose Hefei Hengcheng Bauxite Vertical Mill?

Factory Direct Supply: Direct factory pricing with no middle‑man markup.

Export Experience: Served customers across global regions worldwide.

After‑sales Support: Overseas engineers available for on‑site installation and commissioning.

Customization: Capacity and product fineness can be configured according to your raw materials.
