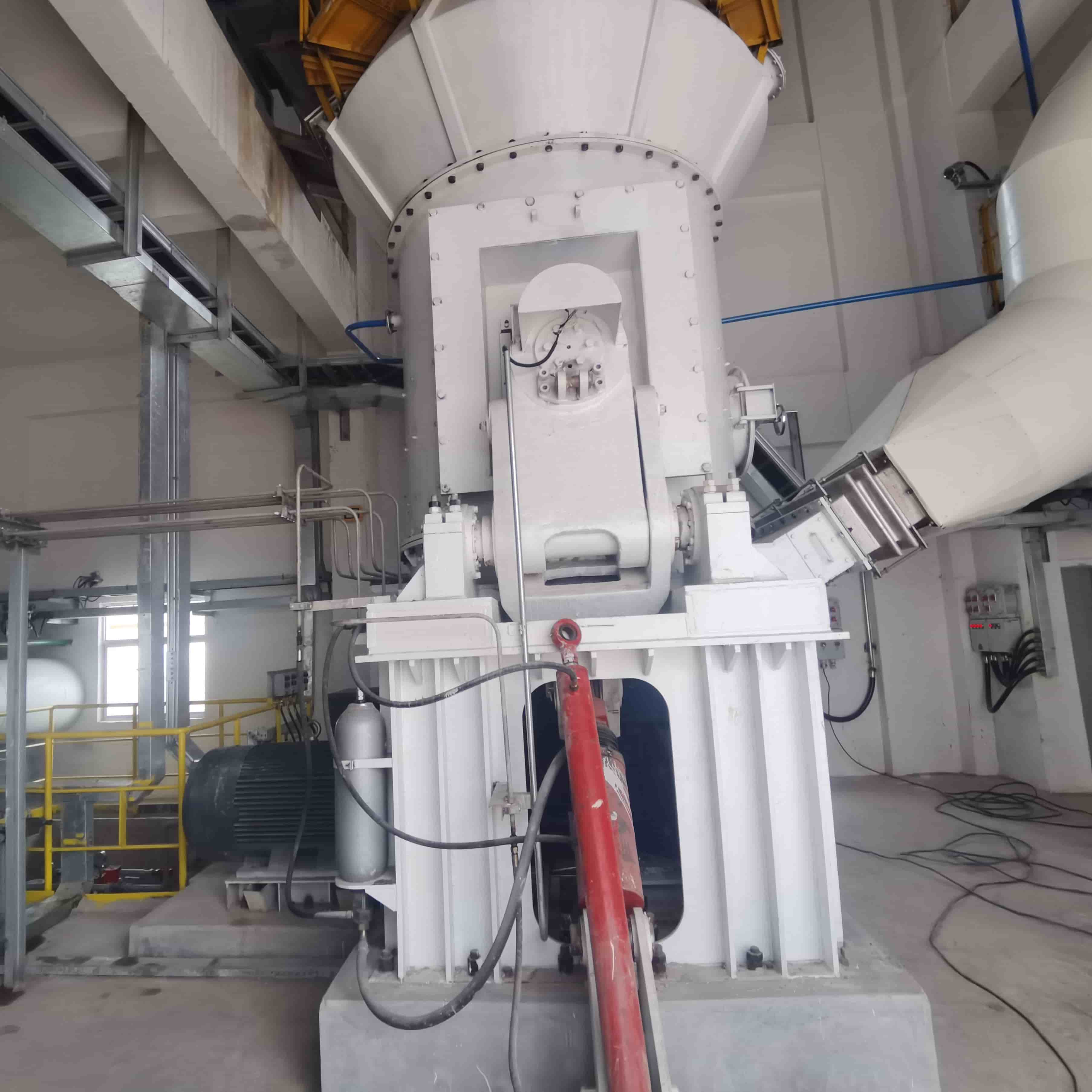

Oil Drilling Grade Vertical Roller Mill For Bentonite Grinding

Oil Drilling Grade Vertical Roller Mill For Bentonite Grinding

• Energy Efficiency: Saves 40%-50% energy compared to traditional ball mills .
• Integrated Grinding & Drying: Handles moisture up to 15%, reducing preprocessing costs .
• Smart Operation: PLC/DCS automatic control system with remote monitoring capability .
• High Output: Single machine capacity ranging from 1 to 700 tons/hour to meet large-scale production needs .

Bentonite Vertical Mill Overview

Our bentonite vertical roller mill is a new-generation grinding equipment developed by Hefei Hengcheng. It integrates drying, grinding, classification and conveying into a single unit.

Specially tailored for bentonite processing, the mill can process raw bentonite into ultra-fine powder ranging from 100 mesh to 3000 mesh. It is widely used in drilling mud, foundry sand, pet litter, waterproof coatings, environmental engineering and other fields.

Compared with traditional ball mills, the vertical design greatly saves floor space by up to 50% and reduces infrastructure investment costs.

HVM type high-fineness vertical grinding specifications and technical parameter tables (non-metallic minerals, chemical industry, etc.)

Key Advantages

High Efficiency & Energy Saving

It features high grinding efficiency and low energy consumption. Its power consumption is 40%-50% lower than that of traditional ball mills.

Lower Operating Cost

The roller sleeve can be reversed for reuse, doubling the service life of wear parts. The hydraulic system enables easy withdrawal of grinding rollers for maintenance, greatly reducing equipment downtime.

Stable Product Quality

Materials stay inside the mill for an extremely short time. Real-time particle size distribution control avoids over-grinding, ensuring uniform and stable quality for high-grade bentonite applications.

High Operational Reliability

Fitted with mechanical limit switches to prevent severe vibration caused by idling operation or metal impurities. The advanced sealing structure achieves zero dust leakage without the need for an additional sealing fan.

Environmental Compliance

The whole system runs under negative pressure to meet the workshop zero-dust emission standard. With low noise and low vibration, it complies with global green manufacturing specifications.

Working Principle of Vertical Mill For Bentonite

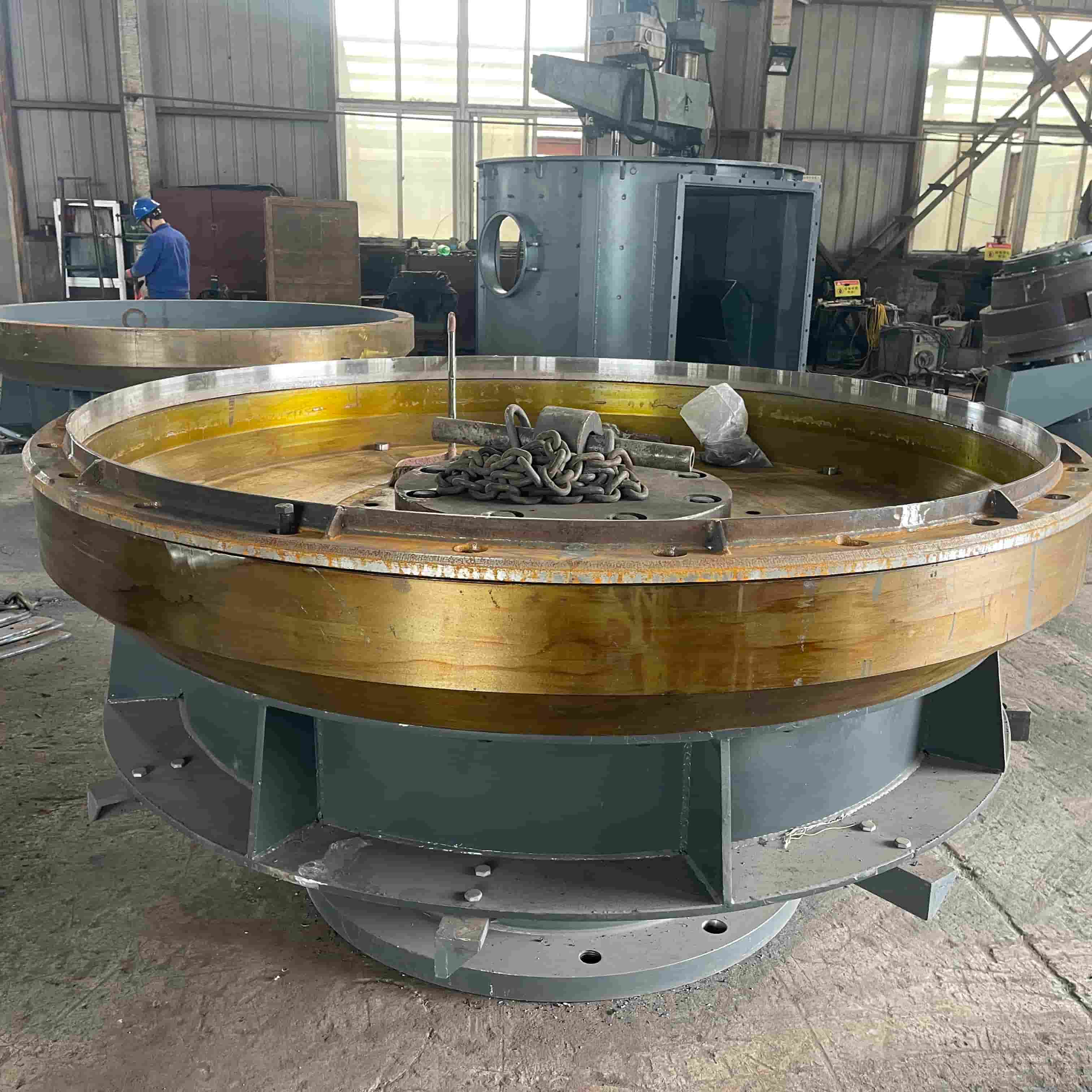

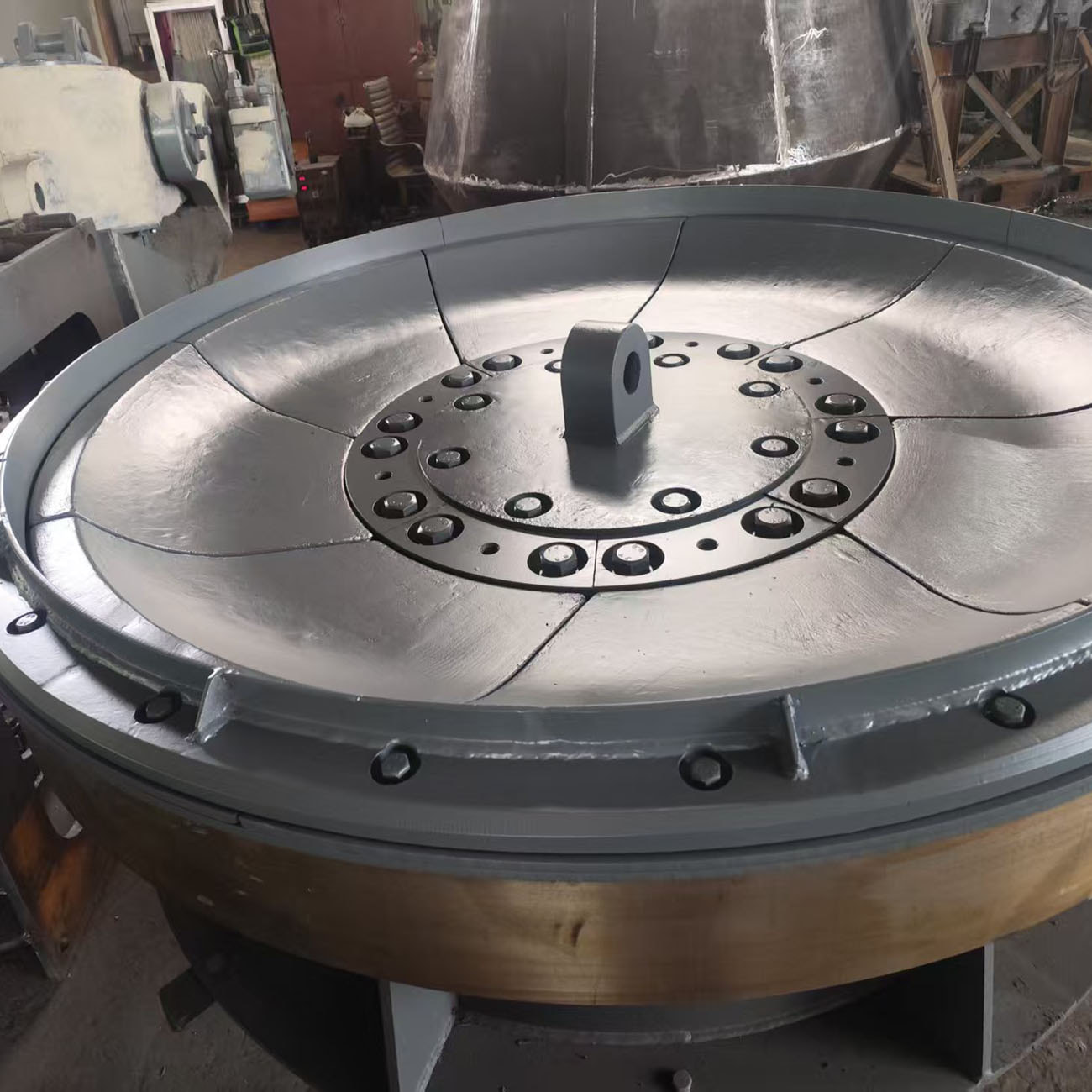

1. The motor drives the grinding disc to rotate via the reducer. Meanwhile, material falls from the feeding port to the center of the rotating grinding disc, and hot air enters the grinding chamber through the air inlet.

2. Under the action of centrifugal force, the material moves to the edge of the grinding disc. When it passes through the circular groove on the disc, it is crushed by the grinding roller.

3. The crushed material is picked up by the high-speed airflow at the edge of the grinding disc. Large particles directly fall back onto the disc for re-grinding.

4. The material carried by the airflow then passes through the dynamic-static separator. Under the action of the rotating rotor, coarse powder falls back to the grinding disc for re-grinding, while qualified fine powder is carried by the airflow.

5. The qualified fine powder is collected by the collecting device and becomes the final product.

6. For materials containing moisture, they are dried during contact with the hot air, ensuring the final product meets the required moisture content.

Application Industries:

Foundry & Metallurgy

Oil Drilling (Drilling Fluid)

Waterproof Materials & Coatings

Fertilizer & Soil Improvement

Cat Litter & Environmental Sanitation

Suitable Materials Beyond Bentonite:

Limestone, Barite, Calcite, Dolomite, Gypsum, Kaolin, Slag, and other non-metallic minerals
