Reliable Medium Capacity 15-40 t/h Vertical Coal Mill

Reliable Medium Capacity 15-40 t/h Vertical Coal Mill

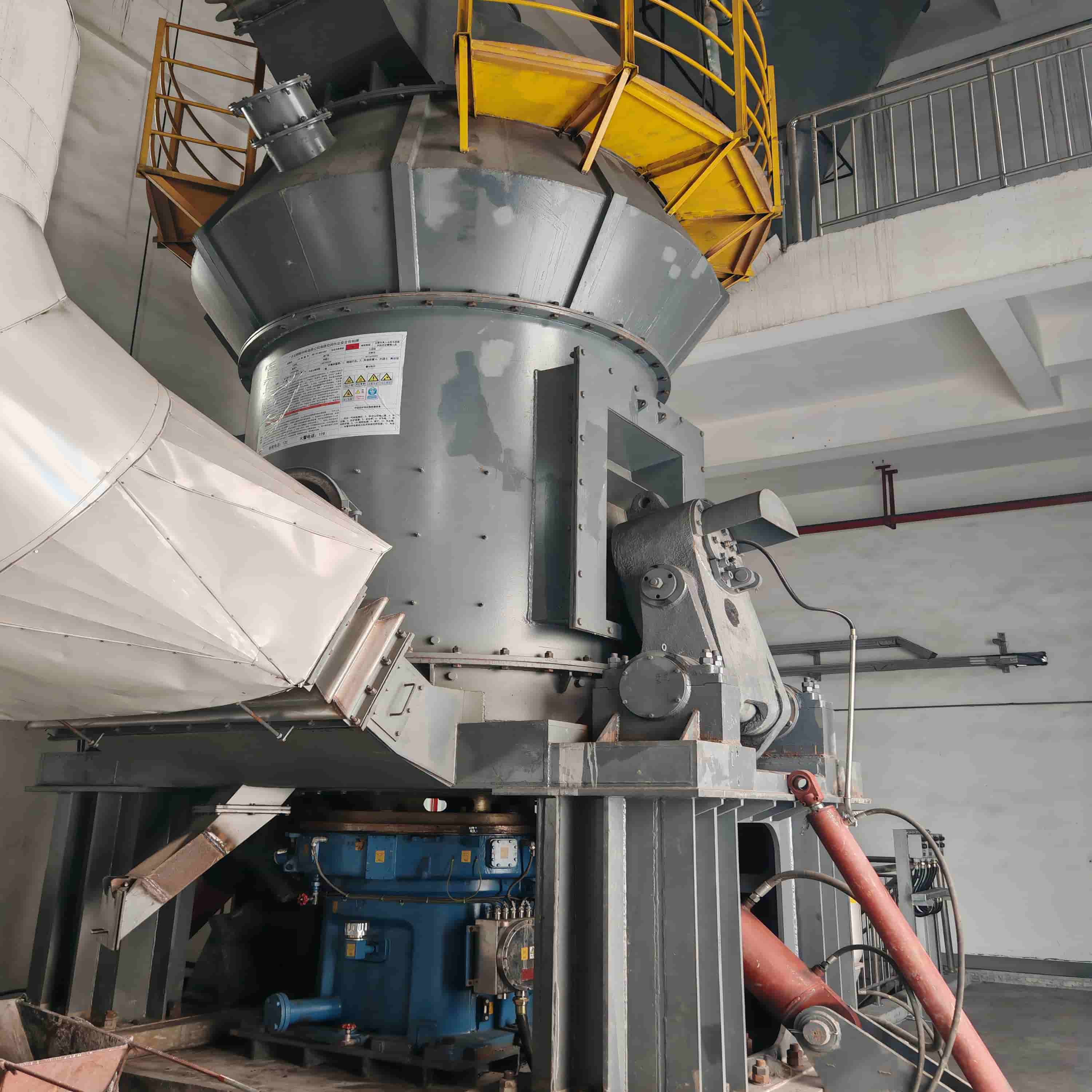

This 15–40 t/h medium vertical coal mill delivers high grinding efficiency and low energy consumption, enabling stable round-the-clock operation. Equipped with wear-resistant rollers, it runs quietly and requires minimal maintenance, helping cut overall operating costs effectively.

Item No :
vertical coal mill
Order(MOQ) :
1
Payment :
Negotiation
Product Origin :
China
Color :
Customize
Shipping Port :
China Ports
Lead Time :
Negotiation
Weight :
Based on actual

Inquiry now

Reliable Medium Capacity 15-40 t/h Vertical Coal Mill

Product Overview

This 15–40 t/h medium vertical coal mill is specially designed for stable and continuous pulverized coal production in cement plants, power plants, lime kilns and industrial boiler systems. Featuring a large air volume design, it is an advanced grinding unit integrating drying, grinding, conveying and powder classification. With low energy consumption, adjustable coal fineness and easy maintenance, it can effectively cut overall operating costs.

Key Customer Advantages

✅ Optimized for Medium-Capacity Production Lines

Tailored for projects with an output of 15–40 t/h. Perfectly matched in specification with neither excess capacity nor insufficient performance.

✅ Low Maintenance Costs

Fitted with wear-resistant rollers and liners for a longer service life. Rollers can be inspected and replaced easily.

✅ High Energy Efficiency

Adopting vertical roller mill technology, it cuts power consumption by 25%–30% compared with ball mills.

✅ Stable Operation & Low Vibration

Built-in damper ring and optimized air duct design greatly reduce vibration, ensuring reliable round-the-clock operation.

✅ Adjustable Fineness

The classifier speed can be adjusted quickly to meet diverse combustion requirements (e.g., 80μm residue: 3%–12%).

✅ Small Footprint

The vertical structure saves floor space, ideal for plant retrofits and new medium-sized production lines.

HVM pulverized coal vertical mill specifications, technical parameters

Model Specification	HVM1100M	HVM1250M	HVM1300M	HVM1400M	HVM1500M
Capacity	5～8 t/h	8~10 t/h	10~12 t/h	12~15 t/h	15~20 t/h
Main Motor Power	90 kW	110/132 kW	185/200 kW	200/220 kW	220/250 kW
Raw coal moisture	<15%
Pulverized coal fineness	R0.08=2%～12%
Pulverized coal moisture	≤1% (Under the premise of meeting the drying requirements)
Model Specification	HVM1700M	HVM1900M	HVM2200M	HVM2400M	HVM2800
Capacity	20~25 t/h	25~35 t/h	35~45 t/h	45~55 t/h	70~90
Main Motor Power	315/355 kW	400/450 kW	450/500 kW	560/630 kW	900/1120
Description	Note: 1. The original coal Hastelloy grindability coefficient ≥ 55; 2.can be used for grinding anthracite, fineness of coal powder (R0.08) ≤ 3% (but the capacity will decrease accordingly)

HVM pulverized coal vertical mill specifications, technical parameters (Metallurgy, heat, energy industry)

Model specification	HVM800M	HVM1100M	HVM1250M		HVM1300M		HVM1400M		HVM1500M
Capacity	3～5 t/h	7～10 t/h	9~12 t/h		13~17 t/h		14~19 t/h		18~24 t/h
Main Motor Power	45/55 kW	90/110 kW	110/132kW		185/200 kW		200/220 kW		220/250kW
Raw coal moisture	<15%
Pulverized coal fineness	R0.08=10%～15% (fineness of coal powder for blast furnace coal injection: 200 mesh 80% pass)
Pulverized coal moisture	1%～6% (Under the premise of meeting the drying requirements)
Model specification	HVM1700M	HVM1900M		HVM2200M		HVM2400M		HVM2800M
Capacity	23~30 t/h	29~36 t/h		36~45 t/h		45~55 t/h		70~90
Main Motor Powerr	280/315kW	355/400 kW		450/500 kW		560/630 kW		900/1120
Description	Note: The original coal Hastelloy grindability coefficient HGI：55～70

Working Principle of Vertical Mill

1. The motor drives the grinding disc to rotate via the reducer. Meanwhile, material falls from the feeding port to the center of the rotating grinding disc, and hot air enters the grinding chamber through the air inlet.

2. Under the action of centrifugal force, the material moves to the edge of the grinding disc. When it passes through the circular groove on the disc, it is crushed by the grinding roller.

3. The crushed material is picked up by the high-speed airflow at the edge of the grinding disc. Large particles directly fall back onto the disc for re-grinding.

4. The material carried by the airflow then passes through the dynamic-static separator. Under the action of the rotating rotor, coarse powder falls back to the grinding disc for re-grinding, while qualified fine powder is carried by the airflow.

5. The qualified fine powder is collected by the collecting device and becomes the final product.

6. For materials containing moisture, they are dried during contact with the hot air, ensuring the final product meets the required moisture content.

vertical coal mill

Typical Applications

Lime and dolomite calcination plants
Cement production lines (clinker capacity: 500–2500 t/d)
Metallurgical pulverized coal injection systems
Pulverized coal preparation for industrial boilers

Captive power plants

Case

★ Project Name: 600t/d Lime Rotary Kiln Production Line

★ Project Scope: Engineering Design and Equipment Supply for HVM1300M Vertical Coal Mill Preparation System

★ Material Type: High-Volatile Bituminous Coal

★ Output: ≥12t/h

★ Product Fineness: 90% passing 200 mesh

★ Special Feature: Cold highland region

★ Commissioning Year: 2020

FAQ

1. What materials can your vertical mill grind?

Our vertical mill is specially designed for coal grinding, and is also suitable for grinding various coal-based materials and related fuels, such as bituminous coal, anthracite, lignite, coal gangue, coal slime, and other materials with similar grindability to coal.

2. What is the capacity and fineness of your vertical mill?

For coal powder processing, the capacity ranges from 3 to 200 tons per hour, and finished coal powder fineness can be adjusted between 200 mesh and 1250 mesh according to customer’s application requirements (such as power plants, cement plants, boilers).

3. How to choose the right model?

We need to know your raw coal type (bituminous coal/anthracite/lignite), required capacity, finished coal powder fineness, moisture content of raw coal, application scenario (power generation, cement production, boiler combustion) and site conditions. Our engineers will recommend the most suitable model.

4. What is the difference between vertical mill and ball mill?

For coal grinding, the vertical mill features higher efficiency (increased by 30%–50%), lower energy consumption, larger capacity, smaller footprint, more environmental protection (less dust and noise), and easier maintenance than ball mill, which is more suitable for large-scale coal powder production.

5. Can you provide customized vertical mill?

Yes, we provide customized design and production according to customer’s coal processing requirements, including capacity, coal powder fineness, raw coal type, site layout and special working conditions (such as high-moisture coal slime).

6. Do you provide complete production line?

Yes, we provide turnkey coal powder production line including crusher for coal pre-crushing, bucket elevator, feeder, coal powder vertical mill, dust collector, control system and packaging machine, covering the whole process of coal grinding and powder making.

7. How about installation and after-sales service?

We provide on-site guidance for installation, debugging, operator training (coal grinding operation and maintenance), long-term supply of wear-resistant spare parts suitable for coal grinding, and 24-hour online technical support to ensure stable operation of the production line.

8. What is the delivery time?

For standard coal powder vertical mill models, delivery time is about 90-120 working days. For customized coal powder production line, it is about 120 working days.

9. What control system does the vertical mill use?

It adopts advanced PLC automatic control system with touch screen, realizing intelligent and unmanned operation of coal feeding, grinding, classification and drying, and supporting remote monitoring and fault alarm.

10. Do you have certification?

Yes, our coal powder vertical mill meets international industrial standards and has relevant certifications such as CE and ISO, ensuring quality, safety and environmental protection requirements, and can be exported to global markets.

11. Looking for a reliable coal powder vertical mill?

If you are looking for a high-quality, energy-saving and cost-effective coal powder vertical mill for power plants, cement plants, boiler combustion or coal powder production projects, please feel free to contact us!

We can provide you with:

1) Free quotation for coal vertical mill

2) Customized solutions for coal processing projects

3) Detailed technical parameters and product catalogs

4) On site installation guidance, commissioning and after-sales service

5) Contact us now to get the best price and professional support for your coal grinding project!
