Professional Calcite Vertical Roller Mill Manufacturer

Professional Calcite Vertical Roller Mill Manufacturer

Our calcite vertical roller mill is a high-efficiency grinding solution designed for ultra-fine calcite powder production, delivering stable performance and precise particle size control from 200 to 1250 mesh.

Item No :
Calcite Vertical Roller Mill
Order(MOQ) :
1
Payment :
Negotiation
Product Origin :
Hefei,China
Color :
Customize
Shipping Port :
China Ports
Lead Time :
Negotiation
Weight :
Based on actual

Inquiry now

Professional Calcite Vertical Roller Mill Manufacturer

The calcite vertical roller mill is an efficient grinding solution for producing fine and ultra-fine calcite powder from 200 to 1250 mesh. Designed for ground calcium carbonate (GCC) production, this vertical roller mill integrates grinding, powder classification, and drying into one compact system. It offers high grinding efficiency, lower energy consumption, stable operation, and easy maintenance, making it suitable for calcite powder processing plants seeking reliable and cost-effective production.

Key Features & Advantages

High Grinding Efficiency – Advanced roller and grinding table design ensures higher output with lower energy consumption compared to traditional ball mills.

Precise Particle Size Control – Built-in multi-rotor classifier system allows accurate adjustment from 200 to 1250 mesh.

Energy Saving & Eco-Friendly – Closed system with negative pressure operation reduces dust emission and power consumption.

Low Wear & Maintenance Cost – Wear-resistant grinding rollers and liners extend service life and reduce downtime.

Integrated Drying Function – Can grind and dry materials with moisture content up to 10–15% in one pass.

Stable & Reliable Operation – Hydraulic pressure system and automatic control ensure smooth, continuous production.

Customizable Configuration – Available in multiple models to meet different capacity requirements from 5 to 50+ tons per hour.

HVM type high-fine vertical grinding specifications, technical parameter table (electric desulfurization)

Model specification	HVM1250X	HVM1300X	HVM1500X	HVM1700X	HVM1900X	HVM2400X	HVM2500X	HVM2800X
Capacity	6~9 t/h	9~13 t/h	15~20 t/h	20~25 t/h	26~32 t/h	36~40 t/h	45～55 t/h	56~80 t/h
Grinding material moisture	≤5%
Limestone fineness	325 mesh (44um) 90% passed
Main Motor Power	110/132 kW	185/200 kW	250/280 kW	355/400 kW	450/500 kW	560/630 kW	710/800kW	1120/1250kW
Description	Note: Limestone Bond Index: ≤13kWh/t

How It Works:

The motor drives the grinding disc to rotate via a reducer. Raw materials fall onto the center of the grinding disc through the feed inlet, while hot air enters the mill from the air intake.

Under centrifugal force, materials move toward the edge of the grinding disc. As they pass through the annular grooves on the disc, they are crushed and pulverized by the grinding rollers.

The pulverized materials are lifted up by high-speed airflow at the air ring around the edge of the grinding disc. Coarse particles fall back onto the disc for re-grinding.

Materials carried by the airflow pass through the dynamic classifier. Driven by rotating rotors, coarse powder falls back to the grinding disc for secondary pulverization, while qualified fine powder is carried out of the mill by the airflow and collected by the powder collecting device as finished products.

Moist materials are dried during contact with hot gas to reach the required moisture content of the finished products.

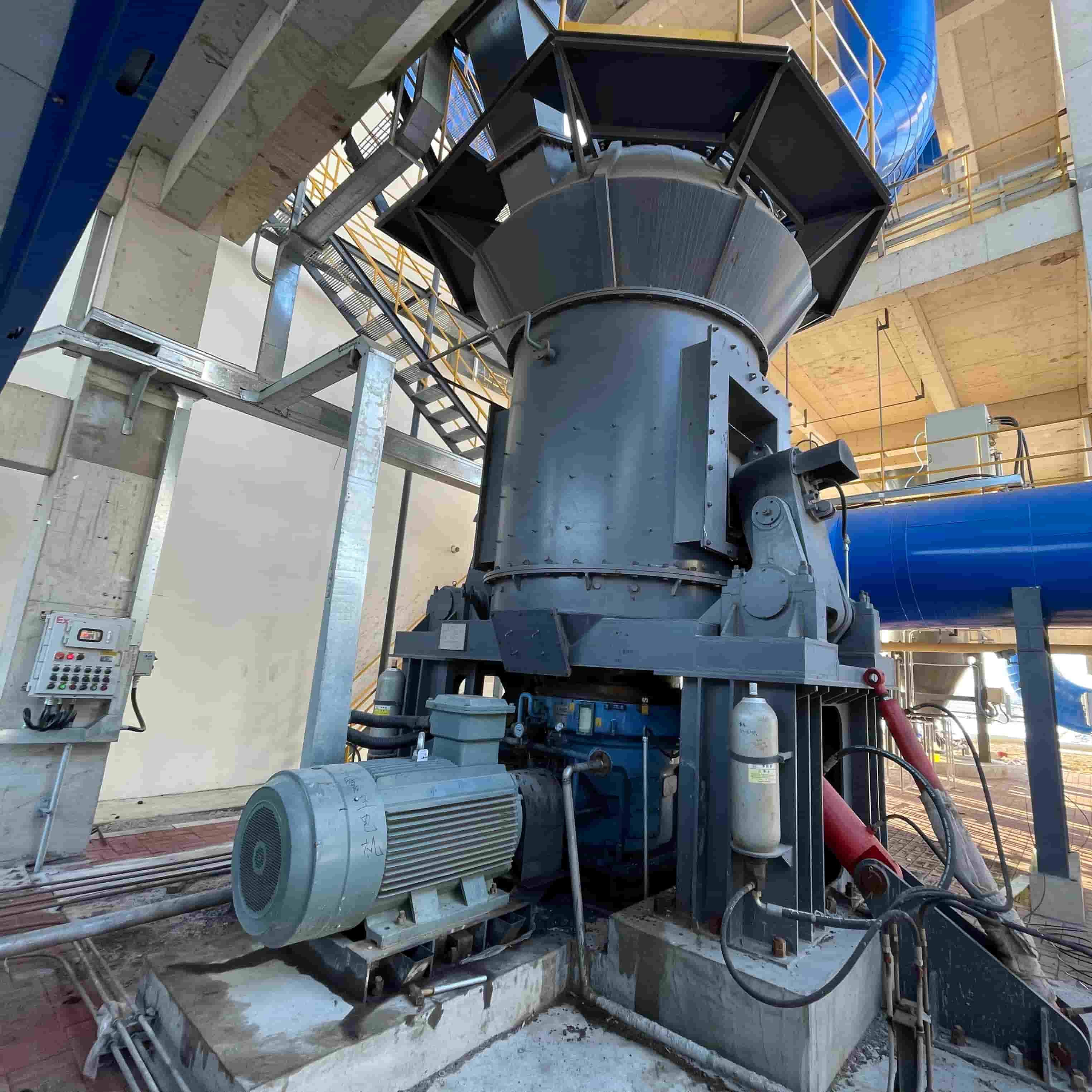

Vertical Roller Mill for Calcium Carbonate

Application Areas

Calcium Carbonate / GCC Powder – For paint, coating, paper making, plastics, rubber, and adhesives.

Calcite Powder Processing – 325 mesh to 1250 mesh fine and ultra-fine powder.

Other Minerals – Suitable for grinding limestone, dolomite, barite, talc, gypsum, and kaolin.

Case

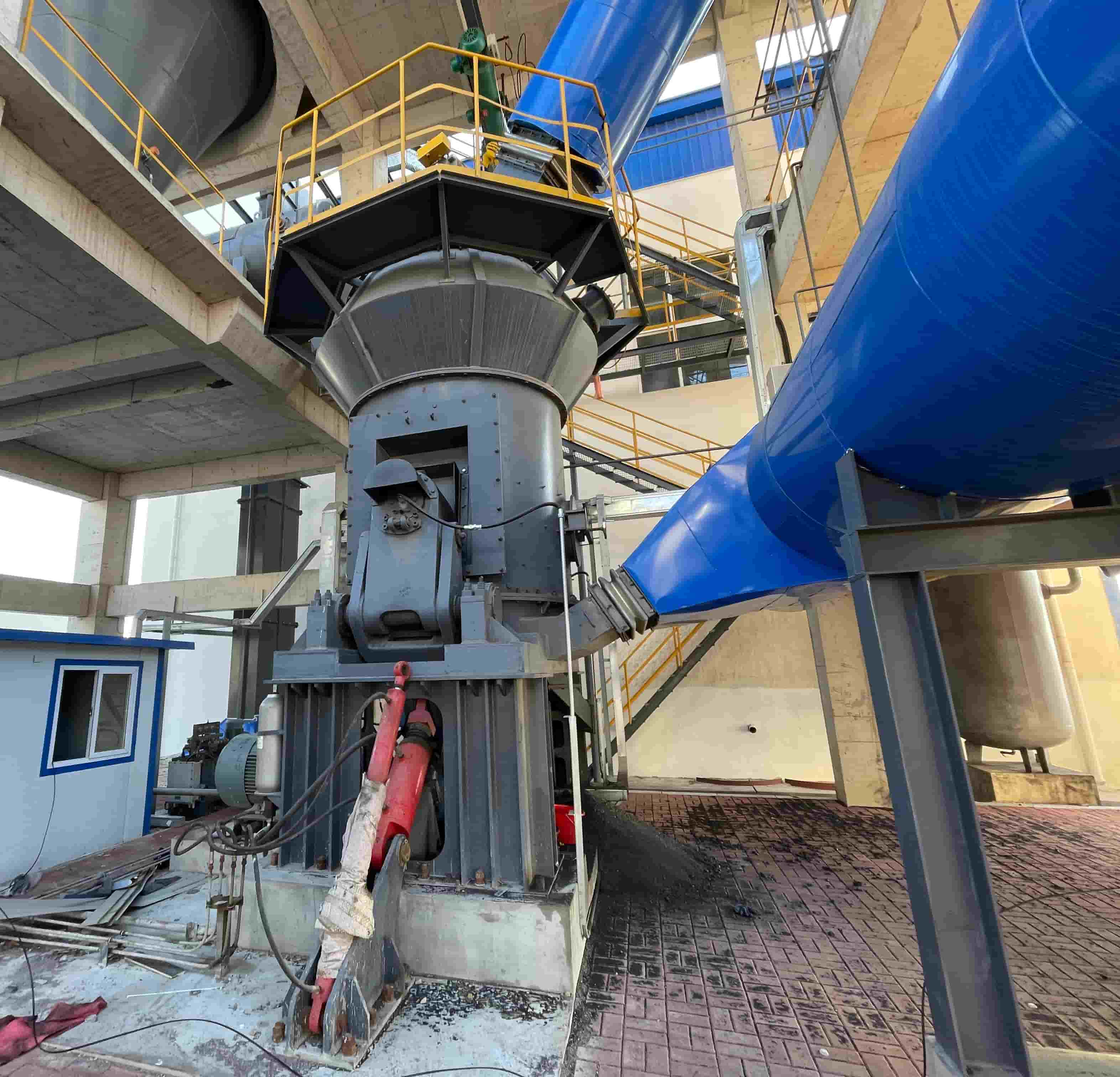

Ultrafine vertical roller mill calcium carbonate

★ Project Name: 2.7 Million Tons/Year Premium Special Steel Pre-Production Lime Production Line

★ Scope of Work: Engineering Design and Equipment Manufacturing Supply for HVM800X Quicklime Grinding System

★ Material Type: Quicklime

★ Output: ≥4.5 t/h

★ Product Fineness: 90% Passing 200 Mesh

★ Commissioning Date: 2022

Why Choose Us ?

Factory Direct Supply – Competitive ex-works price with no middleman markup.

Customized Solutions – Tailored equipment configuration based on your raw material, capacity, and fineness requirements.

Complete After-Sales Service – Installation guidance, commissioning, operator training, and lifetime technical support.

Global Delivery Experience – Successful projects in Spain, Nigeria, Pakistan,India, Turkey, Egypt, Vietnam, Indonesia, Mexico, and more.

Get a Free Quote

Tell us your target capacity and desired fineness. Our engineers will provide a customized solution and layout for your specific project. Contact us today for a free consultation!
