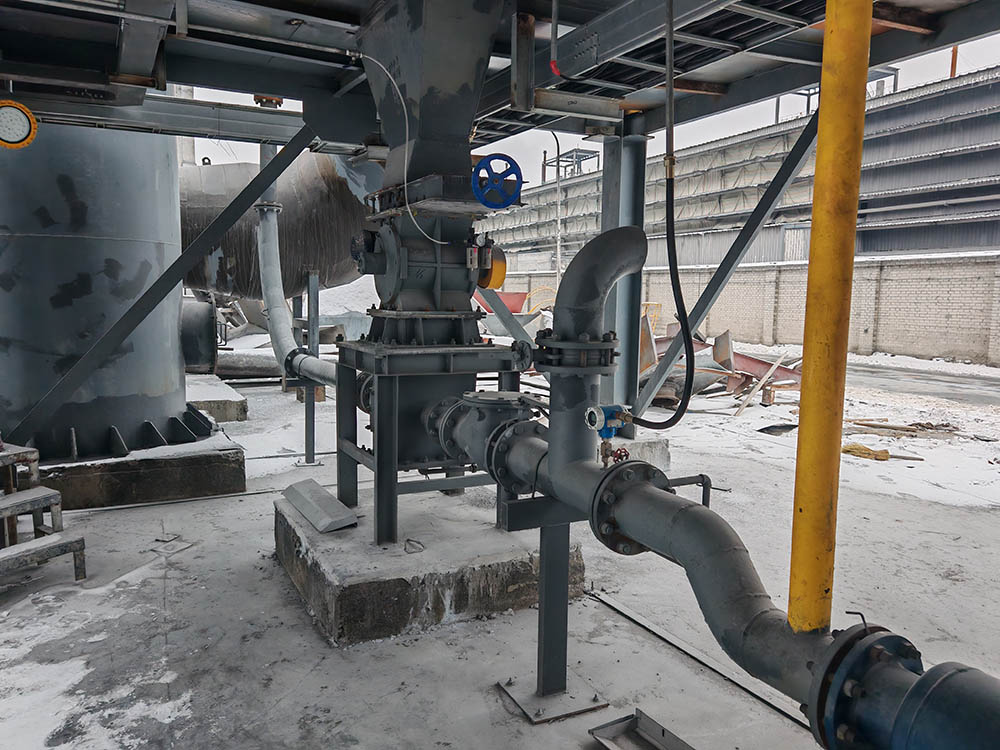

Dilute Phase Pneumatic Conveying System

Low Pressure Pneumatic Jet Conveying Pump​

A cost-effective, energy-saving and dust-free solution for powder material conveying, suitable for medium and short-distance transportation in multiple industries.

Product Overview

Our positive pressure dilute-phase pneumatic conveying jet pump system is a high-efficiency material handling equipment, adopting low-pressure continuous conveying technology. It realizes fully enclosed, dust-free and low-abrasion powder conveying, with compact structure, easy maintenance and stable operation. It is widely used in building materials, metallurgy, chemical industry, food, pharmaceutical and other industries, solving the pain points of traditional conveying methods such as dust pollution, high wear and difficult maintenance.

Core Advantages

Dust-Free & Environmentally Friendly: Fully enclosed conveying design, no dust leakage, in line with international environmental protection standards, protecting the working environment and operator health.

Energy-Saving & High Efficiency: Adopts low-pressure conveying technology, low power consumption, high conveying efficiency, reducing enterprise operation costs.

Simple Structure & Easy Maintenance: No complex transmission parts, small floor space, easy installation and daily maintenance, reducing maintenance time and cost.

Stable Operation & Low Wear: Reasonable structural design, low material wear, long service life of equipment, ensuring continuous and stable production.

Application Scenarios​

Our positive pressure dilute-phase pneumatic conveying jet pump system is widely used in various industries that need powder conveying, solving the problem of efficient and clean material transportation:​

• Building Materials Industry: Conveying cement, fly ash, sand powder, lime powder, etc.​

• Metallurgical Industry: Conveying coal powder, ore powder, slag powder, etc.​

• Chemical Industry: Conveying chemical powder, pigment, additive, etc.​

• Food & Pharmaceutical Industry: Conveying flour, starch, medicine powder, etc. (food-grade material optional)​

• Other Industries: Conveying coal ash, gypsum powder, etc. in power plants.

Working Principle

The PJP jet pump pneumatic conveying system consists of a jet pump, a pneumatic butterfly valve, a pump-top hopper, a manual screw gate, and an air supply unit (primarily a Roots blower).

Powdery and granular materials pass sequentially through the manual screw gate, the pump-top hopper, and the pneumatic butterfly valve to enter the jet pump. As compressed air passes through the nozzle inside the pump body, the resulting high-speed airflow creates a negative pressure within the pump. This causes the material in the pump-top hopper to mix with the high-speed airflow. When this gas-solid mixture passes through the diffuser of the injection device, the kinetic energy of the high-speed airflow is converted into static pressure energy, ultimately transporting the material to its destination through the delivery pipe.

The manual screw gate is used for commissioning and maintenance, while the pneumatic butterfly valve controls the start and stop of material conveying and will automatically close in the event of abnormal system pressure.

Two Operating Modes:

1.  Under-silo Installation: When the jet pump is installed at the bottom of a silo, it utilizes the pressure from the material column in the silo for conveying. In this mode, the conveying capacity fluctuates with changes in the material height within the silo.

2.  With Rotary Airlock: When the jet pump is equipped with a rotary airlock, the conveying capacity is determined by the discharge rate of the airlock, resulting in more stable conveying.

PJP type positive pressure dilute phase pneumatic conveying jet pump

Specification model	PJP-1	PJP-2	PJP-3
Feed pipe diameter (inches)	3～6	7～10	12～16
Delivery volume (t/h)	1～9	10～40	41～80

Suitable for cement, fly ash, coal powder, mineral powder and chemical powder applications, it improves efficiency, reduces energy consumption and solves the maintenance problems of traditional conveying equipment.



Case

★ Scope of Work:  Design, manufacturing, and supply of one (1) set of PJP-0A Jet Pump Copper-Containing Waste Sand Pneumatic Conveying System ★ Conveying Capacity: ≥ 0.8 t/h  ★ Horizontal Distance: 30 m ★ Vertical Height: 8 m



Why Choose Us?

We are a professional manufacturer of pneumatic conveying equipment, specializing in R&D, production and global after-sales service. We are committed to providing high-quality, cost-effective conveying solutions for worldwide customers.

Our Dilute Phase Pneumatic Conveying Jet Pump stands out with:

1. Superior Efficiency: Engineered for high-speed, stable conveying of powders and granules, significantly improving operational efficiency.

2. Low Maintenance: Featuring a simple structure with no complex moving parts, reducing downtime and maintenance costs effectively.

3. Energy Saving: Optimized air circuit design reduces energy consumption by up to 15-25%, lowering your overall operational costs.

4. Reliable Support: Backed by 24-hour technical support and strict quality inspection, ensuring long service life and trouble-free operation.
