Low Pressure Pneumatic Jet Conveying Pump​

Low Pressure Pneumatic Jet Conveying Pump​

Are you looking for a cost-effective, easy-to-operate solution for powder and granular material conveying? Our Dilute Phase Pneumatic Conveying Jet Pump is engineered to deliver efficient, continuous conveying performance, with simple structure, low maintenance cost and strong adaptability, perfectly meeting the industrial conveying needs of small to medium-sized enterprises and large-scale plants.​

Product Overview​

Working Principle

The PJP jet pump pneumatic conveying system consists of a jet pump, a pneumatic butterfly valve, a pump-top hopper, a manual screw gate, and an air supply unit (primarily a Roots blower).

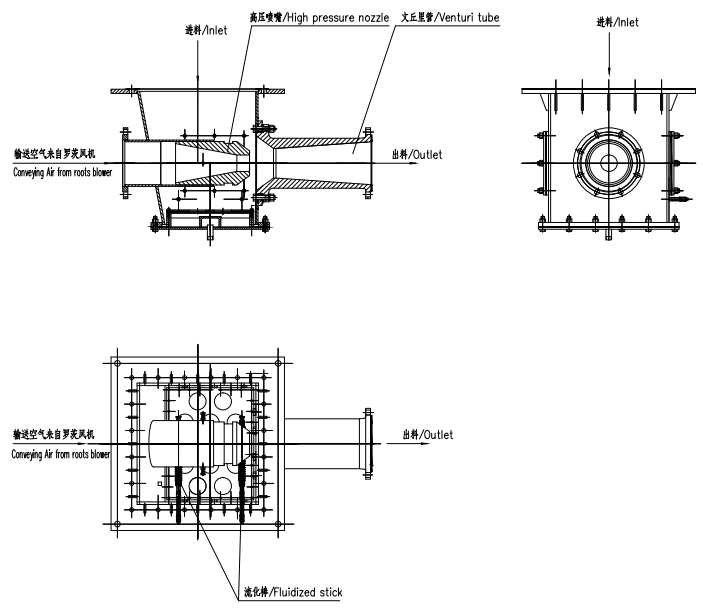

Powdery and granular materials pass sequentially through the manual screw gate, the pump-top hopper, and the pneumatic butterfly valve to enter the jet pump. As compressed air passes through the nozzle inside the pump body, the resulting high-speed airflow creates a negative pressure within the pump. This causes the material in the pump-top hopper to mix with the high-speed airflow. When this gas-solid mixture passes through the diffuser of the injection device, the kinetic energy of the high-speed airflow is converted into static pressure energy, ultimately transporting the material to its destination through the delivery pipe.

The manual screw gate is used for commissioning and maintenance, while the pneumatic butterfly valve controls the start and stop of material conveying and will automatically close in the event of abnormal system pressure.

Two Operating Modes:

1.  Under-silo Installation: When the jet pump is installed at the bottom of a silo, it utilizes the pressure from the material column in the silo for conveying. In this mode, the conveying capacity fluctuates with changes in the material height within the silo.

2.  With Rotary Airlock: When the jet pump is equipped with a rotary airlock, the conveying capacity is determined by the discharge rate of the airlock, resulting in more stable conveying.

PJP type positive pressure dilute phase pneumatic conveying jet pump

Specification model	PJP-1	PJP-2	PJP-3
Feed pipe diameter (inches)	3～6	7～10	12～16
Delivery volume (t/h)	1～9	10～40	41～80

Suitable for cement, fly ash, coal powder, mineral powder and chemical powder applications, it improves efficiency, reduces energy consumption and solves the maintenance problems of traditional conveying equipment.



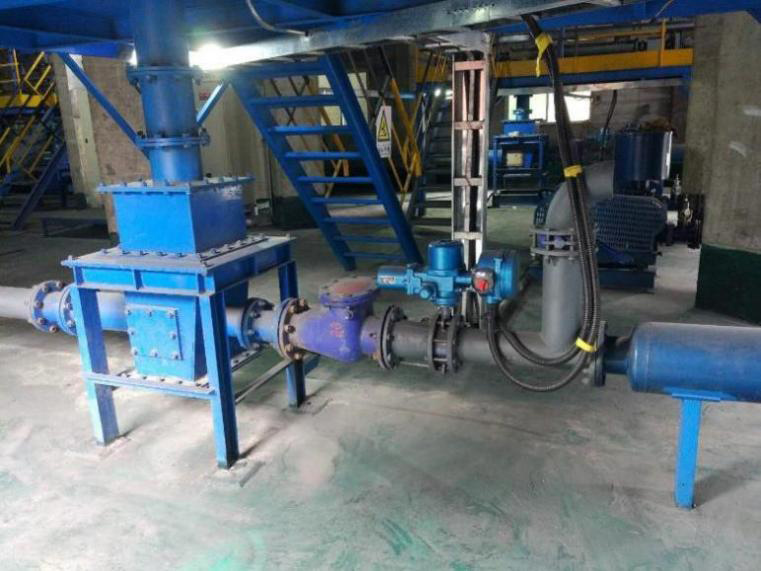

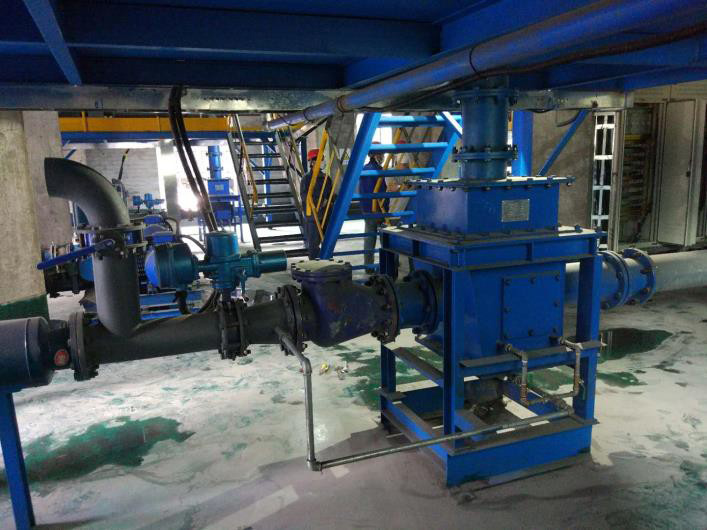

Case

★ End User: Philippine Cement Company   ★ Scope of Work: Retrofit design and equipment manufacturing supply for 2 sets of PJP-1C and PJP-2C jet pump fly ash pneumatic conveying systems   ★ Conveying Capacity: ≥20t/h, ≥30t/h   ★ Horizontal Distance: 20m, 110m   ★ Vertical Height: 5m, 20m ★ Conveying Capacity: 3t/h; 5.4t/h; 7.2t/h; 9.5t/h; 10.8t/h   ★ Horizontal Distance: 31m; 51m; 101m; 47m; 91m  ★ Vertical Height: 20m; 11m; 11m; 11m; 11m



Why Choose Us?

We are a professional manufacturer of pneumatic conveying equipment, specializing in R&D, production and global after-sales service. We are committed to providing high-quality, cost-effective conveying solutions for worldwide customers.

Our Dilute Phase Pneumatic Conveying Jet Pump stands out with:

1. Superior Efficiency: Engineered for high-speed, stable conveying of powders and granules, significantly improving operational efficiency.

2. Low Maintenance: Featuring a simple structure with no complex moving parts, reducing downtime and maintenance costs effectively.

3. Energy Saving: Optimized air circuit design reduces energy consumption by up to 15-25%, lowering your overall operational costs.

4. Reliable Support: Backed by 24-hour technical support and strict quality inspection, ensuring long service life and trouble-free operation.



Contact Us

Interested in our Dilute Phase Pneumatic Conveying Jet Pump or need a customized solution? Contact us today.

Our professional team will reply to you within 24 hours with detailed product information, quotations and technical support. We look forward to solving your material conveying challenges!
