Positive Pressure Pneumatic Conveying Bin Pump

Name: Positive Pressure Pneumatic Conveying Bin Pump
Availability: InStock

Our dense phase pneumatic conveying bin pump system ensures stable, energy-saving and low-wear powder material transfer across industrial applications, supporting highly efficient and reliable long-distance conveying with consistent performance.

Item No :
Pneumatic conveying silo pump
Order(MOQ) :
1
Payment :
Negotiation
Product Origin :
Hefei,China
Color :
Customize
Shipping Port :
Negotiation
Lead Time :
Negotiation
Weight :
Based on actual

Inquiry now

Positive Pressure Pneumatic Conveying Bin Pump

Welcome to our dedicated page for the Dense Phase Pneumatic Conveying Bin Pump System — your trusted, energy-efficient solution for the transportation of bulk powders and solid materials across various industrial sectors. Combining cutting-edge technology, reliable performance, and user-friendly operation, our system helps you streamline material handling, boost productivity, and lower overall operating costs.

Why Choose Our Dense Phase Pneumatic Conveying Bin Pump System?

• High Efficiency & Energy Saving

Leveraging advanced dense phase conveying technology, our system features low air consumption and minimal energy use, with conveying efficiency up to 30% higher than conventional equipment. It supports long-distance, high-capacity material transport with optimal energy utilization.

• Stable & Long-Lasting

Constructed from high-grade wear-resistant materials, the bin pump offers excellent corrosion resistance and extended service life. The system operates smoothly with a low failure rate, cutting down maintenance time and expenses for your business.

• Low Wear & Eco-Friendly

Featuring a fully enclosed conveying structure, the system eliminates dust leakage and complies with strict environmental regulations. Low-velocity dense phase flow minimizes abrasion to pipelines and components, prolonging the service life of the entire conveying line.

• Intelligent & Easy to Operate

Equipped with an intelligent control system, it enables fully automatic feeding, conveying, and discharging. This reduces manual intervention, enhances operational efficiency, and prevents human errors.

• Fully Customizable Solutions

We provide tailored designs based on your specific requirements, including conveying distance, material characteristics, and throughput capacity. Our customized solutions integrate seamlessly with your production line to achieve ideal conveying performance.

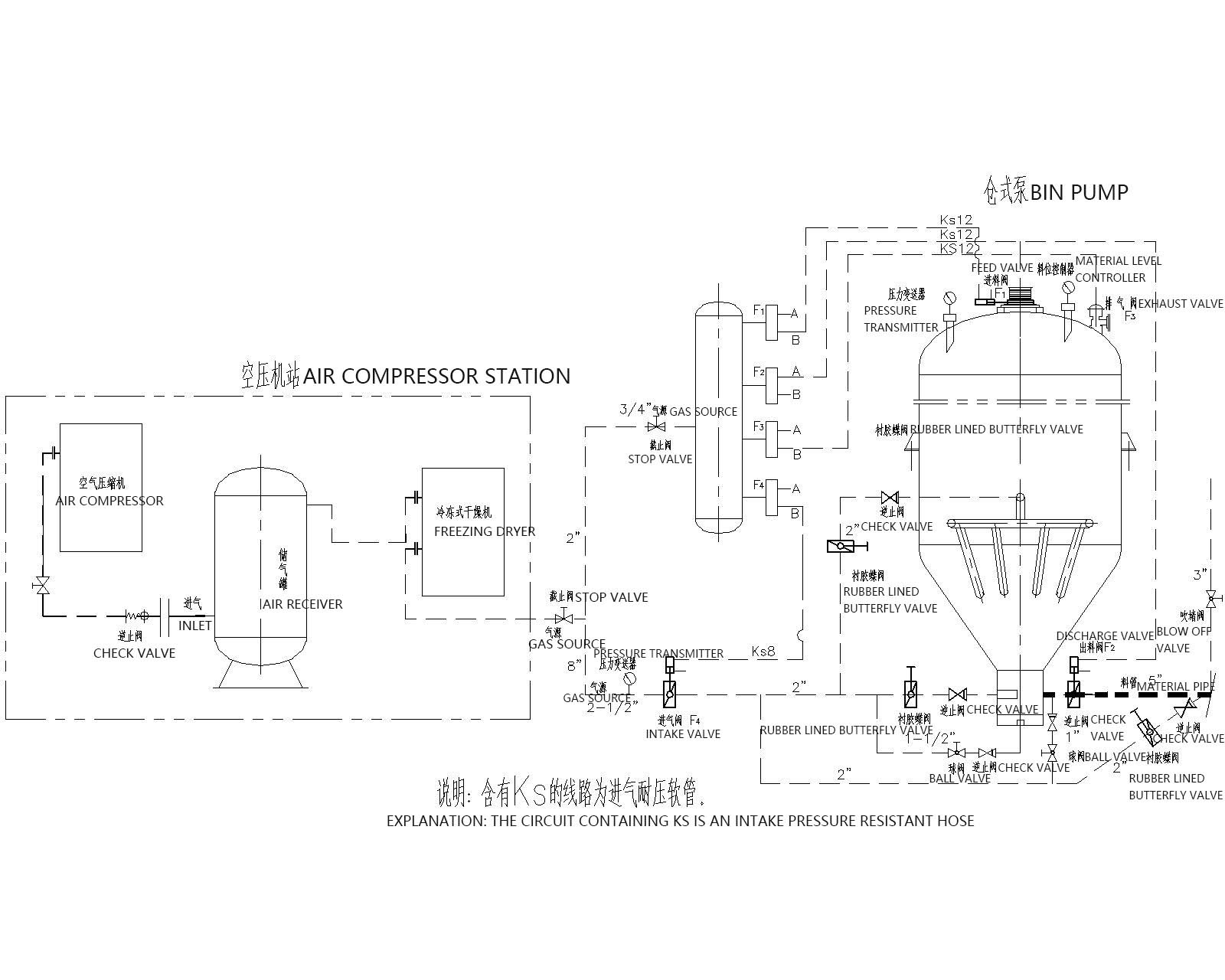

Dense Phase Bin Pump Pneumatic Conveying

Core Product Features

① High-capacity Conveying: throughput >300 tons per hour

② Extra-long Distance Delivery: conveying range beyond 2000 meters

③ Energy Efficient Performance: power consumption below 3.8kWh/t·km

④ Extreme Low Abrasion: service life of pipelines exceeds 10 years

⑤ Gentle Low-Speed Handling: initial velocity 6–10m/s

⑥ High Mixing Ratio Operation: material-air ratio >30kg/kg

⑦ Flexible process arrangement, zero dust emission, high operation efficiency, reduced capital investment and lower maintenance cost than mechanical conveying

Application Industries

Designed for efficient bulk powder and granular material transportation, our Pneumatic Conveying Bin Pump System serves multiple key industries, with outstanding performance in:

• Power Generation: Fly ash, bottom ash and desulfurization agent conveying

• Cement Production: Raw materials, clinker and finished cement transport

• Chemical Processing: Fine chemical powders, plastic granules and resin powder

• Mining & Minerals: Mineral powder, ore powder and coal powder conveying

• General Industry: Food processing (flour, starch), building materials and environmental protection applications

Normal specification pneumatic conveying bin pump parameter table

Conveying material	Bulk weight (t/m³)	Model	PCD18/N	PCD20/N	PCD22/N	Reference transport distance
Conveying material	Bulk weight (t/m³)	Specification	5.0~6.7m³	7.0~10.0m³	10.0~15.0m³	Horizontal (m)	Vertical (m)
Pulverized coal	0.5	Delivery volume (t/h)	12~20	16~32	25~50	500	30
Fly ash	0.75		18~32	25~48	35~70	50
Limestone powder / mineral powder	0.8		20~35	26~51	38~75	500	30
Cement/raw material	1.0		24~42	32~65	48~95	500	30
Silicon powder	1.2		28~50	40~75	55~115	500	30

Small specification pneumatic conveying bin pump parameter table

Conveying material	Bulk weight (t/m³)	Model	PCD08/M	PCD10/M	PCD12/M	PCD14/M	Reference transport distance
Conveying material	Bulk weight (t/m³)	Specification	0.2~0.5m³	0.6~1.6m³	1.5~2.5m³	2.5~5.0m³	Horizontal (m)	Vertical (m)
Pulverized coal	0.5	Delivery volume (t/h)	0.5~1.8	1.5~5.5	5.0~9.0	8.0~18.0	100	20
Fly ash	0.75		0.9~2.8	2.5~8.5	7.0~14.0	12.0~27.0	100	20
Limestone powder / mineral powder	0.8		1.0~3.0	3.0~9.0	8.0~15.0	12.0~28.0	100	20
Cement/raw material	1.0		1.2~3.5	3.5~11.5	10.0~18.0	16.0~36.0	100	20
Silicon powder	1.2		1.5~4.0	4.5~13.5	12.0~20.0	19.0~43.0	100	20

Long-distance pneumatic conveying bin pump parameter table

Conveying material	Bulk weight (t/m³)	Model	PCD24/L	PCD26/L	PCD28/L	PCD30/L	Reference transport distance
Conveying material	Bulk weight (t/m³)	Specification	16~20m³	18~22m3	20~27m³	26~32m³	Horizontal (m)	Horizontal (m)
Pulverized coal	0.5	Delivery volume (t/h)	20~40	25~45	30~55	45~65	1000	25
Fly ash	0.75		35~60	45~65	45~80	65~95	1000	25
Limestone powder / mineral powder	0.8		40~65	45~70	50~85	70~100	1000	25
Cement/raw material	1.0		50~80	55~90	65~110	90~120	1000	25

Large conveying capacity pneumatic conveying bin pump parameter table

Conveying material	Bulk weight (t/m³)	Model	PCD24/H	PCD26/H	PCD28/H	PCD30/H	Reference transport distance
Conveying material	Bulk weight (t/m³)	Specification	16~20m³	18~22m³	20~27m³	26~32m³	Horizontal (m)	Horizontal (m)
Pulverized coal	0.5	Delivery volume (t/h)	50~80	60~90	65~110	80~130	200	20
Fly ash	0.75		75~125	85~130	95~160	125~190	200	20
Limestone powder / mineral powder	0.8		80~130	90~140	100~170	130~200	200	20
Cement/raw material	1.0		100~150	115~175	130~215	165~260	200	20

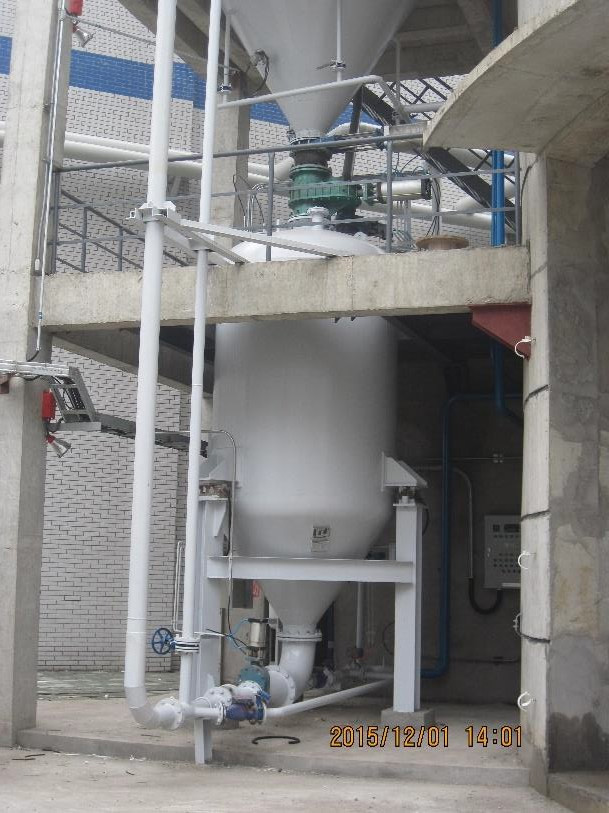

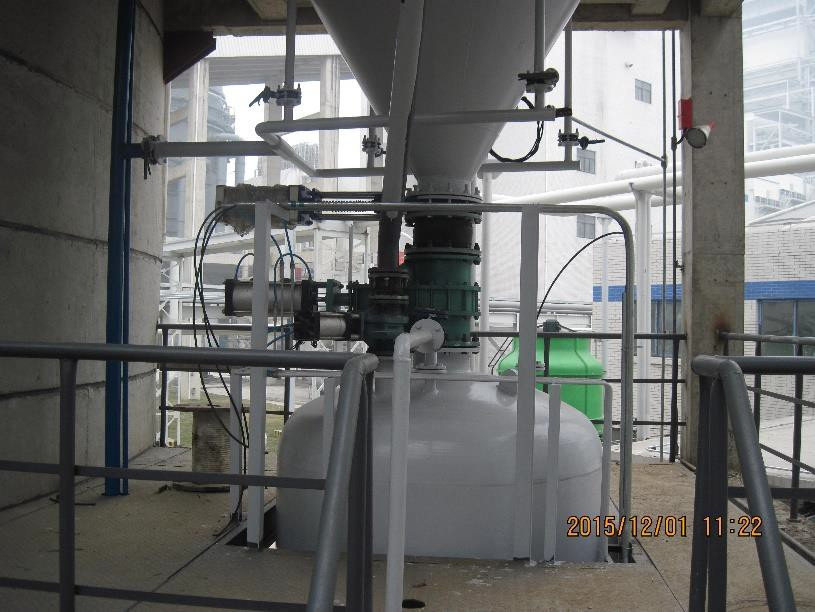

Case

★ Scope of Supply: Engineering design, manufacturing and supply of 1 set of PCD18/N type bin pump pneumatic conveying system for limestone powder

★ Conveying Capacity: 50 t/h

★ Horizontal Distance: 220 m

★ Vertical Lift: 25 m

Why Choose Us?

As a professional manufacturer of pneumatic conveying equipment, we bring extensive experience in research and development, production, and after-sales service. We are dedicated to delivering high-quality, cost-effective conveying solutions to customers around the world.

All of our products undergo strict quality inspections to ensure reliable performance and a long service life. In addition, we offer 24-hour technical support and after-sales maintenance to give you peace of mind throughout usage.

Contact Us

If you are interested in our dense phase pneumatic conveying systems or need a customized solution tailored to your specific requirements, please get in touch with us today. Our professional team will respond within 24 hours and provide you with detailed product information and a quotation.
