Durable Industrial Dense Phase Conveying System

Durable Industrial Dense Phase Conveying System

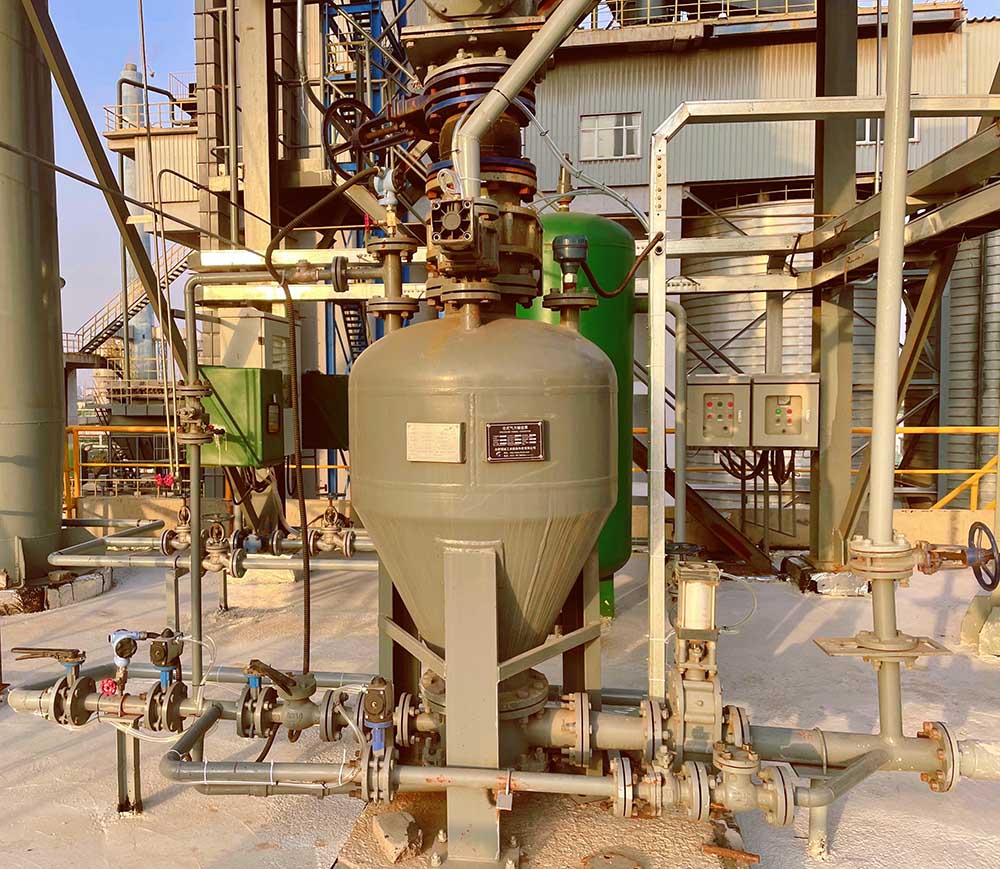

Welcome to our professional page for Dense Phase Pneumatic Conveying Bin Pump System — the reliable, energy-saving solution for bulk powder and solid material transportation in industrial fields. Our system integrates advanced technology, stable performance and easy operation, helping you solve material conveying problems efficiently and reduce production costs.​

Why Choose Our Pneumatic Conveying Bin Pump System?​

• High Efficiency & Energy Saving: Adopts dense phase conveying technology, low air consumption, low energy consumption, and conveying efficiency is 30% higher than traditional conveying equipment. It can realize long-distance and large-capacity conveying without wasting energy.​

• Stable & Durable: The bin pump is made of high-quality wear-resistant materials, with strong corrosion resistance and long service life. The whole system runs stably, with low failure rate, reducing maintenance time and cost for your enterprise.​

• Low Wear & Environmental Protection: Closed conveying design, no dust leakage, meeting environmental protection standards. The low-velocity dense phase conveying reduces the wear of pipelines and equipment, extending the service life of the whole conveying system.​

• Automatic & Easy Operation: Equipped with intelligent control system, it can realize automatic feeding, conveying and unloading, reducing manual operation, improving work efficiency and avoiding human error.​

• Customizable Design: According to your specific needs (conveying distance, material type, capacity), we provide customized solutions to perfectly match your production line and realize the best conveying effect.

Main features of the product:

①Large conveying capacity: >300t/h;

② Long distance: >2000m;

③Low power consumption: <3.8kWh/t·km;

④Low wear and tear: pipeline life > 10 years;

⑤ Low speed: initial speed 6 ~ 10m / s;

⑥High mixing ratio: >30kg/kg;

⑦Process lay-out is flexible, no dust, high operating rate, lower investment than mechanical transportation, less maintenance costs.

Application Fields​

Our Pneumatic Conveying Bin Pump System is widely used in various industrial fields that need to convey bulk powder materials, especially suitable for:​

• Power Plants: Fly ash conveying, bottom ash conveying, desulfurization powder conveying​

• Cement Plants: Cement clinker conveying, raw material conveying, finished cement conveying​

• Chemical Industry: Chemical powder, plastic particles, resin powder conveying​

• Mining Industry: Mineral powder, ore powder, coal powder conveying​

• Other Fields: Food processing (flour, starch), building materials, environmental protection and other industries

Normal specification pneumatic conveying bin pump parameter table

Small specification pneumatic conveying bin pump parameter table

Long-distance pneumatic conveying bin pump parameter table

Large conveying capacity pneumatic conveying bin pump parameter table

Conveying material	Bulk weight (t/m³)	Model	PCD24/H	PCD26/H	PCD28/H	PCD30/H	Reference transport distance
		Specification	16~20m³	18~22m³	20~27m³	26~32m³	Horizontal (m)	Horizontal (m)
Pulverized coal	0.5	Delivery volume (t/h)	50~80	60~90	65~110	80~130	200	20
Fly ash	0.75		75~125	85~130	95~160	125~190	200	20
Limestone powder / mineral powder	0.8		80~130	90~140	100~170	130~200	200	20
Cement/raw material	1.0		100~150	115~175	130~215	165~260	200	20















Case

★ Scope of Work: Design and equipment manufacturing supply for 1 set of PCD08/M type limestone powder pneumatic conveying system   ★ Conveying Capacity: ≥3t/h   ★ Horizontal Distance: 30m   ★ Vertical Height: 30m



Why Choose Us?​

As a professional manufacturer of pneumatic conveying equipment, we have rich experience in R&D, production and after-sales service. We focus on providing high-quality, cost-effective conveying solutions for global customers. Our products have passed strict quality inspection, with reliable performance and long service life. At the same time, we provide 24-hour technical support and after-sales maintenance service to solve your worries in use.​

Contact Us​

If you are interested in our Dense phase pneumatic conveying, or need a customized conveying solution according to your actual needs, please contact us immediately. Our professional team will reply to you within 24 hours and provide you with detailed product information and quotation.
