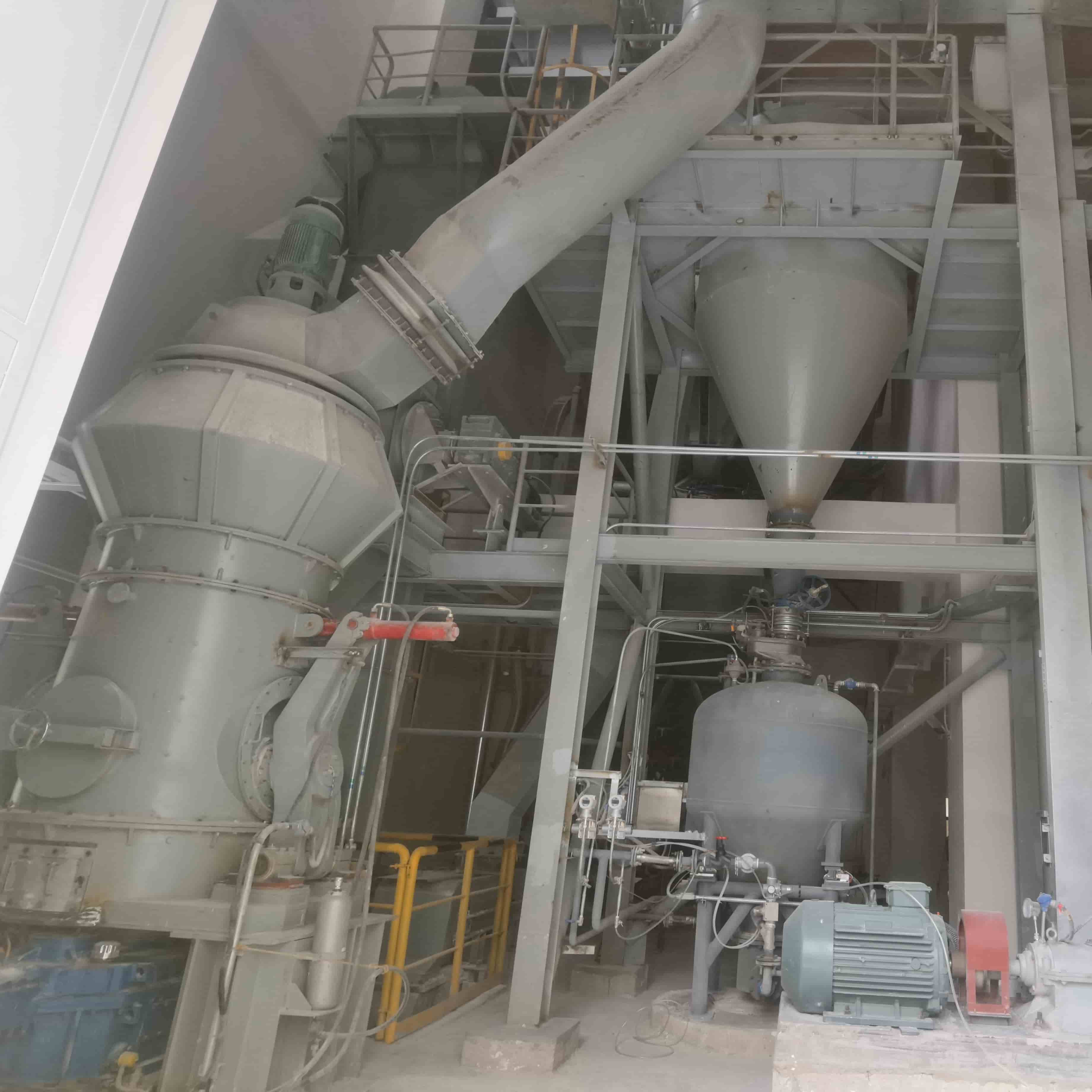

Reliable Limestone Vertical Mill for FGD System

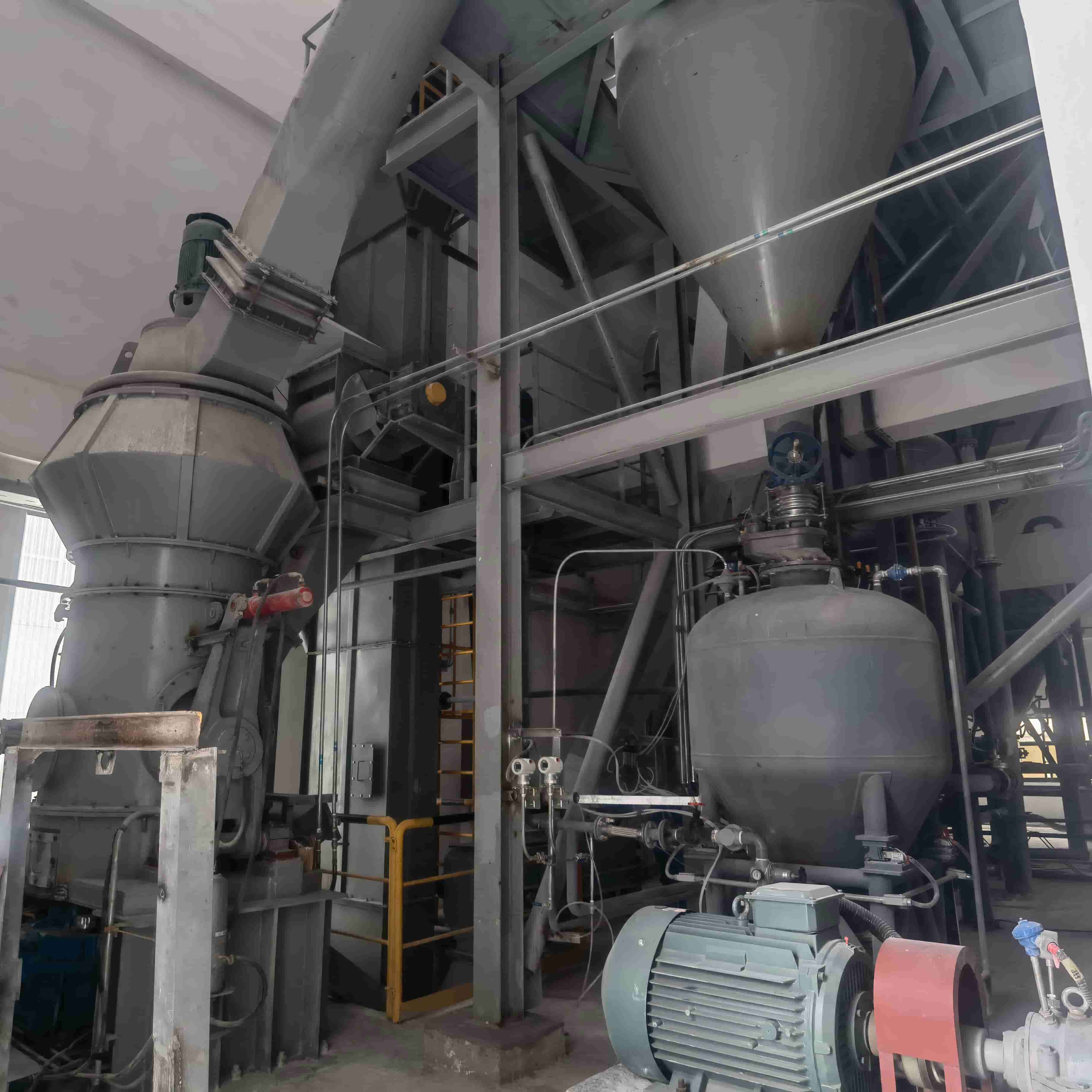

High Efficiency Limestone Vertical Roller Mill

Vertical Roller Mill for Desulfurization Limestone

Reliable Limestone Vertical Mill for FGD System

This high-efficiency vertical roller mill integrates grinding, drying and screening. Limestone grinding mill yields stable 325 mesh fine powder, runs reliably with low upkeep, ideal for FGD systems, cement and industrial pulverizing lines.

Item No :
VRM for Limestone
Order(MOQ) :
1
Payment :
Negotiation
Product Origin :
Hefei,China
Color :
Customize
Shipping Port :
China Ports
Lead Time :
Negotiation
Weight :
Based on actual

Inquiry now

As a high-capacity and energy-saving vertical roller mill, our limestone pulverizer integrates grinding, drying and screening into a single unit. Featuring a compact structure, it is capable of producing ultra-fine limestone powder with a fineness up to 325 mesh while maintaining a stable particle size distribution. Backed by reliable performance and low maintenance costs, it is the ideal solution for FGD systems, cement plants, and industrial powder production lines.

Key Features at a Glance:

Integrated design: drying + grinding + sieving in one unit

Energy consumption reduced by 35%–50% compared to ball mills

Feed size up to 50mm, moisture tolerance up to 15%

Finished fineness: 22–180μm (FGD) or 3–45μm (ultra-fine applications)

Low noise (<75 dB), dust-free operation with negative pressure system

Technical Parameters

Model specification	HVM1250X	HVM1300X	HVM1500X	HVM1700X	HVM1900X	HVM2400X	HVM2500X	HVM2800X
Capacity	6~9 t/h	9~13 t/h	15~20 t/h	20~25 t/h	26~32 t/h	36~40 t/h	45～55 t/h	56~80 t/h
Grinding material moisture	≤5%
Limestone fineness	325 mesh (44um) 90% passed
Main Motor Power	110/132 kW	185/200 kW	250/280 kW	355/400 kW	450/500 kW	560/630 kW	710/800kW	1120/1250kW
Description	Note: Limestone Bond Index: ≤13kWh/t

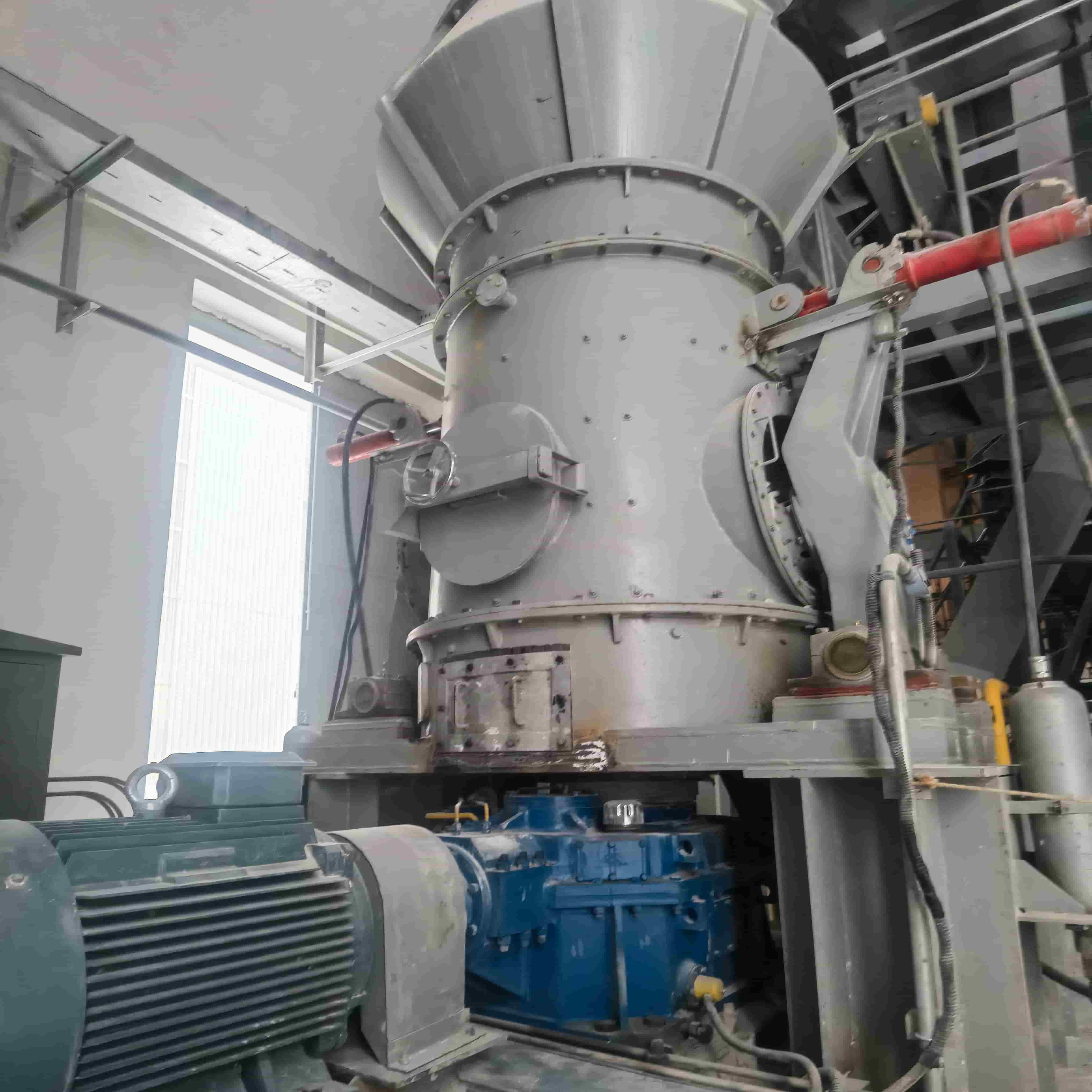

vertical limestone grinding mill

Working Principle

The motor rotates the grinding table via a reducer. Raw material enters at the center while hot air flows in from the intake. Centrifugal force moves material to the table edge, where it is crushed by rollers in annular grooves.

Crushed material is carried upward by airflow; coarse particles fall back for regrinding. Fine powder passes through a classifier—oversized particles return, while qualified powder exits with airflow and is collected as product.

Moisture is removed through contact with hot gas during conveying, ensuring final powder meets required moisture levels.

Case


Project Name: 20t/h Natural Gypsum Vertical Grinding Powder System Processing material type: natural gypsum or dolomite Production capacity: ≥ 20t/h Product fineness: 100 mesh, 90% -95% pass Production time: 2024

Custom Model Classification

Flue Gas Desulfurization (FGD) Limestone Vertical Roller Mill: Specifically designed for desulfurization processes in power plants, efficiently producing limestone powder with a particle size range of 22–180 μm.

Ultra-fine Vertical Roller Mill (HLMX Series): Equipped with a secondary classifier, achieving a finished product fineness of up to 3 μm and a maximum capacity of 40 t/h. Ideal for processing fillers and chemical additives.

Key Advantages

1. Energy-saving – Power consumption reduced by 35%–50% vs. ball mills, thanks to material-bed grinding that minimizes over-grinding.

2. High drying capacity – Integrated hot air system handles feed moisture up to 15% (hot air up to 450°C), eliminating separate dryers.

3. Fine & stable product – Dynamic classifier with adjustable rotor speed controls fineness from 3–22μm; closed-circuit system ensures narrow particle size distribution.

4. Low maintenance cost – High-chromium alloy wear parts last >30,000 hours; metal wear ≤5–15 g/t; hydraulic roller system with auto-adjustment reduces manual work.

5. Compact & clean – Requires 50%–70% less space than ball mills; negative-pressure operation ensures zero dust leakage; noise ≤75 dB(A), 20–25 dB lower than ball mills.

6. Smart operation – PLC touchscreen control for real-time monitoring, automatic feeding, and remote diagnostics via Internet.

Application

Flue Gas Desulfurization (FGD): 22–180μm (80–325 mesh), Power plants, steel mills
Cement Production 80μm (180 mesh) Cement plants, clinker grinding
Construction Materials: 45–75μm (200–325 mesh),Mortar, plaster, concrete additives
Paper / Coating / Paint: 3–45μm (325–6000 mesh),Paper mills, coating factories, plastic fillers
Glass & Ceramics: 75–150μm (100–200 mesh),Glass manufacturing, ceramic raw materials
Animal Feed / Fertilizer: 150–300μm (50–100 mesh),Feed mills, fertilizer plants
Our vertical roller mills are also suitable for processing calcite, barite, dolomite, talc, gypsum, kaolin, bentonite, and other non-metallic minerals
