Explosion Proof Coal Pulverizing Mill Preparation System

Vertical Grinding System Process

Raw materials are elevated into a silo, then fed into a vertical roller mill for grinding and drying. Qualified fine powder is separated via a classifier and cyclone, while coarse powder returns for regrinding. Exhaust gas is purified by a bag filter before emission. Finished powder is stored in a silo, ready for packaging or dispatch.

HVM Coal Vertical Mill Grinding System Advantages

1. Energy-Efficient Grinding Technology

Compared to traditional ball mills, our HVM vertical roller mill consumes 25-40% less electricity due to lower friction loss and direct material-bed grinding.

2. Integrated Drying Capability

The mill accepts raw coal with up to 15% inlet moisture, drying it to <1% in the final product without requiring a separate dryer unit.

3. Robust & Long-Lasting Wear Components

Grinding rollers and table liners are cast from high-chromium alloy or ceramic composite materials, achieving a lifespan of 8,000-20,000 hours before replacement. Segmented table design allows fast maintenance without dismantling the entire unit.

4. Precise Fineness & Low Residual Carbon

The dynamic rotary classifier ensures a sharp cut, producing uniform pulverized coal that improves combustion efficiency and reduces fly ash carbon content in boilers.

5. Advanced Safety for Volatile Coal

Our design incorporates an automatic inert gas protection system with real-time CO/O₂ analyzers. In case of abnormal conditions, the system instantly injects N₂ or steam to prevent ignition.

6. Environmentally Sealed Operation

The entire coal grinding system operates under negative pressure, with zero dust leakage, meeting stringent environmental emission standards.

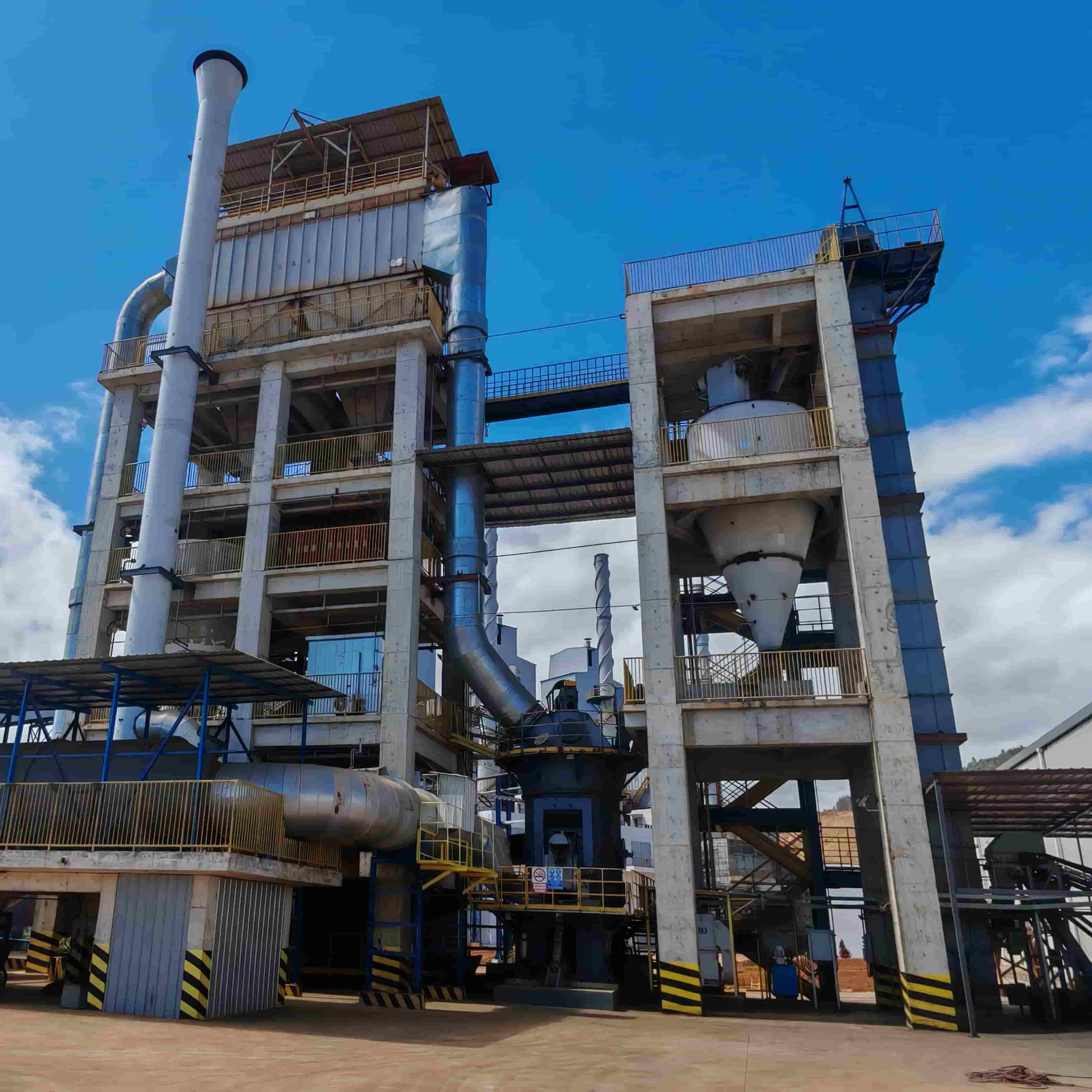

Project Cases

★ Project Name: 600t/d Lime Rotary Kiln Phase II Production Line ★ Scope of Work: Engineering design and equipment manufacturing supply for HVM1300M vertical mill coal pulverizing system ★ Material Type: High-volatile, high-moisture bituminous coal ★ Output: ≥12t/h ★ Product Fineness: 95% passing 200 mesh ★ Commissioning Date: 2022

FAQ – Coal Pulverizing System

1. What materials can your coal pulverizing system process?

Our system is specially designed for coal grinding, suitable for various coal types and coal-based materials, including bituminous coal, anthracite, lignite, coal gangue, coal slime, and other materials with similar grindability.

2. What capacity and fineness can your system achieve?

For coal powder processing, the system capacity ranges from 3 to 200 tons per hour. The finished coal powder fineness can be adjusted between 200 mesh and 1250 mesh to meet different application requirements such as power plants, cement plants, and industrial boilers.

3. How do I choose the right system model?

Our engineers will recommend the most suitable model based on your raw coal type (bituminous coal, anthracite, lignite), required capacity, target fineness, raw coal moisture content, application scenario, and site conditions.

4. What is the difference between a vertical mill and a ball mill for coal grinding?

Compared with a ball mill, our vertical mill offers higher grinding efficiency (30%–50% increase), lower energy consumption, larger capacity, smaller footprint, better environmental performance (less dust and noise), and easier maintenance—making it the ideal choice for large-scale coal powder production.

5. Can you provide customized coal pulverizing solutions?

Yes, we provide customized design and manufacturing based on your specific requirements, including capacity, fineness, coal type, site layout, and special conditions such as high-moisture coal slime.

6. Do you offer a complete coal powder production line?

Yes, we provide turnkey solutions covering the entire coal grinding process, including crusher, bucket elevator, feeder, vertical mill, dust collector, control system, and packaging machine.

7. What installation and after-sales services do you provide?

We offer on-site guidance for installation and commissioning, operator training, long-term supply of wear-resistant spare parts, and 24/7 online technical support to ensure stable operation.

8. What is the delivery time?

Delivery time is approximately 90–120 working days for standard models, and around 120 working days for customized production lines.

9. What control system does your pulverizing system use?

The system is equipped with an advanced PLC automatic control system with a touch screen interface, enabling intelligent and unmanned operation of feeding, grinding, classifying, and drying, with remote monitoring and fault alarm functions.

10. Do your products have certifications?

Yes, our coal pulverizing systems meet international industrial standards and hold certifications such as CE and ISO, ensuring quality, safety, and environmental compliance for global export.

11. Looking for a reliable coal pulverizing system?

If you are seeking a high-quality, energy-efficient, and cost-effective solution for coal powder production in power plants, cement plants, or boiler combustion applications, contact us today. We provide:

- Free quotation

- Customized solutions

- Detailed technical parameters and catalogs

- On-site installation, commissioning, and after-sales support

Contact us now to get the best price and professional support for your coal grinding project!
