The complete slag vertical grinding system integrates drying, grinding and classifying, offering a cost-effective, eco-friendly production line for high-quality slag micropowder with stable performance.
Item No :
Slag Vertical MillOrder(MOQ) :
1Payment :
NegotiationProduct Origin :
ChinaColor :
CustomizeShipping Port :
China PortsLead Time :
NegotiationWeight :

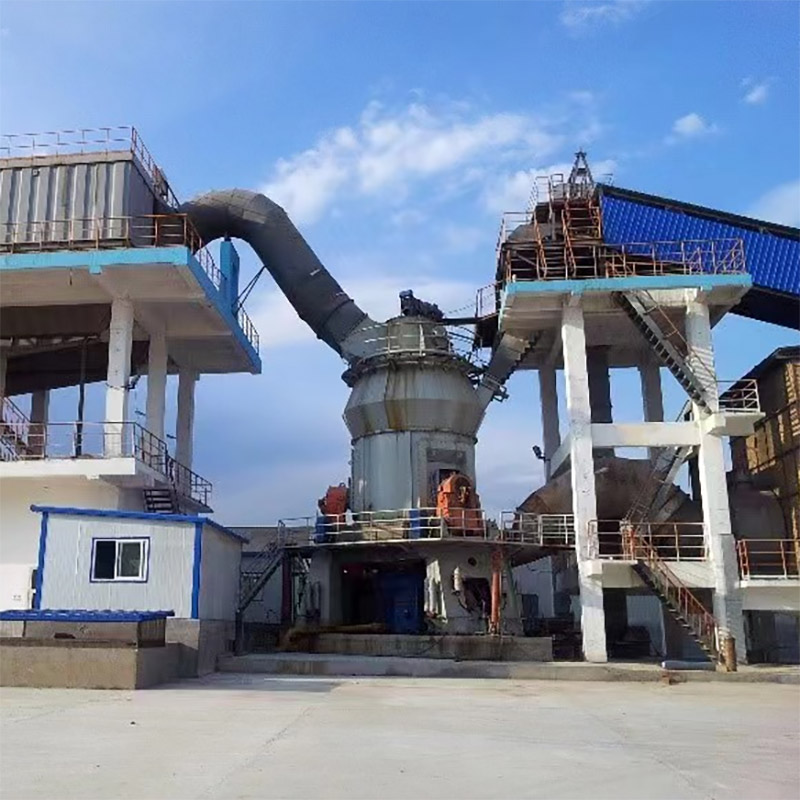

Based on actualLarge Scale Slag Grinding Production Line
As a professional manufacturer of slag vertical roller mill grinding systems, we provide integrated, energy-saving, and high-efficiency solutions for the production of blast furnace slag, steel slag, and GGBS (Ground Granulated Blast Furnace Slag) micro powder. Our system integrates drying, grinding, classifying, and conveying into one unit, perfectly meeting the needs of cement plants, metallurgical plants, and the building materials industry for efficient waste recycling and cost control.
Product Overview
High-efficiency slag vertical roller mill system, designed for grinding granulated blast furnace slag, steel slag, and other metallurgical wastes. Adopting advanced material bed grinding technology, it offers higher efficiency, lower energy consumption, and more stable performance than traditional ball mills, making it the ideal choice for modern slag micro powder production lines. Customizable according to capacity, product fineness, and application scenarios, with turnkey solutions from design to after-sales service.
Core Advantages
High Efficiency & Energy Saving: Energy consumption 30%-50% lower than ball mills (≤45 kWh/t); grinding efficiency improved by 20%-30%.
Integrated Drying & Grinding: Handles slag with moisture content up to 15%; combines drying, grinding, and classifying in one unit, simplifying the process and reducing investment.
Stable & Controllable Quality: Equipped with high-efficiency dynamic classifier; fineness adjustable between 400-550 ㎡/kg (meets S95 standard). 7-day activity index: 95%-99%; 28-day activity index: ≥95%.
Eco-Friendly & Low Noise: Fully sealed design ensures minimal dust emission and low noise, meeting international environmental standards.
Easy Operation & Low Maintenance: PLC automatic control enables unmanned operation; long-life wear parts; online condition monitoring prevents unexpected downtime.
Customizable & Complete Solutions: Tailored designs based on capacity (23-220 TPH) and requirements; one-stop turnkey solutions from single equipment to complete production lines.
HVM Slag (Steel Slag) Micro Powder Vertical Mill Specifications & Technical Parameters Table
|
Model specification |
HVM2500 |
HVM2800 |
HVM3400 |
HVM3700 |
HVM4200 |
HVM4500 |
HVM4800 |
HVM5100 |
HVM5600 |
|
Grinding Table Median Diameter(mm) |
2500 |
2800 |
3400 |
3700 |
4200 |
4500 |
4800 |
5100 |
5600 |
|
Capacity(t/h) |
23-26 |
50-60 |
70-83 |
90-110 |
110-140 |
130-150 |
150-180 |
180-200 |
200-220 |
|
Raw Material Moisture |
＜15% |
||||||||
|
Product Specific Surface Area |
≥420㎡/kg |
||||||||
|
Product Moistrue |
≤1% |
||||||||
|
Main Motor Power(kW) |
900 |
1800 |
2500 |
3350 |
3800 |
4500 |
5300 |
6150 |
6450/6700 |
|
Illustrate |
Re:Mining slag bond index≤25kWh/t,Steel slag bond index≤30kWh/t,The output will decrease by 30%-40% when grinding steel slag micro power
|
||||||||
Vertical Grinding System Process
Raw materials are elevated into a silo, then fed into a vertical roller mill for grinding and drying. Qualified fine powder is separated via a classifier and cyclone, while coarse powder returns for regrinding. Exhaust gas is purified by a bag filter before emission. Finished powder is stored in a silo, ready for packaging or dispatch.
Project Cases
 |
|
★ Project Name: 300,000 t/y Slag Micro Powder Production Line ★ Scope of Work: Process design and equipment manufacturing supply of HVM2800S slag vertical roller mill grinding system ★ Material Type: Slag ★ Designed Capacity: ≥45 t/h ★ Actual Capacity: ≥55 t/h
★ Product Fineness: Specific surface area ≥420 cm²/g |
FAQ – Slag Vertical Mill Grinding System
1. What materials can your slag vertical mill system process?
Our system is specially designed for grinding metallurgical wastes, suitable for various types of slag and industrial by-products, including granulated blast furnace slag, steel slag, nickel slag, manganese slag, and other materials with similar grindability.
2. What capacity and fineness can your system achieve?
For slag micro powder processing, the system capacity ranges from 15 to 150 tons per hour (or an annual output of 100,000 to 1,000,000 tons). The finished slag powder fineness can be adjusted between 400–550 m²/kg (specific surface area) to meet S95 grade and above standards for cement and concrete applications.
3. How do I choose the right system model?
Our engineers will recommend the most suitable model based on your raw material type (blast furnace slag, steel slag, etc.), required capacity, target fineness, raw material moisture content, application scenario (cement plant, concrete batching station, etc.), and site conditions.
4. What is the difference between a vertical mill and a ball mill for slag grinding?
Compared with a ball mill, our vertical mill offers higher grinding efficiency (20%–30% increase), lower energy consumption (30%–50% reduction), larger capacity, smaller footprint, better environmental performance (less dust and noise), and easier maintenance—making it the ideal choice for modern slag micro powder production lines.
5. Can you provide customized slag grinding solutions?
Yes, we provide customized design and manufacturing based on your specific requirements, including capacity, fineness, material type, site layout, and special conditions such as high-moisture slag.
6. Do you offer a complete slag micro powder production line?
Yes, we provide turnkey solutions covering the entire slag grinding process, including crusher, bucket elevator, feeder, vertical mill, dust collector, control system, and product storage or packaging equipment.
7. What installation and after-sales services do you provide?
We offer on-site guidance for installation and commissioning, operator training, long-term supply of wear-resistant spare parts, and 24/7 online technical support to ensure stable operation.
8. What is the delivery time?
Delivery time is approximately 90–120 working days for standard models, and around 120 working days for customized production lines.
9. What control system does your slag grinding system use?
The system is equipped with an advanced PLC automatic control system with a touch screen interface, enabling intelligent and unmanned operation of feeding, grinding, classifying, and drying, with remote monitoring and fault alarm functions.
10. Do your products have certifications?
Yes, our slag vertical mill systems meet international industrial standards and hold certifications such as CE and ISO, ensuring quality, safety, and environmental compliance for global export.
11. Looking for a reliable slag vertical mill system?
If you are seeking a high-quality, energy-efficient, and cost-effective solution for slag micro powder production for cement plants, concrete batching stations, or other industrial applications, contact us today. We provide:
- Free quotation
- Customized solutions
- Detailed technical parameters and catalogs
- On-site installation, commissioning, and after-sales support
Contact us now to get the best price and professional support for your slag grinding project!
