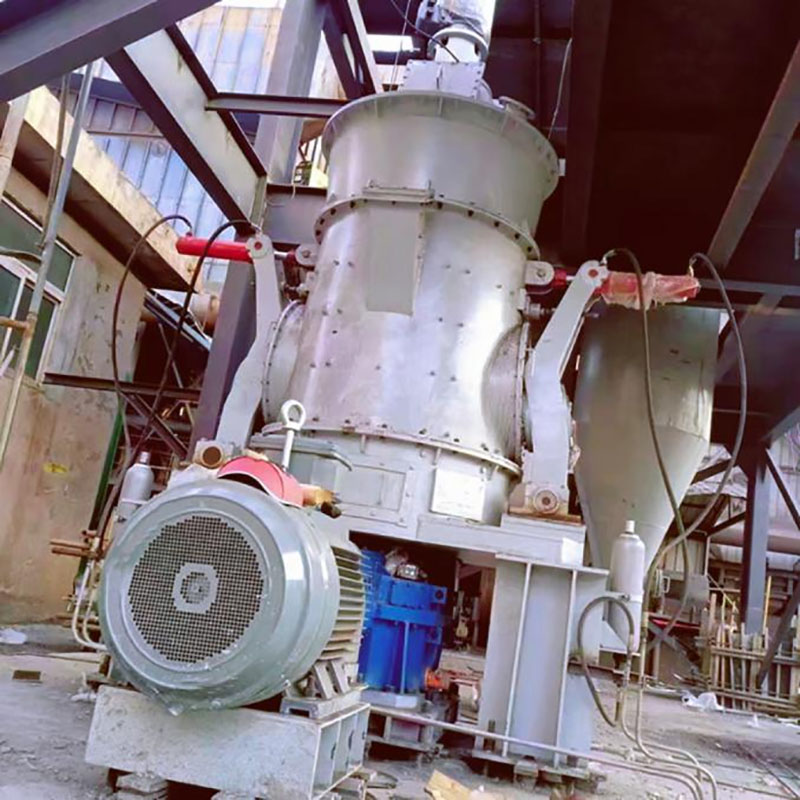

Name: Vertical Roller Coal Milling System
Availability: InStock

As a professional manufacturer, we supply efficient coal pulverizing systems with compact structure, explosion-proof design and full after-sales support, ideal for large-scale coal processing production lines.

Item No :
Pulverized Coal Vertical Mill
Order(MOQ) :
1
Payment :
Negotiation
Product Origin :
China
Color :
Customize
Shipping Port :
China Ports
Lead Time :
Negotiation
Weight :
Based on actual

Inquiry now

Coal Pulverizing System - Professional Coal Preparation Solution

Focus on Technology & Reliability

Advanced Pulverizing System for Industrial Applications

Our pulverizing system is a high-performance integrated solution engineered for superior coal processing. Serving power plants, cement plants, steel mills, and beyond, it seamlessly combines drying, grinding, classifying, and conveying into one streamlined process. Built with proven mechanical technology and intelligent control, it delivers reliable, energy-efficient, and environmentally responsible coal preparation tailored to your production needs.

Product Overview

Focus on Precision & Core Role

The Heart of Your Fuel Preparation Process

As the core equipment in any coal-consuming operation, our pulverizing system transforms raw coal into precisely graded pulverized fuel—essential for boiler combustion, kiln firing, and coal injection. Built on advanced engineering principles, it integrates proven mechanical technology with intelligent controls to deliver consistent performance, operational stability, and low production costs. Whether processing bituminous coal, lignite, anthracite, or petroleum coke, our system adapts seamlessly to your required capacity and fineness specifications.

Core Features

30–50% Higher Efficiency: Advanced grinding technology outperforms traditional ball mills, drastically cutting energy use.

Optimized Energy Savings: Streamlined structure and energy-efficient motors reduce power consumption and operating costs.

Uninterrupted Operation: Robust design and premium components ensure high reliability and minimal downtime.

Precision Control: Fineness adjusts easily to match diverse application requirements.

Low Emissions: Integrated high-efficiency dust collection meets global environmental standards.

Space-Saving Design: Compact footprint simplifies installation in any facility.

Intelligent Control: Automatic control system enables easy operation, reducing manual intervention and labor costs.

HVM pulverized coal vertical mill specifications, technical parameters

Model Specification	HVM1100M	HVM1250M	HVM1300M	HVM1400M	HVM1500M
Capacity	5～8 t/h	8~10 t/h	10~12 t/h	12~15 t/h	15~20 t/h
Main Motor Power	90 kW	110/132 kW	185/200 kW	200/220 kW	220/250 kW
Raw coal moisture	<15%
Pulverized coal fineness	R0.08=2%～12%
Pulverized coal moisture	≤1% (Under the premise of meeting the drying requirements)
Model Specification	HVM1700M	HVM1900M	HVM2200M	HVM2400M	HVM2800
Capacity	20~25 t/h	25~35 t/h	35~45 t/h	45~55 t/h	70~90
Main Motor Power	315/355 kW	400/450 kW	450/500 kW	560/630 kW	900/1120
Description	Note: 1. The original coal Hastelloy grindability coefficient ≥ 55; 2.can be used for grinding anthracite, fineness of coal powder (R0.08) ≤ 3% (but the capacity will decrease accordingly)

HVM pulverized coal vertical mill specifications, technical parameters (Metallurgy, heat, energy industry)

Model specification	HVM800M	HVM1100M	HVM1250M		HVM1300M		HVM1400M		HVM1500M
Capacity	3～5 t/h	7～10 t/h	9~12 t/h		13~17 t/h		14~19 t/h		18~24 t/h
Main Motor Power	45/55 kW	90/110 kW	110/132kW		185/200 kW		200/220 kW		220/250kW
Raw coal moisture	<15%
Pulverized coal fineness	R0.08=10%～15% (fineness of coal powder for blast furnace coal injection: 200 mesh 80% pass)
Pulverized coal moisture	1%～6% (Under the premise of meeting the drying requirements)
Model specification	HVM1700M	HVM1900M		HVM2200M		HVM2400M		HVM2800M
Capacity	23~30 t/h	29~36 t/h		36~45 t/h		45~55 t/h		70~90
Main Motor Powerr	280/315kW	355/400 kW		450/500 kW		560/630 kW		900/1120
Description	Note: The original coal Hastelloy grindability coefficient HGI：55～70

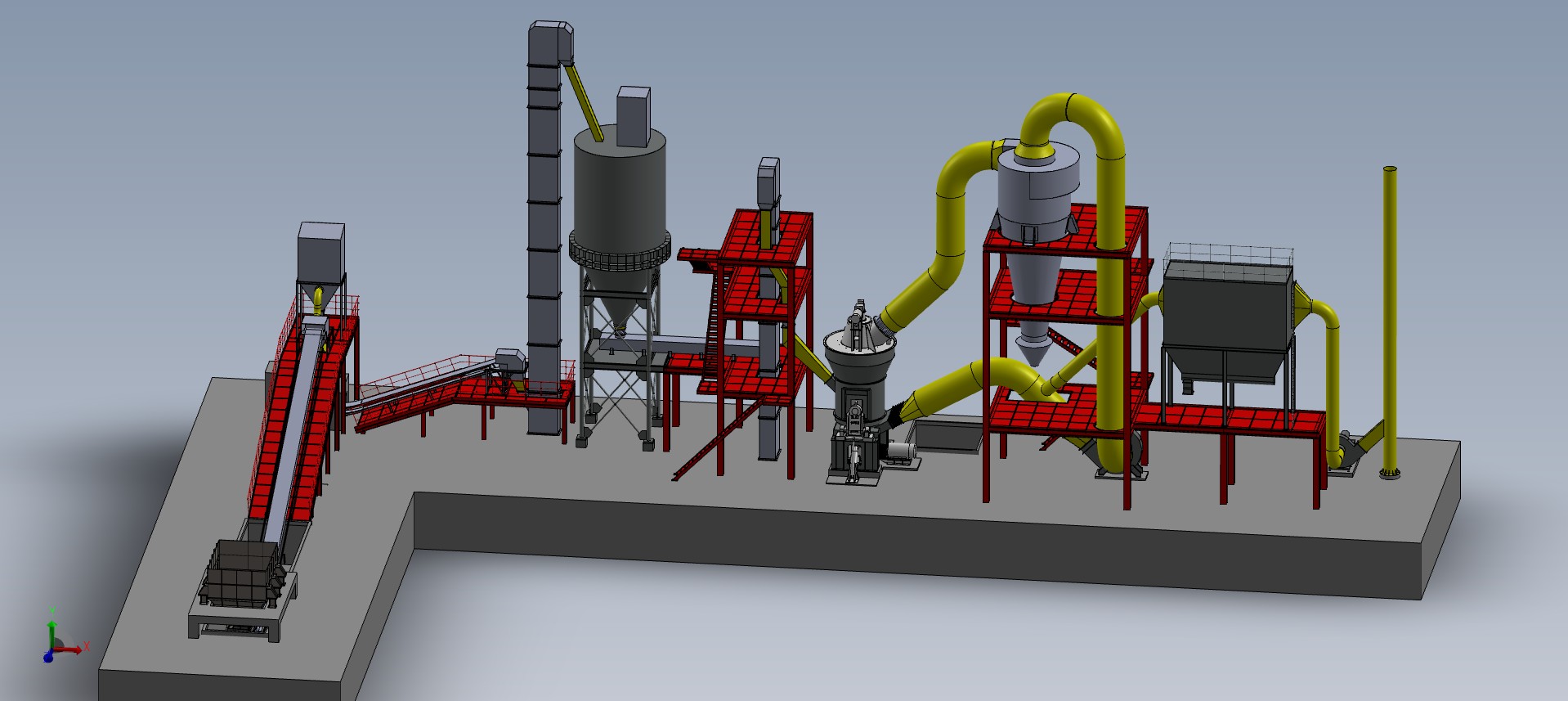

Vertical Grinding System Process

Raw materials are elevated into a silo, then fed into a vertical roller mill for grinding and drying. Qualified fine powder is separated via a classifier and cyclone, while coarse powder returns for regrinding. Exhaust gas is purified by a bag filter before emission. Finished powder is stored in a silo, ready for packaging or dispatch.

Pulverized Coal Grinding System

Project Cases

★ Project Name: Supporting 168m³ Blast Furnace Coal Injection Project (Manganese Smelting Project)

★ Project scope: HVM800M vertical coal powder preparation system

★ Processing material type: bituminous coal and anthracite mixed coal

★ Output: ≥ 3.5t/h

★ Product fineness: 200 mesh, 90% pass

★ Production time: 2022

FAQ – Coal Pulverizing System

1. What materials can your coal pulverizing system process?

Our system is specially designed for coal grinding, suitable for various coal types and coal-based materials, including bituminous coal, anthracite, lignite, coal gangue, coal slime, and other materials with similar grindability.

2. What capacity and fineness can your system achieve?

For coal powder processing, the system capacity ranges from 3 to 200 tons per hour. The finished coal powder fineness can be adjusted between 200 mesh and 1250 mesh to meet different application requirements such as power plants, cement plants, and industrial boilers.

3. How do I choose the right system model?

Our engineers will recommend the most suitable model based on your raw coal type (bituminous coal, anthracite, lignite), required capacity, target fineness, raw coal moisture content, application scenario, and site conditions.

4. What is the difference between a vertical mill and a ball mill for coal grinding?

Compared with a ball mill, our vertical mill offers higher grinding efficiency (30%–50% increase), lower energy consumption, larger capacity, smaller footprint, better environmental performance (less dust and noise), and easier maintenance—making it the ideal choice for large-scale coal powder production.

5. Can you provide customized coal pulverizing solutions?

Yes, we provide customized design and manufacturing based on your specific requirements, including capacity, fineness, coal type, site layout, and special conditions such as high-moisture coal slime.

6. Do you offer a complete coal powder production line?

Yes, we provide turnkey solutions covering the entire coal grinding process, including crusher, bucket elevator, feeder, vertical mill, dust collector, control system, and packaging machine.

7. What installation and after-sales services do you provide?

We offer on-site guidance for installation and commissioning, operator training, long-term supply of wear-resistant spare parts, and 24/7 online technical support to ensure stable operation.

8. What is the delivery time?

Delivery time is approximately 90–120 working days for standard models, and around 120 working days for customized production lines.

9. What control system does your pulverizing system use?

The system is equipped with an advanced PLC automatic control system with a touch screen interface, enabling intelligent and unmanned operation of feeding, grinding, classifying, and drying, with remote monitoring and fault alarm functions.

10. Do your products have certifications?

Yes, our coal pulverizing systems meet international industrial standards and hold certifications such as CE and ISO, ensuring quality, safety, and environmental compliance for global export.

11. Looking for a reliable coal pulverizing system?

If you are seeking a high-quality, energy-efficient, and cost-effective solution for coal powder production in power plants, cement plants, or boiler combustion applications, contact us today. We provide:

- Free quotation

- Customized solutions

- Detailed technical parameters and catalogs

- On-site installation, commissioning, and after-sales support
