Our high-efficiency low consumption gypsum powder roller mill preparation system integrates grinding, drying and classification processes, featuring low energy consumption and stable running performance to deliver consistent-quality gypsum powder for gypsum boards, cement retarders and construction plaster manufacturing.
Item No :
Gypsum Powder Production LineOrder(MOQ) :
1Payment :
NegotiationProduct Origin :
ChinaColor :
CustomizeShipping Port :
China PortsLead Time :
NegotiationWeight :
Based on actualComplete Gypsum Grinding Production Line
1. Product Overview
The gypsum vertical roller mill system is a high-efficiency, energy-saving industrial grinding solution designed for processing natural gypsum and FGD desulfurized gypsum into qualified construction gypsum powder, cement retarder powder and drywall raw materials. This integrated FGD gypsum vertical roller mill system combines drying, grinding, classifying and conveying in one compact unit, achieving stable fineness, low power consumption and fully automatic operation for commercial gypsum powder production.
2. Core Advantages
- Superior Energy Saving Performance: Compared with traditional ball mills, the gypsum vertical mill reduces power consumption by 30%–40%, greatly lowering long-term operational costs for powder plants.
- Integrated One-Stop Processing: Gypsum Grinding and Drying Mill. Realizes synchronous grinding and drying, perfectly handling high-moisture raw gypsum without extra drying equipment.
- Stable Powder Quality: Fineness can be adjusted flexibly from 100–800 mesh, providing uniform and high-purity gypsum powder for gypsum board factories and cement plants.

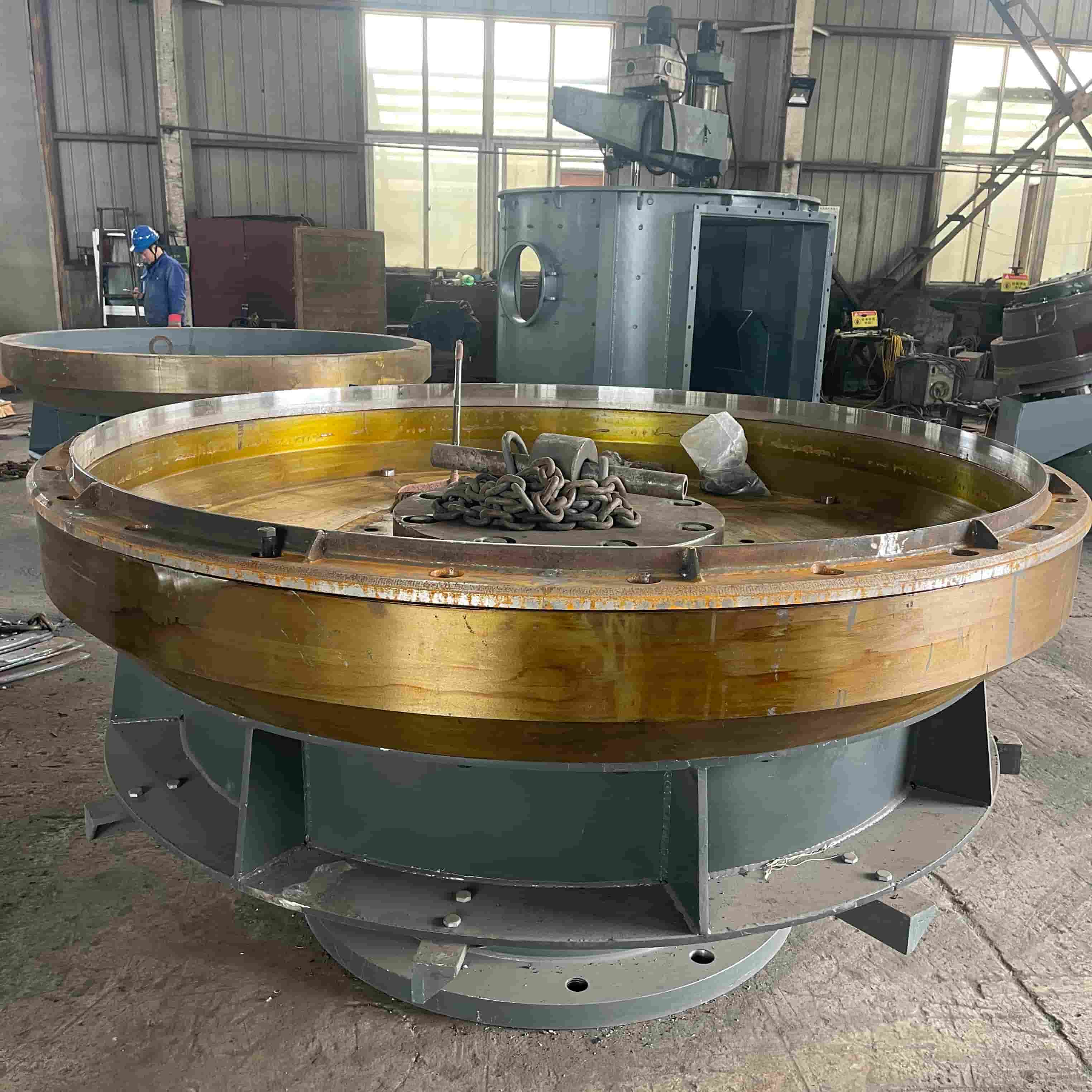

- Low Wear & High Stability: Optimized roller and disc structure reduces component wear, ensuring long continuous running time and minimal maintenance frequency.
- Environmentally Friendly Operation: Equipped with pulse bag dust collector, the whole system runs with low noise and zero dust leakage, meeting international environmental protection standards.
- Customized Turnkey Solution: Supports small, medium and large capacity configurations to match different production output requirements.
Technical Parameters (non-metallic minerals, chemical industry, etc.)
|
Model specification |
HVM800X |
HVM1250X |
HVM1300X |
HVM1500X |
HVM1700X |
HVM1900X |
HVM2400X |
HVM2800X |
|
|
Capacity |
1~3 t/h |
2~7 t/h |
3~10 t/h |
4~15 t/h |
6~22 t/h |
7.5~25 t/h |
9~38 t/h |
11~45 t/h |
|
|
Grinding material moisture |
≤5% |
||||||||
|
Product fineness |
（10~40um）97% |
||||||||
|
Product moisture |
≤1% |
||||||||
|
Main Motor Power |
55 kW |
132 kW |
180 kW |
250 kW |
355/400 kW |
450 kW |
560/630 kW |
710 kW |
|
|
Description |
Note: 1. The above technical indicators are based on materials with Mohs hardness of 3~4. |
||||||||
Vertical Grinding System Process
Raw materials are elevated into a silo, then fed into a vertical roller mill for grinding and drying. Qualified fine powder is separated via a classifier and cyclone, while coarse powder returns for regrinding. Exhaust gas is purified by a bag filter before emission. Finished powder is stored in a silo, ready for packaging or dispatch.
Project Cases
 |
 |
|

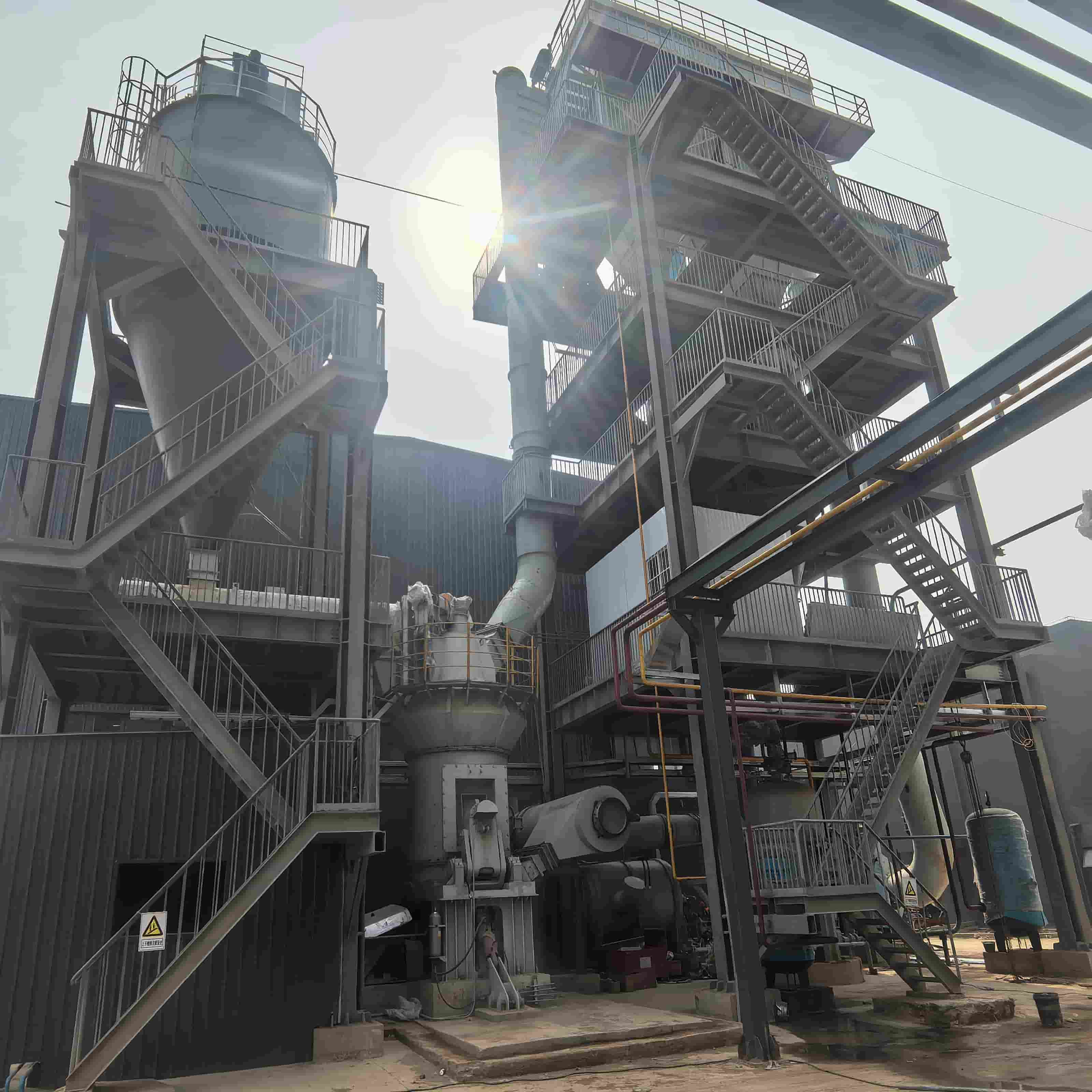

★ Project Name: GYPMAN TECH COMPANY LIMITED 20–25 TPH Vertical Mill Gypsum Powder Preparation System
|
|
Gypsum Grinding Mill Technical Features
- Fully automatic PLC control system, easy operation and unattended running
- Wide adjustable fineness range for diversified gypsum powder applications
- Complete sealing structure, low dust and high environmental protection level
- Compact layout, small floor space and convenient installation
- High production efficiency and stable continuous production capacity
We provide:
- Free quotation
- Customized solutions
- Detailed technical parameters and catalogs
- On-site installation, commissioning, and after-sales support
Contact us now to get the best price and professional support for your gypsum grinding project!
