Long Distance Pneumatic Conveying Bin Pump

Long Distance Pneumatic Conveying Bin Pump

Our Dense Phase Pneumatic Conveying Bin Pump is a professional bulk material conveying equipment designed for efficient, dust-free and long-distance transfer of powders, granules and bulk materials such as fly ash, cement, mineral powder and chemical additives. With high pressure resistance, low energy consumption and stable operation, it solves the pain points of material leakage, high maintenance cost and low conveying efficiency for industrial customers worldwide.

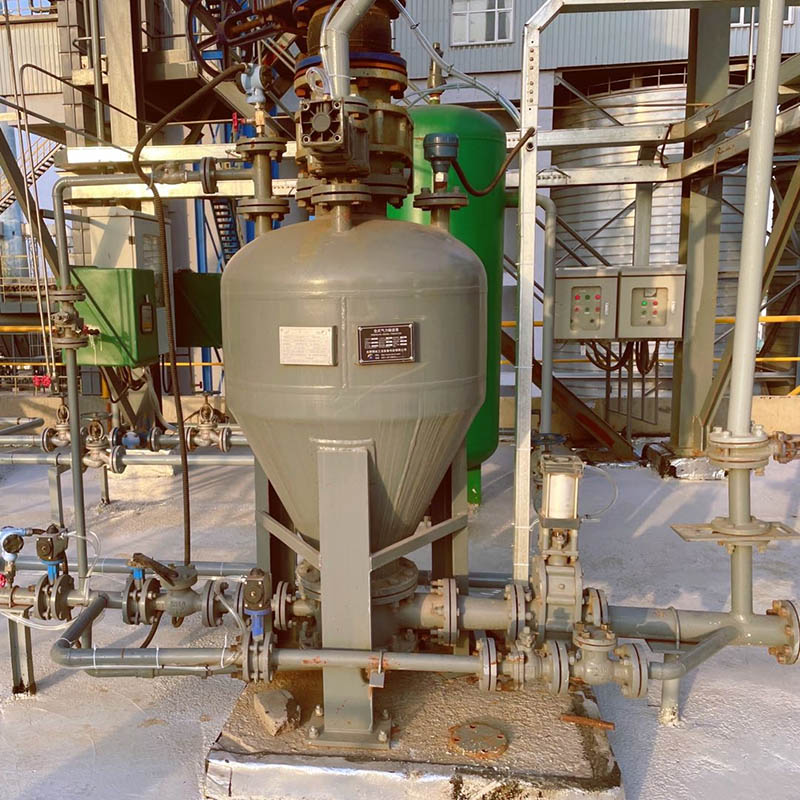

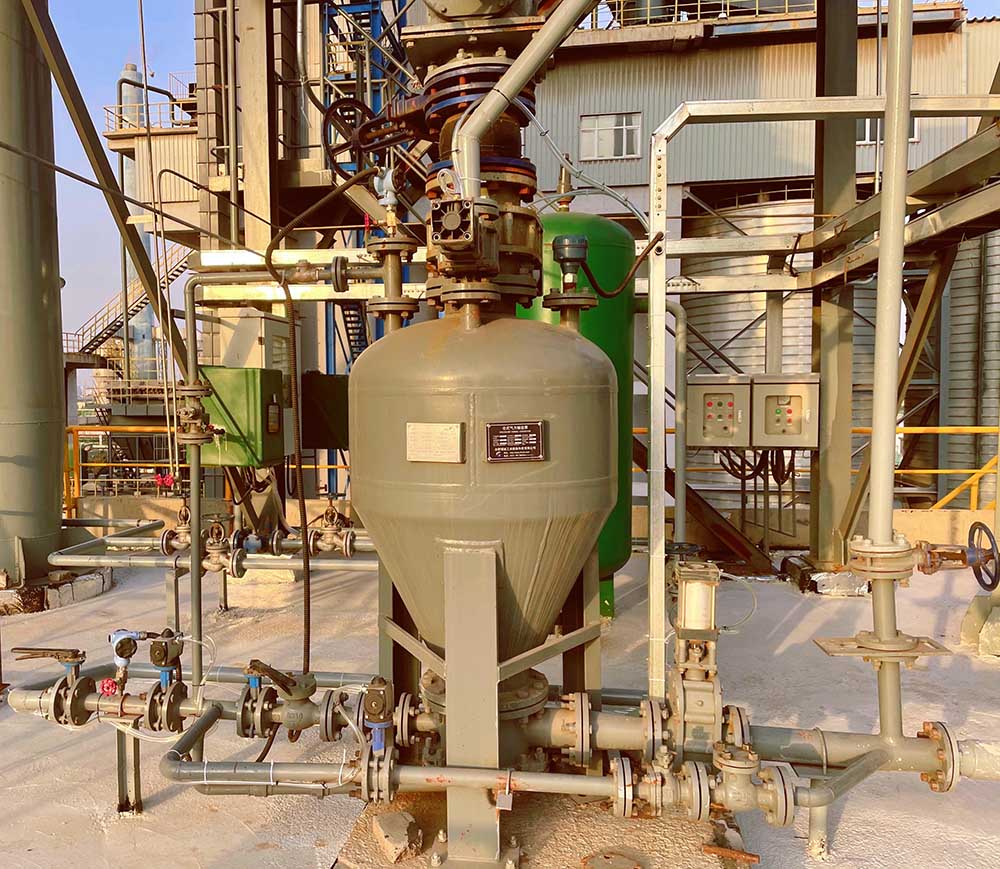

The Dense Phase Pneumatic Conveying Bin Pump (also called Dense Phase Bin Pump) is a key equipment in positive pressure pneumatic conveying systems. It adopts a pressure vessel structure, which can store and convey materials in batches or continuously, and is widely used in power plants, cement plants, metallurgical factories, chemical plants and other industries. Compared with traditional conveying equipment, our bin pump has the advantages of compact structure, small floor space, easy installation and full automation, which greatly reduces labor costs and improves production efficiency.

Core Features & Customer Benefits：

- High Efficiency & Energy Saving: Advanced dense phase tech, 20–30% less energy, 95%+ conveying efficiency, less material waste.

- Dust-Free & Eco-Friendly: Closed system, no leaks or dust, meets global environmental standards.

- Long Distance & High Pressure: 0.7MPa pressure, 500m distance, 80m lift, fits complex sites.

- Wear-Resistant & Durable: Ceramic or stainless steel (304/316) lining, 50% longer life than standard pumps.

- Automatic & Easy Operation: PLC control with auto feeding, conveying, discharge & fault alarm; no specialist needed.

- Custom Design: Tailored solutions based on material properties, distance & site space.

Application Fields​

Our Dense Phase Pneumatic Conveying Bin Pump is widely used for bulk material handling in complex environments, including:

- Power industry: Fly ash, bottom ash, coal powder

- Building materials: Cement, clinker, gypsum, lime powder

- Metallurgy: Mineral powder, metallurgical dust, slag

- Chemical industry: Chemical powder, plastic resin, additives

- Grain & food: Grain, seeds, flour, starch

Normal specification pneumatic conveying bin pump parameter table

Small specification pneumatic conveying bin pump parameter table

Long-distance pneumatic conveying bin pump parameter table

Large conveying capacity pneumatic conveying bin pump parameter table

Conveying material	Bulk weight (t/m³)	Model	PCD24/H	PCD26/H	PCD28/H	PCD30/H	Reference transport distance
		Specification	16~20m³	18~22m³	20~27m³	26~32m³	Horizontal (m)	Horizontal (m)
Pulverized coal	0.5	Delivery volume (t/h)	50~80	60~90	65~110	80~130	200	20
Fly ash	0.75		75~125	85~130	95~160	125~190	200	20
Limestone powder / mineral powder	0.8		80~130	90~140	100~170	130~200	200	20
Cement/raw material	1.0		100~150	115~175	130~215	165~260	200	20















Case

★ Scope of Work: Design and equipment manufacturing supply for 1 set of PCD08/M type limestone powder pneumatic conveying system   ★ Conveying Capacity: ≥3t/h   ★ Horizontal Distance: 30m   ★ Vertical Height: 30m



FAQ

- Q: What materials can the bin pump convey?

  A: It can convey various dry powders, granules, and bulk materials with a particle size ≤5mm, such as fly ash, cement, mineral powder, and chemical powders. Customized designs are available for special materials.



- Q: How long is the delivery time?

  A: Standard products have a delivery time of 15–30 days. Customized products typically take 30–45 days, depending on the design and production cycle.



- Q: Do you provide installation and training services?

  A: Yes, we provide on-site installation guidance, commissioning, and operator training to ensure smooth operation of the equipment.
