High Efficiency Gypsum Vertical Roller Mill Production Line

High Efficiency Gypsum Vertical Roller Mill Production Line

1. Product Overview

As a professional manufacturer of industrial powder‑grinding systems, we supply advanced Vertical Roller Mills (VRM) custom‑developed for gypsum powder production. The complete grinding production line features high output of 5‑50 t/h and outstanding energy‑saving performance, cutting power consumption by 30%‑50% compared with traditional mills. It can produce ultra‑fine powder with fineness up to 600 mesh or finer. With stable operation and low maintenance costs, the equipment is well‑suited for continuous, large‑scale industrial processing.

What Is Gypsum Powder Grinding System?

A gypsum powder production line processes natural dihydrate gypsum ore or industrial‑by‑product gypsum (such as desulfurized gypsum and phosphogypsum) via grinding and calcination under controlled temperature. During this procedure, dihydrate gypsum undergoes dehydration and decomposition to yield β‑hemihydrate gypsum (CaSO₄·1/2H₂O) as its main component, which is widely known as building gypsum.

A full‑fledged production system generally consists of the following sections:

• Crushing Stage: Raw gypsum ore is first crushed into small‑sized particles by a crusher for subsequent grinding.
• Grinding Stage: The crushed gypsum material is fed into a grinding mill for fine pulverization. Frequently‑adopted grinding equipment includes ball mills, Raymond mills, vertical roller mills and ultra‑fine grinding mills.
• Classification Stage: The classifier regulates particle‑size distribution by separating fine powder from coarse granules, so as to guarantee stable and consistent product quality.
• Dust Collection Stage: A dust collector traps fugitive dust produced in the grinding process, creating a clean, safe working environment.
• Packaging Stage: After the gypsum powder reaches the required fineness, finished products will be packaged for storage and shipment.

Technical Parameters  (non-metallic minerals, chemical industry, etc.)

Vertical Grinding System Process

Raw materials are elevated into a silo, then fed into a vertical roller mill for grinding and drying. Qualified fine powder is separated via a classifier and cyclone, while coarse powder returns for regrinding. Exhaust gas is purified by a bag filter before emission. Finished powder is stored in a silo, ready for packaging or dispatch.

Project Cases

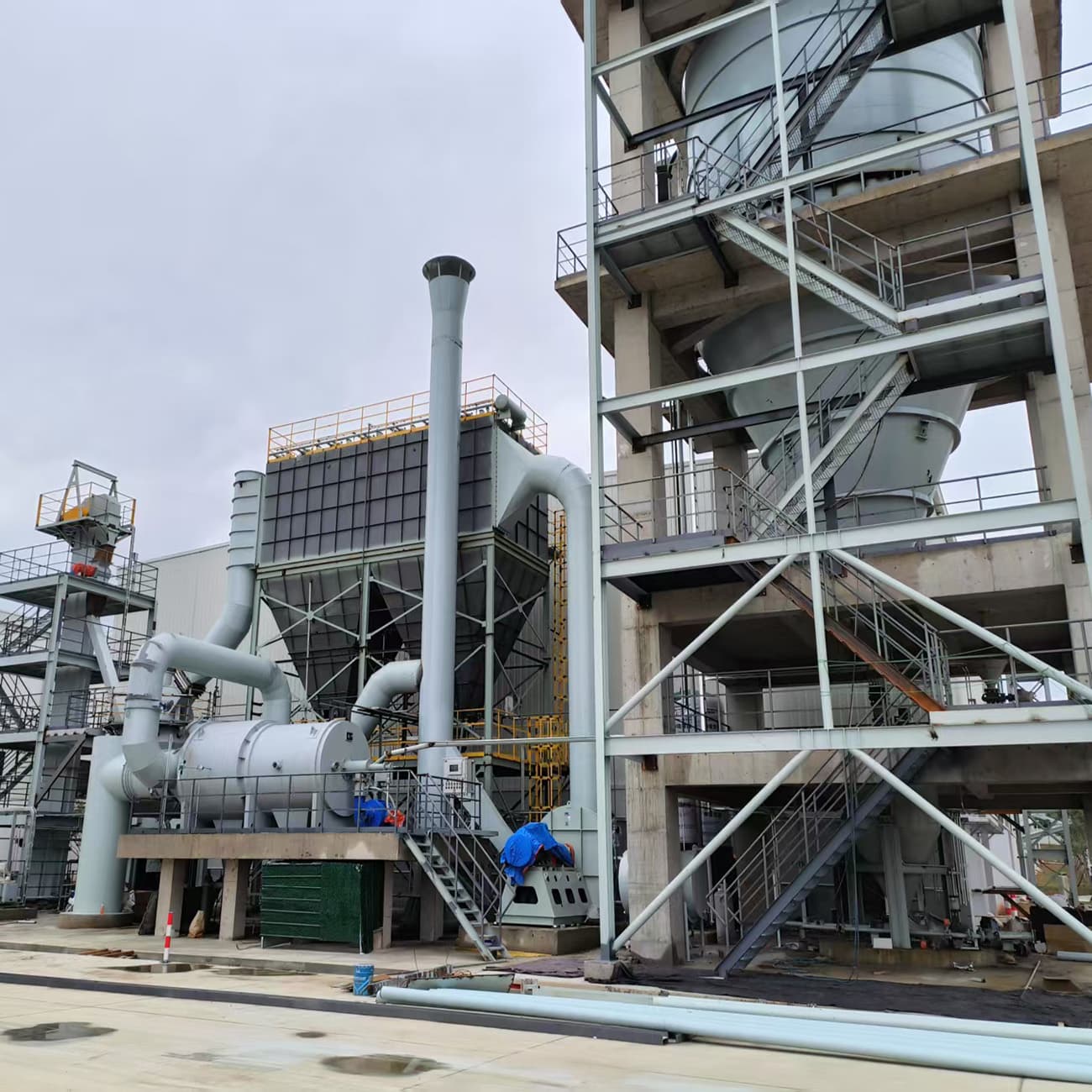

★ Project Name: GYPMAN TECH COMPANY LIMITED 20–25 TPH Vertical Mill Gypsum Powder Preparation System ★ Material Type: Natural Gypsum ★ Output: ≥20 t/h ★ Product Fineness: 85% Passing 200 Mesh ★ Commissioning Date: 2024



Applications

Gypsum powder is widely used across multiple industries.

- Construction: Production of building gypsum, plaster and drywall

- Cement Industry: Cement additive, desulfurization agent

- Chemical Industry: Chemical fillers and industrial raw‑material supplies

- Agriculture: Soil conditioner and fertilizer additive

- Food & Pharmaceutical industries: Food additives and pharmaceutical fillers

Why Choose Us?

- 20+ Years of experience in milling‑equipment manufacturing and grinding‑solution design

- Complete production chain covering casting, welding, machining and assembly

- Professional engineering team delivering customized solutions tailored to your specific requirements

- Comprehensive after‑sales service: installation guidance, commissioning, operator training and lifetime technical support

- Global export experience, serving clients throughout Southeast Asia, Africa, the Middle East and South America



- ISO & CE certifications to guarantee compliance with international quality standards

We provide:

- Free quotation

- Customized solutions

- Detailed technical parameters and catalogs

- On-site installation, commissioning, and after-sales support

Contact us now to get the best price and professional support for your gypsum grinding project!
