Industrial Dense Phase Pneumatic Conveying Vessel Pump

Our dense phase pneumatic conveying vessel pump system is engineered for reliable, high-efficiency transfer of bulk powders and granular materials, delivering stable conveying performance with minimal maintenance to reduce your overall operating costs.

Item No :
Pneumatic conveying bin pump
Order(MOQ) :
1
Payment :
Negotiation
Product Origin :
Hefei,China
Color :
Customize
Shipping Port :
Negotiation
Lead Time :
Negotiation
Weight :
Based on actual

Inquiry now

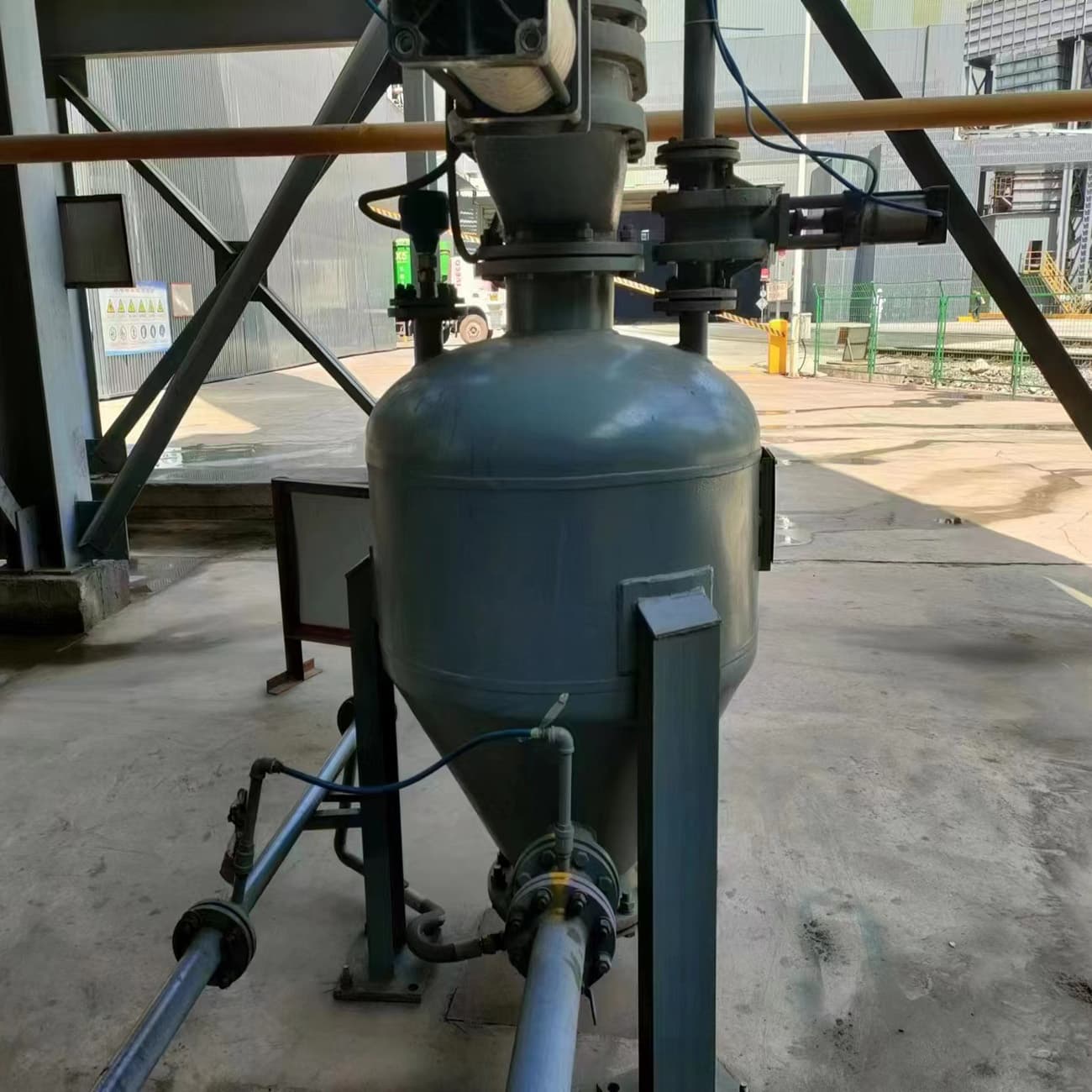

Industrial Dense Phase Pneumatic Conveying Vessel Pump

Our HCPCD chamber pump is the core conveying equipment for positive pressure liquid-phase pneumatic conveying. It uses compressed gas of 0.5-0.7MPa as the conveying power source, and the solid gas ratio during conveying can reach 25-50kgkg. The maximum distance for a single conveying can reach 1500 meters. The conveying scheme of the pressure tank pump adopts a high-pressure and low-speed operation mode, which can minimize material crushing, reduce pipeline wear, and significantly reduce energy consumption.

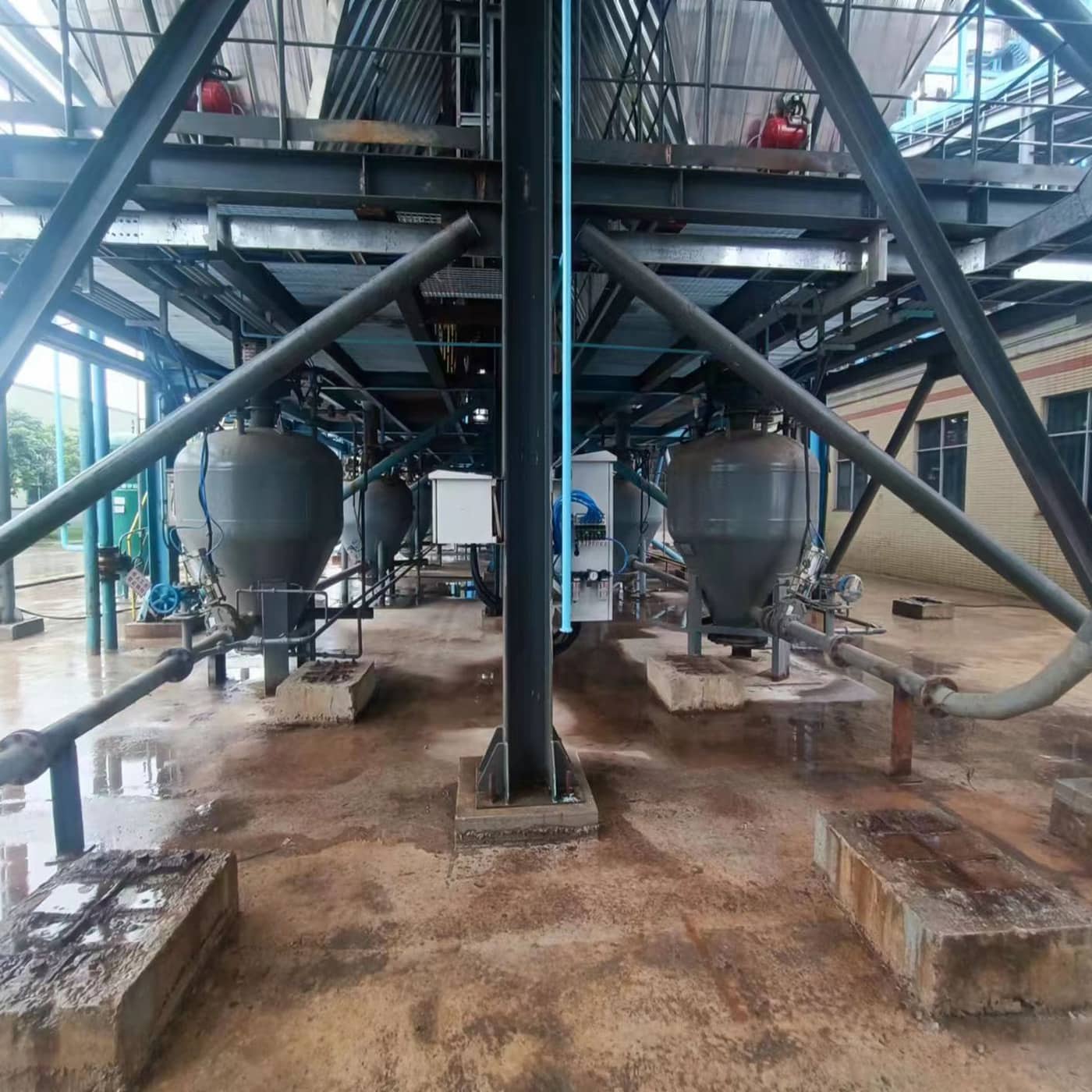

Bin Pump Pneumatic Conveying

Working Principle

This system runs on intermittent batch‑mode operation with four sequential steps:

Filling

Inlet and vent valves open; material gravity‑feeds into the vessel. Filling stops automatically upon level sensor trigger or preset time‑out.

Pressurization

Inlet and vent valves close. High‑pressure compressed air fills the vessel to build conveying pressure.

Conveying

The discharge valve opens. Materials travel through the pipeline via dense‑phase slug flow to the receiving silo.

Purging

Falling pressure signals an empty vessel. Air supply shuts off; residual air purges the pipeline to avoid blockages.

Normal specification pneumatic conveying bin pump parameter table

Conveying material	Bulk weight (t/m³)	Model	PCD18/N	PCD20/N	PCD22/N	Reference transport distance
Conveying material	Bulk weight (t/m³)	Specification	5.0~6.7m³	7.0~10.0m³	10.0~15.0m³	Horizontal (m)	Vertical (m)
Pulverized coal	0.5	Delivery volume (t/h)	12~20	16~32	25~50	500	30
Fly ash	0.75		18~32	25~48	35~70	50
Limestone powder / mineral powder	0.8		20~35	26~51	38~75	500	30
Cement/raw material	1.0		24~42	32~65	48~95	500	30
Silicon powder	1.2		28~50	40~75	55~115	500	30

Small specification pneumatic conveying bin pump parameter table

Conveying material	Bulk weight (t/m³)	Model	PCD08/M	PCD10/M	PCD12/M	PCD14/M	Reference transport distance
Conveying material	Bulk weight (t/m³)	Specification	0.2~0.5m³	0.6~1.6m³	1.5~2.5m³	2.5~5.0m³	Horizontal (m)	Vertical (m)
Pulverized coal	0.5	Delivery volume (t/h)	0.5~1.8	1.5~5.5	5.0~9.0	8.0~18.0	100	20
Fly ash	0.75		0.9~2.8	2.5~8.5	7.0~14.0	12.0~27.0	100	20
Limestone powder / mineral powder	0.8		1.0~3.0	3.0~9.0	8.0~15.0	12.0~28.0	100	20
Cement/raw material	1.0		1.2~3.5	3.5~11.5	10.0~18.0	16.0~36.0	100	20
Silicon powder	1.2		1.5~4.0	4.5~13.5	12.0~20.0	19.0~43.0	100	20

Long-distance pneumatic conveying bin pump parameter table

Conveying material	Bulk weight (t/m³)	Model	PCD24/L	PCD26/L	PCD28/L	PCD30/L	Reference transport distance
Conveying material	Bulk weight (t/m³)	Specification	16~20m³	18~22m3	20~27m³	26~32m³	Horizontal (m)	Horizontal (m)
Pulverized coal	0.5	Delivery volume (t/h)	20~40	25~45	30~55	45~65	1000	25
Fly ash	0.75		35~60	45~65	45~80	65~95	1000	25
Limestone powder / mineral powder	0.8		40~65	45~70	50~85	70~100	70~100	1000	25
Cement/raw material	1.0		50~80	55~90	65~110	90~120	1000	25

Large conveying capacity pneumatic conveying bin pump parameter table

Conveying material	Bulk weight (t/m³)	Model	PCD24/H	PCD26/H	PCD28/H	PCD30/H	Reference transport distance
Conveying material	Bulk weight (t/m³)	Specification	16~20m³	18~22m³	20~27m³	26~32m³	Horizontal (m)	Horizontal (m)
Pulverized coal	0.5	Delivery volume (t/h)	50~80	60~90	65~110	80~130	200	20
Fly ash	0.75		75~125	85~130	95~160	125~190	200	20
Limestone powder / mineral powder	0.8		80~130	90~140	100~170	130~200	200	20
Cement/raw material	1.0		100~150	115~175	130~215	165~260	200	20

Applications
Our dense‑phase pneumatic vessel pump sets the industry benchmark for power plant fly‑ash handling and cement plant raw‑meal conveying.
Widely deployed across additional sectors:
- Metallurgy & Mining: Mineral powder, silica, alumina
- Chemical Industry: Diverse powdered chemical raw materials
- Food & Pharmaceutical: Sugar, starch, powder additives ‑ custom configurations available

If you are interested in our Dense Phase Pneumatic Conveying Bin Pump, or need a customized conveying solution according to your actual needs, please contact us immediately. Our professional team will reply to you within 24 hours and provide you with detailed product information and quotation.
