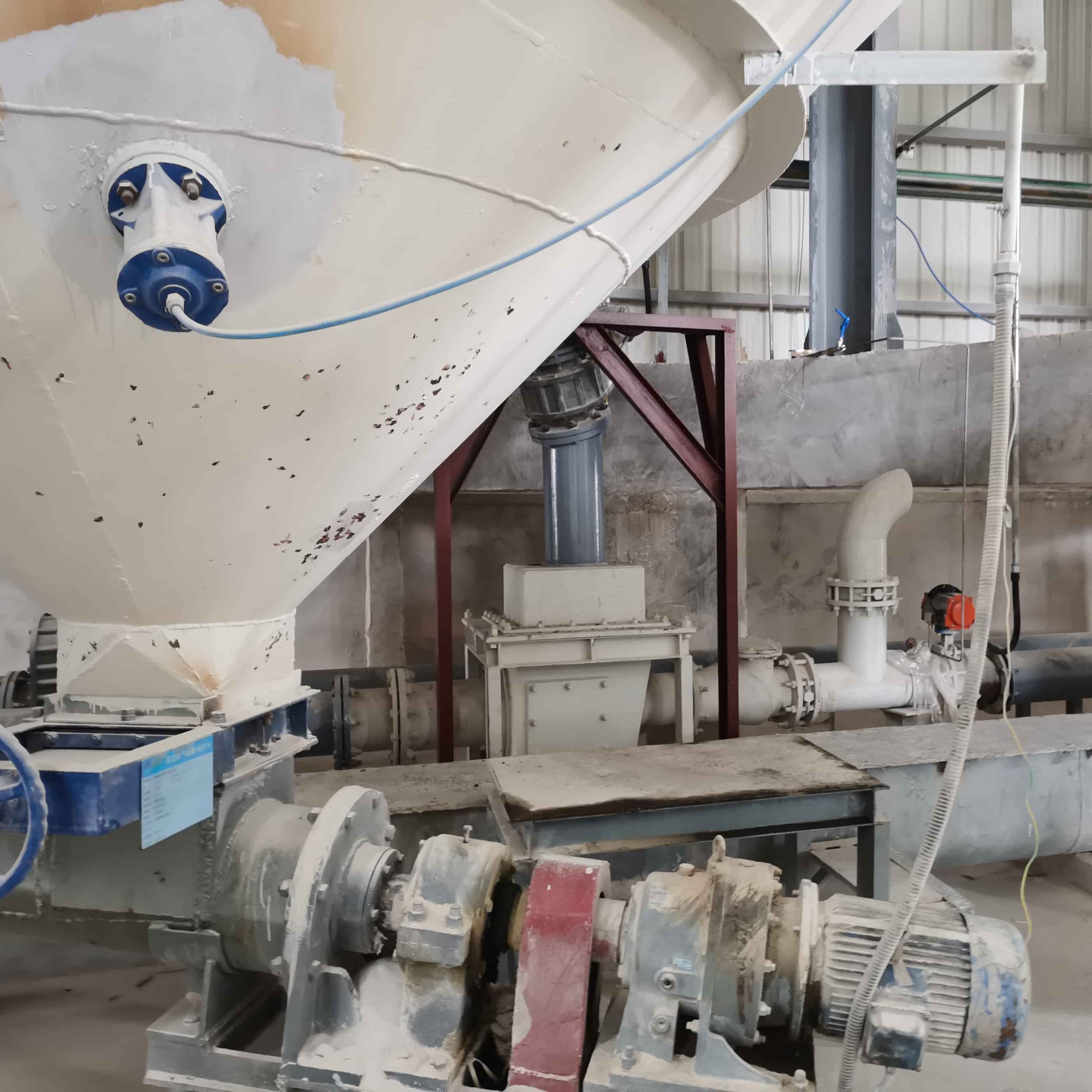

High Efficiency Pneumatic Conveying Jet Pump

PJP type positive pressure dilute phase pneumatic conveying jet pump

Working Principle

Material enters the jet pump body through the inlet. When compressed air is ejected at high velocity through the nozzle, the resulting high-speed airflow creates a negative pressure (vacuum) inside the pump chamber. The material within the chamber is then easily entrained and mixed with the high-velocity air stream. As the mixture passes through the diffuser (expansion tube), the kinetic energy of the high-speed airflow is gradually converted into static pressure, which pushes the powder or granular material through the conveying pipeline to the final destination.

Applicable Materials & Industries

Common Conveyable Materials

Fly ash, cement powder, slag micro powder, lime powder, gypsum powder, coal dust, alumina powder, quartz sand, granular mineral raw materials

Main Application Industries

• Power plant: Boiler fly ash desulfurization ash conveying
• Cement plant: Raw meal, clinker powder, slag powder transport
• Metallurgy: Mineral powder, smelting ash sealed delivery
• Chemical industry: Dry chemical powder, non-corrosive granular material
• Building materials: Gypsum, limestone, filler powder silo discharge
• Food grade (SS304): Starch, flour, feed additive powder

Case

★ Project Scope: Design, manufacturing, and supply of one set of PJP-3 jet pump fly ash pneumatic conveying system ★ Conveying Capacity: 45 t/h ★ Horizontal Conveying Distance: 110 m ★ Vertical Height: 20 m

Why Choose Us?

- Manufacturing Qualifications – PJP jet pumps are produced under strict quality control, with ISO certification and patent certificates.

- Customized Engineering – Tailored solutions based on your material properties (particle size, density, moisture content, abrasiveness). Options available in carbon steel, stainless steel, or cast iron.

- Complete System Supply – We supply not only jet pumps but also entire systems: Roots blowers, rotary airlock valves, piping, filter receivers/cyclone separators, and PLC control panels.

- Proven Track Record – Hundreds of PJP systems successfully operating in cement plants, power stations, and chemical facilities worldwide.

- Technical Support – On-site commissioning, operator training, and lifelong technical support.

- Fast Delivery – 60–120 days lead time, with standard sea-worthy packaging.
