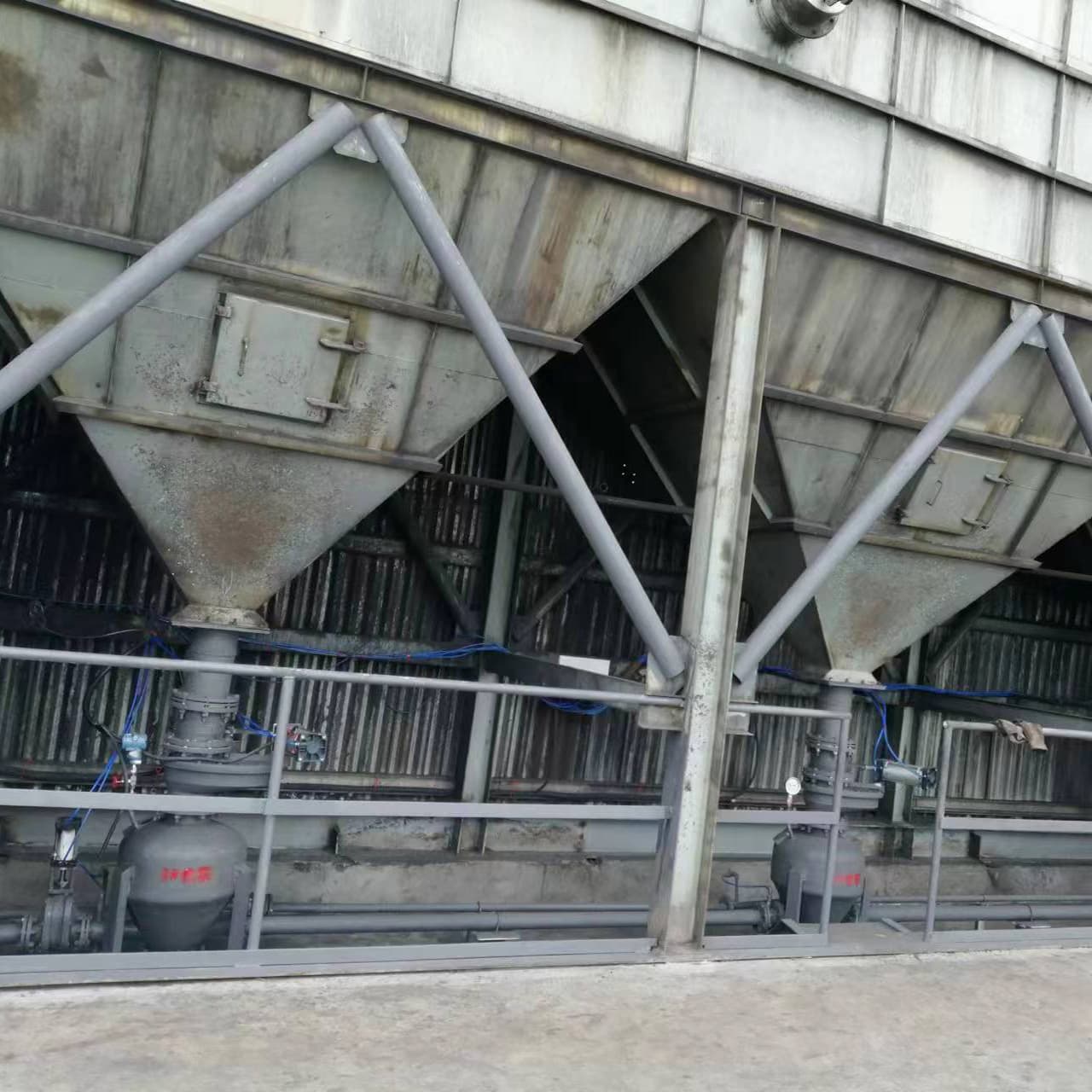

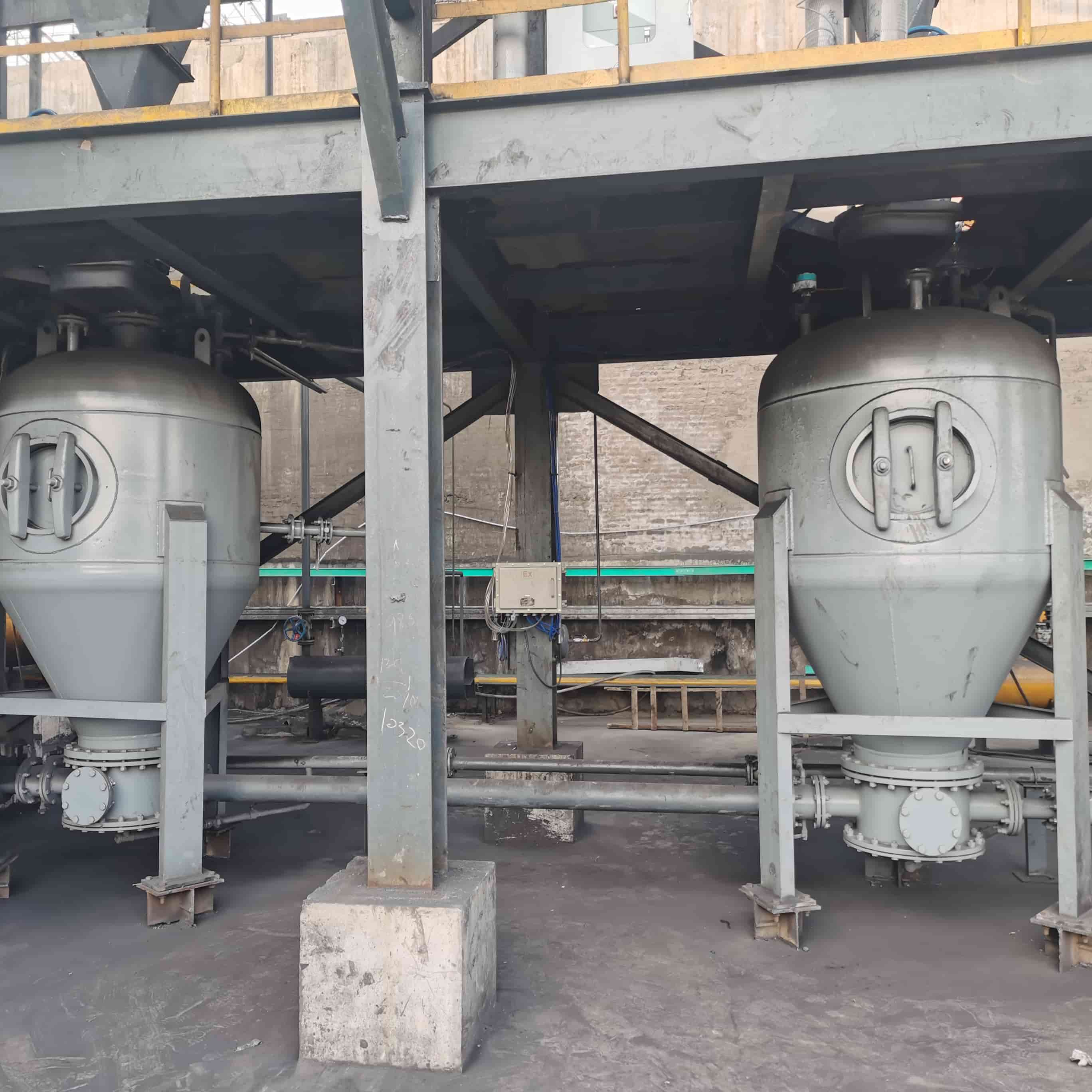

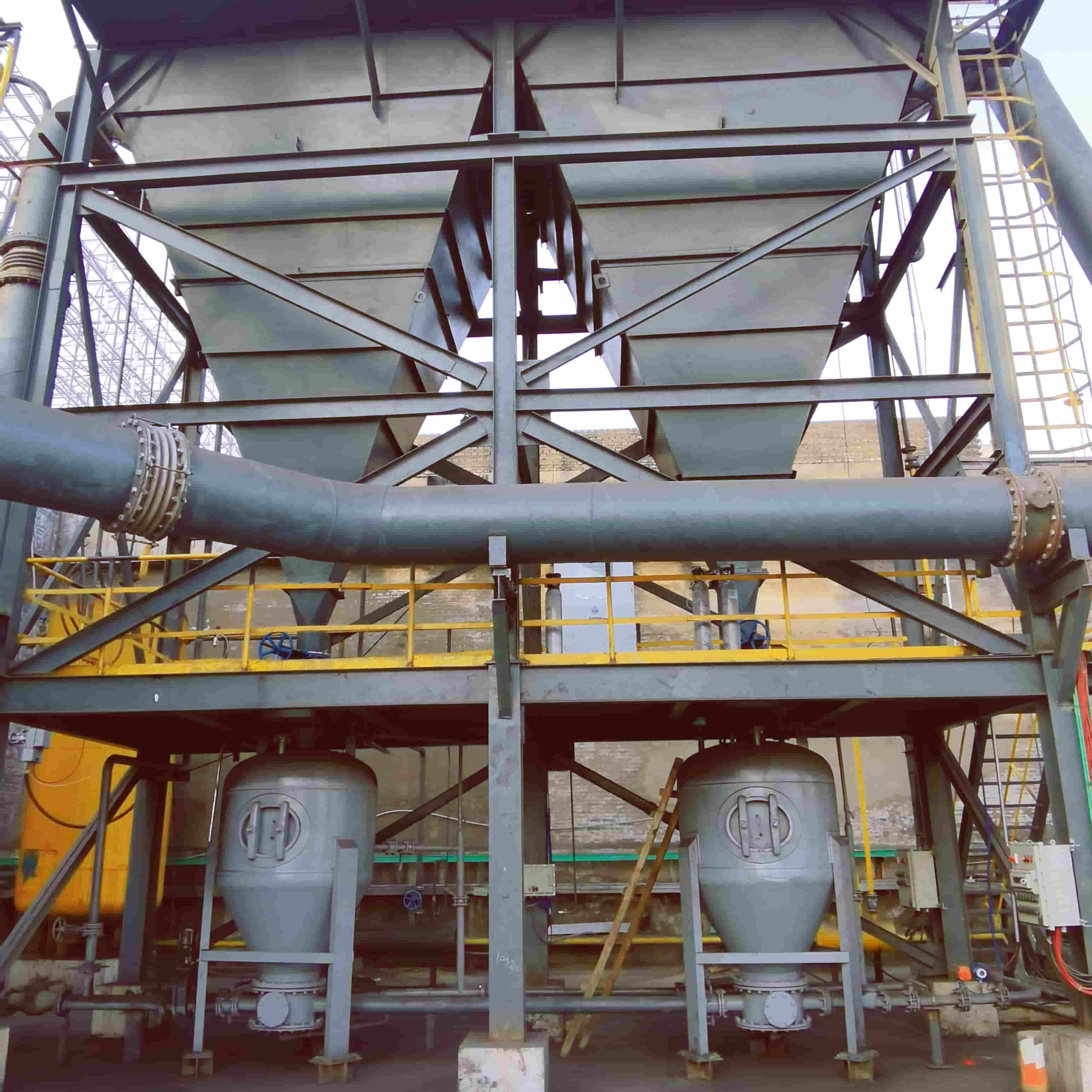

High Capacity Dense Phase Bin Pump

High Capacity Dense Phase Bin Pump

Our dense phase pneumatic conveying bin pump, also named pressure sending tank, is core equipment for bulk dry powder closed transportation. The volume of the pump is determined based on the properties, particle size, conveying distance, and conveying capacity of the material. This means each unit is custom-designed to meet the process requirements while minimizing energy consumption. Full automatic PLC control realizes batch stable feeding, no dust leakage, low air consumption and long conveying distance. Widely applied in power plants, cement factories, metallurgy, chemical and mining industries.

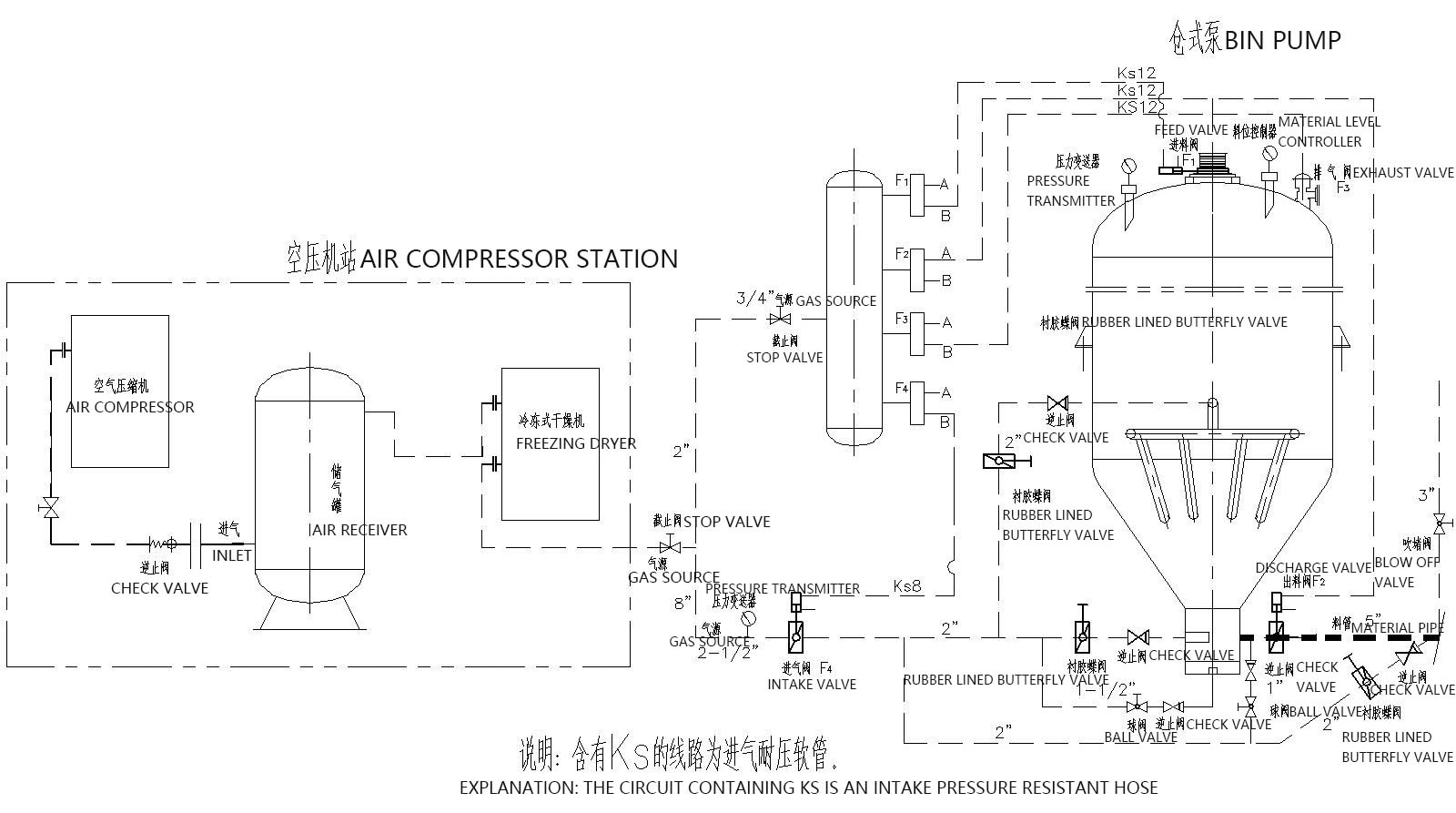

The pneumatic conveying bin pump operates in intermittent circulation mode with four working phases:

Phase 1: Feeding

The feeding valve and vent valve open simultaneously. Materials fall into the pump body by gravity until the level gauge (or time relay) sends a full-bin signal, then both valves close automatically.

Phase 2: Fluidization & Pressurization

The air inlet valve opens, and compressed air flows into the upper and lower parts of the tank. Air at the bottom passes through fluidizing devices (aeration plates or nozzle groups) to fluidize materials, while internal tank pressure rises gradually.

Phase 3: Conveying

When the tank pressure reaches the preset value, the discharge valve opens automatically. Fluidized materials are pushed by compressed air into the conveying pipeline, and delivered to the target silo in low-speed high-density plug flow, which greatly reduces pipeline abrasion.

Phase 4: Purging

After material conveying is completed, tank pressure drops. Compressed air keeps feeding for a period to purge the pipeline and eliminate residual materials. Afterwards, close the air inlet valve, shut off the discharge valve after delay, open the feeding valve and start the next circulation.

Normal specification pneumatic conveying bin pump parameter table

Small specification pneumatic conveying bin pump parameter table

Long-distance pneumatic conveying bin pump parameter table

Large conveying capacity pneumatic conveying bin pump parameter table

Core Advantages

✅ Dense Phase Low-speed Transport

Slow material flow speed, Initial speed 6–10 m/s; minimal pipe wear, extend pipeline service life greatly

✅ Fully Sealed Dust-free Operation

Totally closed conveying structure, zero flying dust, meet environmental emission standards

✅ Intelligent PLC Automatic Control

Unattended running, automatic feeding, pressurization, conveying and emptying cycle

✅ Strong Blockage Resistance

Optimized fluidization bed structure, smooth discharge even for sticky fine powder

✅ Wide Volume Custom Range

Standard volume 0.5m³ /1m³ /2m³ /4m³ /6m³ /10m³, customized tank size available

✅ Low Energy Consumption

Less compressed air demand compared with dilute phase conveying system, cut operation cost

Suitable Conveying Materials

• Cement & building material: Cement powder, slag powder, limestone powder, lime powder
• Metallurgy: Mineral powder, iron powder, furnace ash
• Chemical industry: Dry chemical powder, catalyst powder, filler powder
• Power industry: Fly ash, bottom ash, desulfurized gypsum powder
• Mining: Ore fine powder, quartz powder
